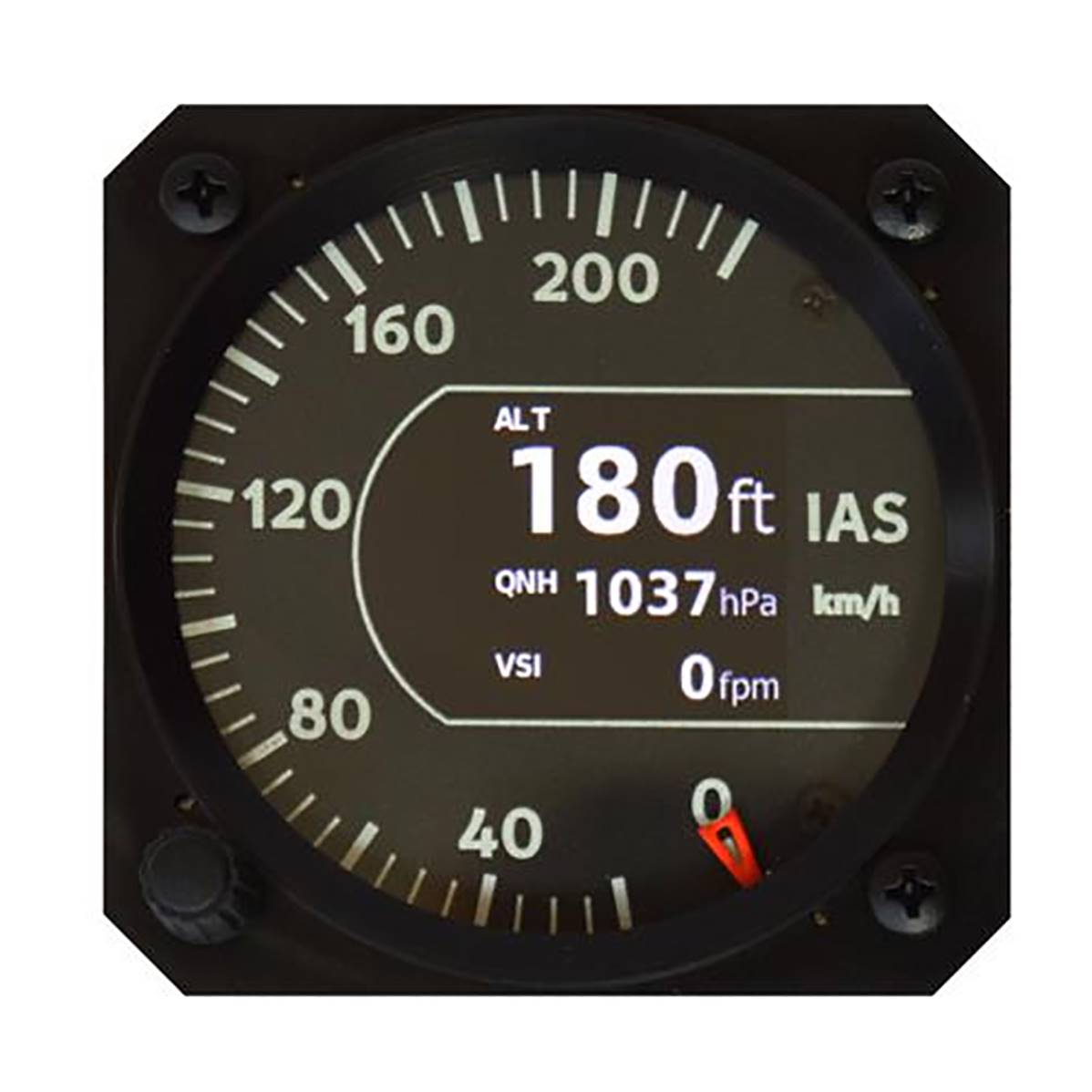

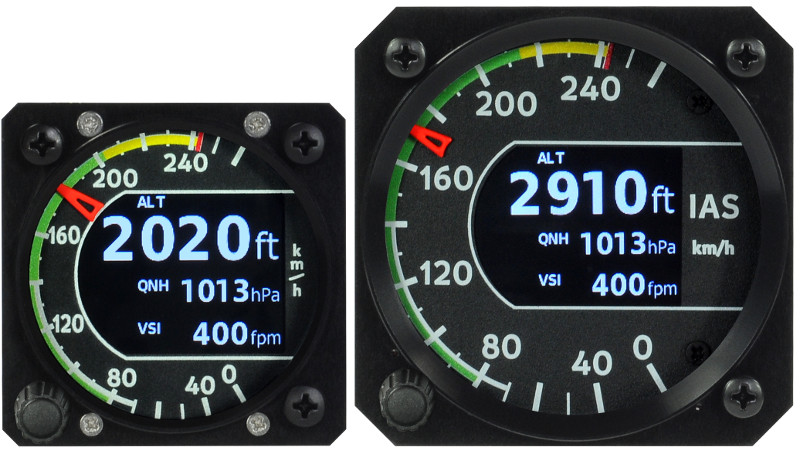

The KANARDIA Combo imitates the classic construction of an Altimeter, Anemometer and Variometer and combines it with advanced electronics. This allows a perfect and intuitive analog reading combined with the high precision of modern electronics for a weight of 210 grams in Ø 80 mm and 180 grams in Ø 57 mm.

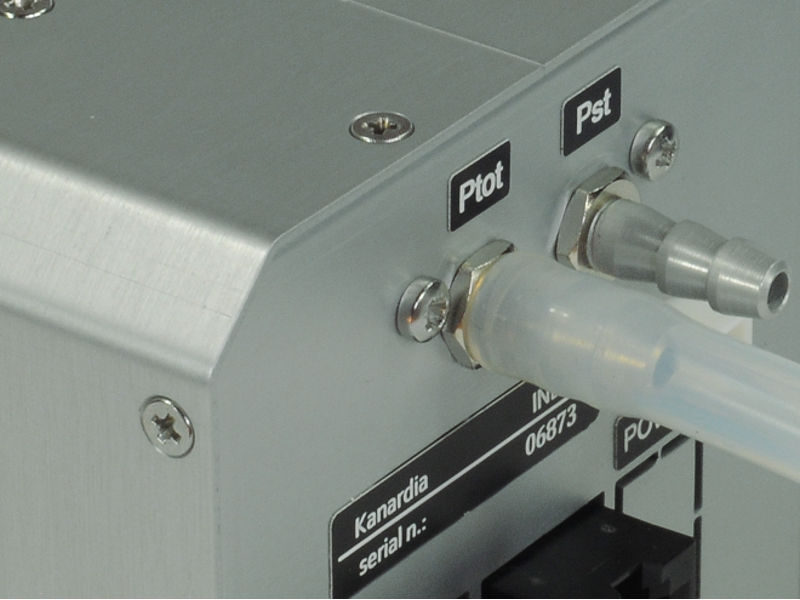

The Combo must be connected to the static pressure source. Located on the lateral surfaces of the fuselage or static port of the Pitot tube.

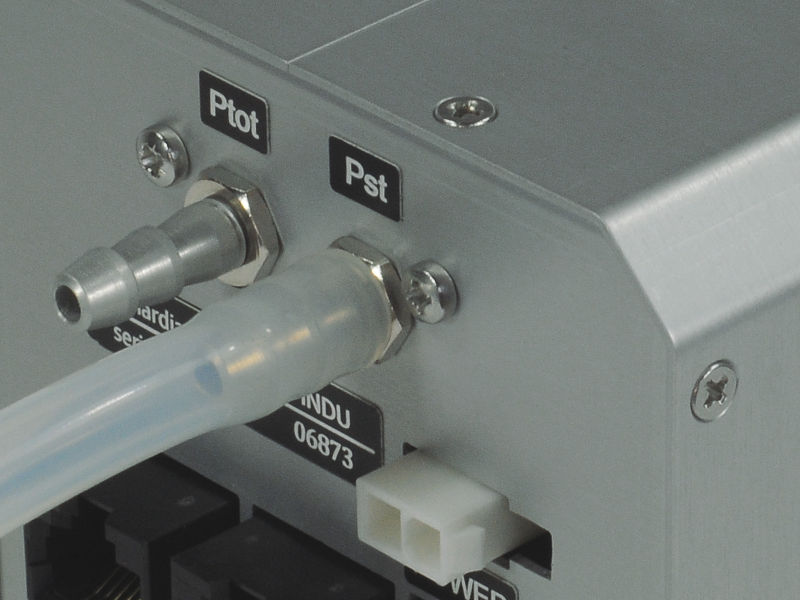

Connection to the dynamic socket (Pitot) to obtain speed information.

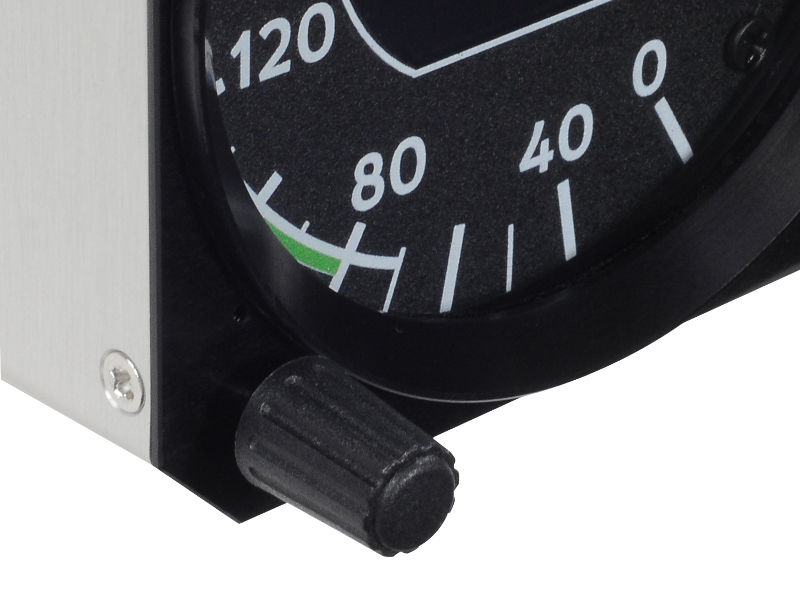

A rotary knob is used to adjust the barometric offset (QNH value).

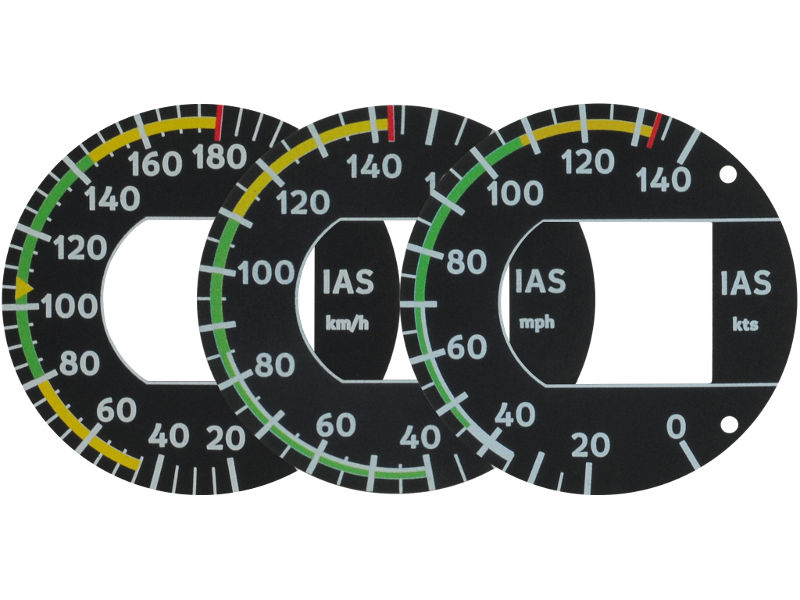

Scale made to measure for each order.

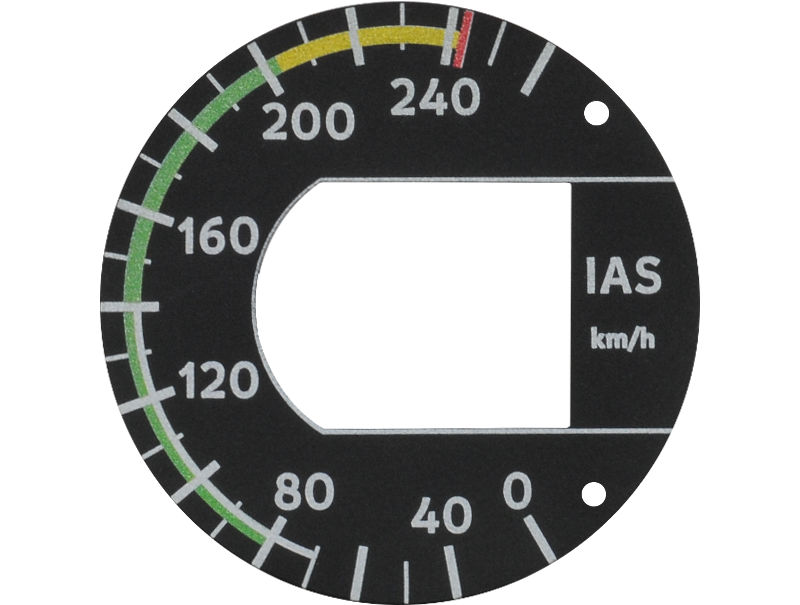

The display consists of a 230° scale with a colour LCD screen in the centre.

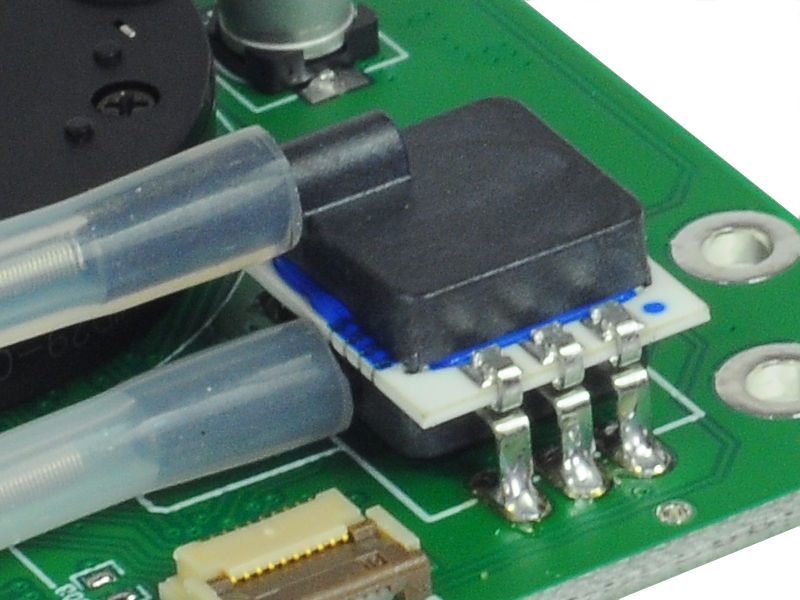

High-precision electronic differential pressure sensor. It provides dynamic pressure information in digital form.

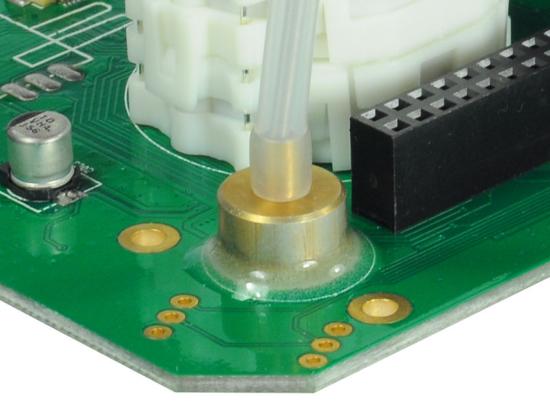

High-precision electronic barometric sensor, which provides static pressure information in digital form.
Weight:
Ø 80 mm = 210 gramsØ 57 mm = 180 grams
Dimension:
Ø 80 mm = 82 x 82 x 55 mm
Ø 57 mm = 62 x 62 x 45 mm
Power Supplu:
6 to 32 V
Consumption:
105 mA to 12 V
Power:
1,44 W
Operating temperature:
-30° to +85° C
Humidity:
30% to 90% non condensing
Drilling:
Ø standard 80 or 57 mm
Altitude scale:
-500 to 16000 m
-1500 to 50000 ft
Qnh:
590 to 1080 hPa
17,42 to 31,89 inHg
Barometric sensor:
24 bits, 10 to 1200 hPa, 20 cm resolution
Dynamic sensor:
12 bits, 0 to 50 hPa, 325 km/h, 0,1 km/h resolution
Display:
176 x 220 pixels, diagonal 2,0", 16 bits, Color
