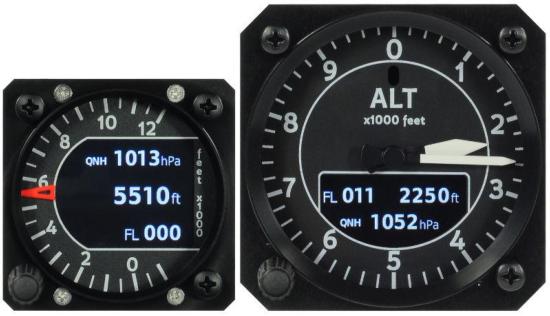

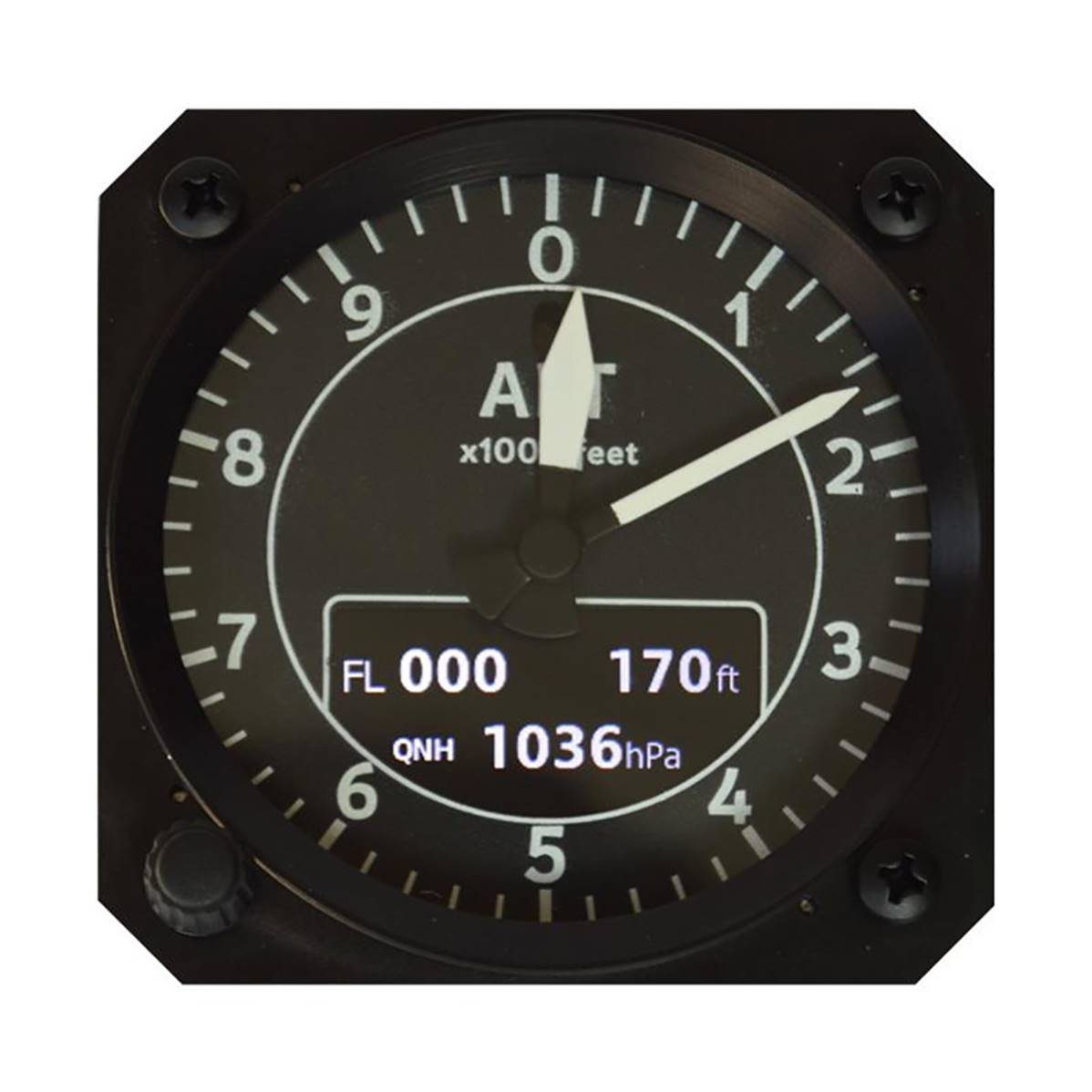

The KANARDIA altimeter imitates the construction of a conventional altimeter and combines it with state-of-the-art electronics, allowing a perfect and intuitive analogue reading combined with the high accuracy of modern electronics for a weight of 240 grams in Ø 80 mm and 180 grams in Ø 57 mm.

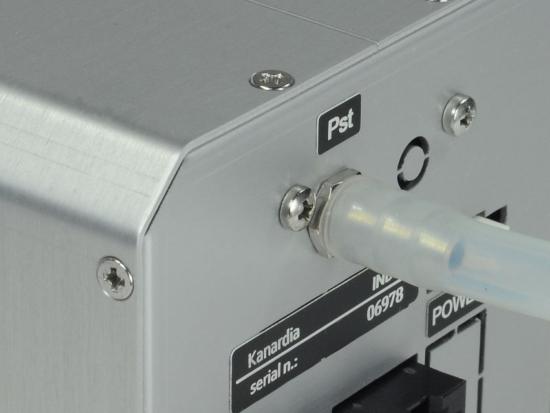

The altimeter must be connected to the static pressure source. Located on the lateral surfaces of the fuselage or static port of the Pitot tube.
High-precision electronic barometric sensor, which provides static pressure information in digital form.

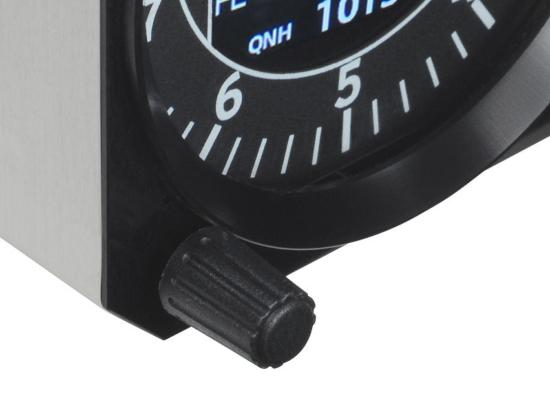

A rotary knob is used to adjust the barometric offset (QNH value).

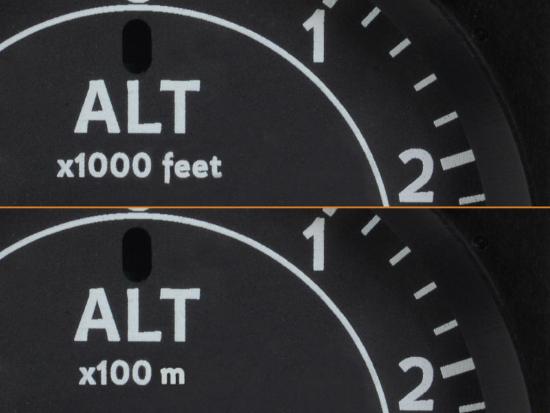

The instrument can be delivered with two different scales, one in feet and the other in meters.

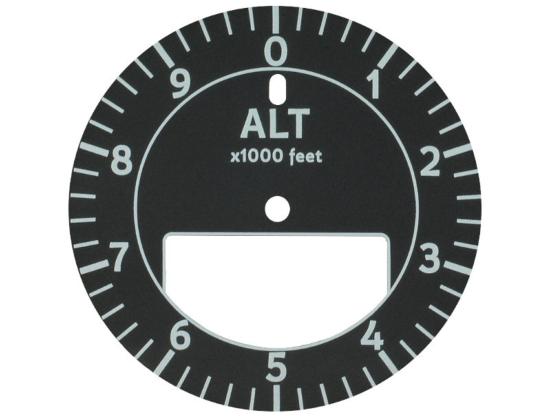

The large pointer operates at 1000 m (feet) per turn, 20 m (20 feet) markers, the small pointer operates at 10000 m (feet) per turn, 200 m (200 feet) marking.

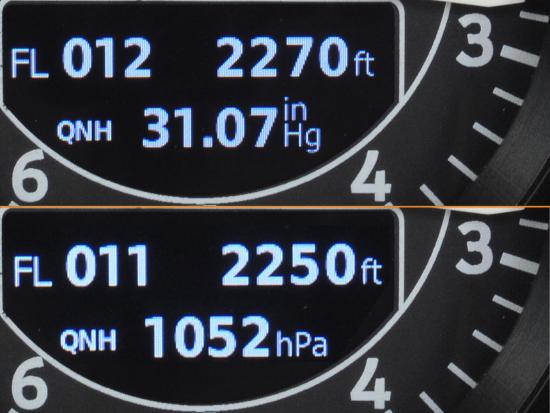

You can choose between hPa in the range of (590 - 1080) with a step in hPa and inHg in the range of (17.42 - 31.89) with a step in 0.01 inHg.
Weight:
Ø 80 mm = 240 gramsØ 57 mm = 180 grams
Dimension:
Ø 80 mm = 82 x 82 x 55 mm
Ø 57 mm = 62 x 62 x 45 mm
Power Supply:
6 to 32 V
Consumption:
120 mA to 12 V
60 mA to 24 V
Power:
1,44 W
Operating Temperature:
-30° to +85° C
Humidity:
30% to 90% non condensing
Drilling:
Ø standard 80 or 57 mm
Altitude Scale:
-500 to 16000 m
-1500 to 50000 ft
Qnh:
590 to 1080 hPa
17,42 to 31,89 inHg
Barometric Sensor:
24 bits, 10 to 1200 hPa,
resolution 20 cm
Display
176 x 220 pixels, diagonal 2,0", 16 bits, color
