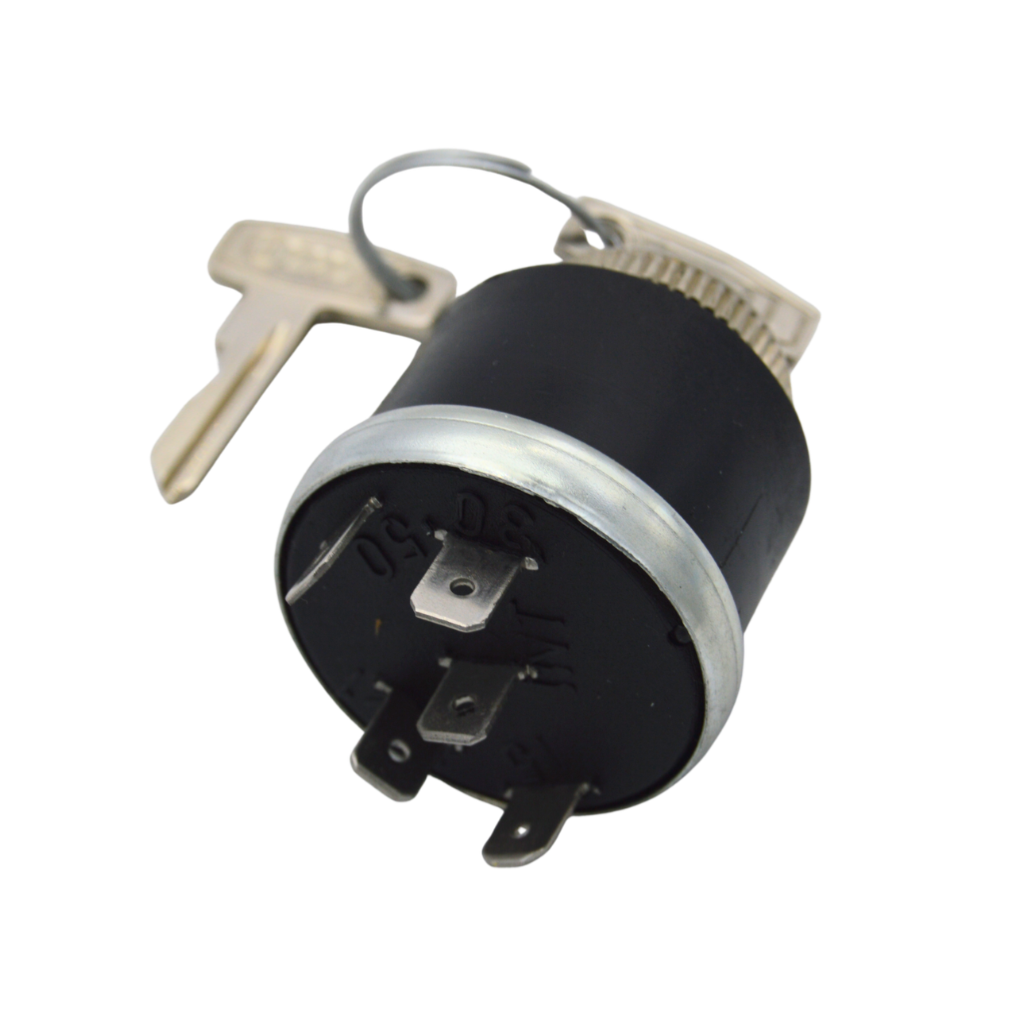

Key contactor 3 positions (Stop, power up and starter). Weight: 85g. INT Terminal: battery entry: Terminal 50; to the starter relay: Terminal 30; instruments alimentation: Terminal 15; separated circuit: Terminal 30/1 (for example for a lamp which indicates power-up). During the tensioning, contact between terminals “-30” and “-30/1”. During the start-up, contact between terminals “-30 – 50” and “-30/1”. Drilling diam: 22 mm
|
