IC-A25CE FR ICOM Mobile Certified Radio

Name: IC-A25CE FR ICOM Mobile Certified Radio
Brand: Icom
SKU: 81135-CEFR
Price: 799.24 EUR
Availability: InStock

Icom

(Code: 81135-CEFR)

In Stock

(2 Item(s) In Stock)

Aviation handheld VHF 108-136MHz, 6W PEP, graphic display, keyboard, 200 channels, 8.33 kHz spacing, IP57 waterproof. Meets MIL-STD810G standard. VHF E / R certified as main LSA on-board radio.

799.24 €

1800g

Add to cart

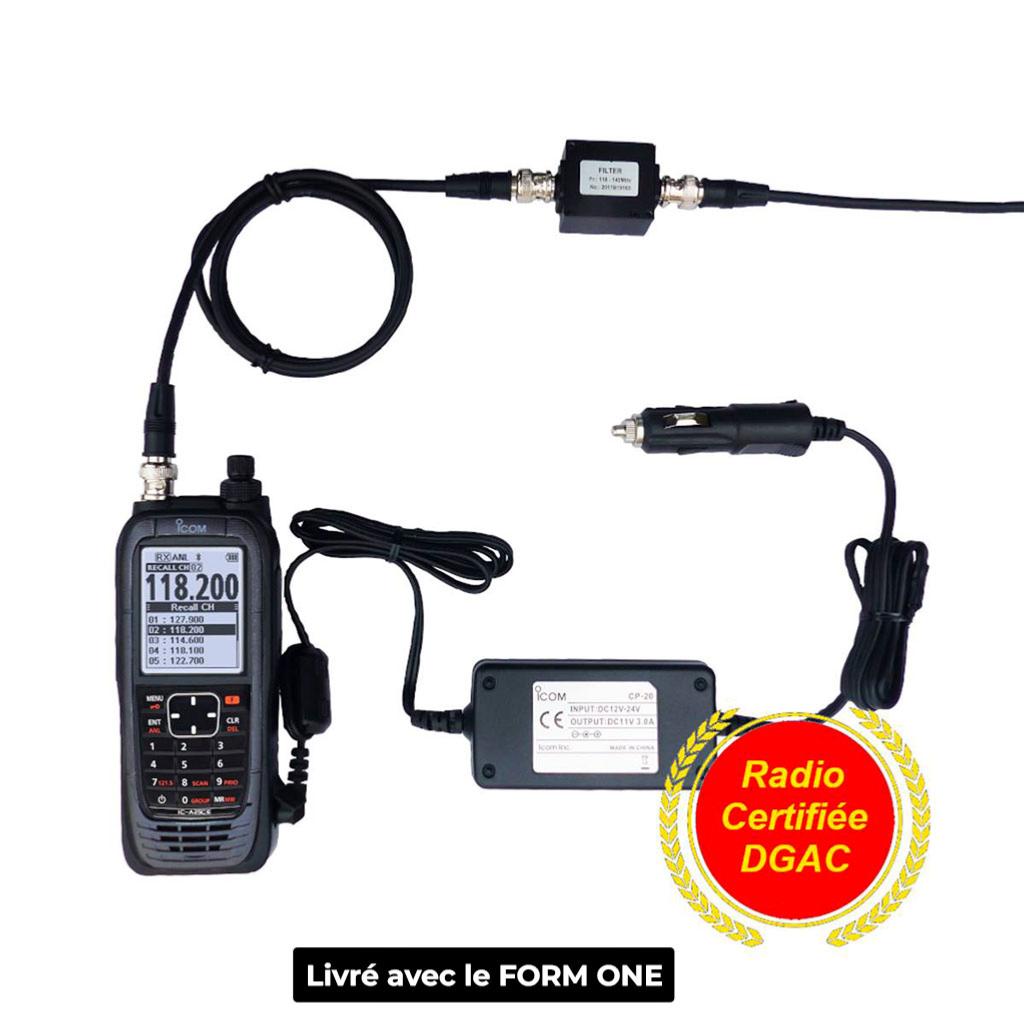

Certified ICOM IC-A25CE FR II Radio

Portable Aviation VHF 118-136MHz, 6W PEP, graphical display, keyboard, 200 channels, 8.33kHz spacing, IP57 waterproofing. Complies with MIL-STD810G standard. VHF E/R certified as main onboard LSA radio - DSAC/NO 22-044 Approval.

Equipment subject to "special type approval" (decree of 10/07/2000), limited to ULM and aircraft in CNSK, CNRA, CNRAC, hot air balloons, gas balloons, mixed balloons, and hot air airships, with the following limitations :

flight level below FL150 and maximum speed 300 km/h. Use is authorized in French airspace only.

The use of this equipment for hot air airships and balloons subject to EASA 2018/395 regulations is limited to French airspace and in areas not requiring radio communication. Limitation to VFR day use. Use in French airspace only. Use with FL-IFFM2 filter and below flight level 150.

Functions

Specifications

Accessories

Output power of 6 W.

For even wider communication coverage, the output power has been increased to 6 W (6W PEP - 1.8 W carrier) compared to the ICA24E (5 W PEP / 1.5 W carrier).

User-friendly and easy-to-use menu.

Frequently used functions are directly accessible via shortcuts on the keyboard. The large keys provide precise input without the risk of errors in any situation.

High-visibility LCD display and "Day/Night" mode.

The IC-A25 features a large 2.3-inch LCD screen with high contrast for optimal readability even in bright sunlight. The multi-line display in large characters ensures easy and quick reading. The "day/night" mode allows for use in low light conditions (backlit screen).

Flip-flop function (channel recall).

For improved user convenience, the handheld automatically stores the last 10 channels used, allowing for direct recall later on. Particularly useful for switching between channels (NAV and COM), this function also enables sorting of the last stored channels (deletion, changing the order, etc.).

Smart battery with charge indicator.
The original 2350 mAh smart battery (BP288) provides approximately 10 hours* of autonomy. For simplified maintenance, the screen displays comprehensive information: voltage, charge level in %, battery status, charge cycle counter, etc. *Tx 5%, Rx 5%, standby 90%, power save enabled..

Other features :

• 8.33 and 25 kHz channel spacing compliant with the new standard

• 300 memory channels (12 characters per channel) and 15 memory groups

• Dust and water resistance IP57 • Battery case BP-289 (6 AA alkaline batteries) for emergency use

• BNC antenna connector

• Specific button for distress frequency (button 7 = 121.5 MHz)

• Priority channel • Scanning of stored and priority channels

• ANL function (Automatic Noise Limiter) to reduce ambient noise (engine, etc.)

• VOX hands-free function (automatic transmission trigger by voice)

GENERAL

Covered frequencies : TX: 118 to 136 MHz / RX: 108 to 136 MHz

Number of memory channels: 300 channels / 15 groups

Channel spacing: 8.33 KHz / 25 KHz Mode: AM (6K00A3E, 5K60A3E)

Power supply: 7.2 V (Battery) / 11 V DC (External jack)

Consumption: 1.8 A (High TX) Antenna impedance: 50 Ohms

Operating temperature: -20°C to +55°C

Dimensions: 58.9 x 148.4 x 31.8 mm (L x H x D)

Weight: 384 grams

TRANSMISSION

Power: 6 W / 1.8W (PEP / Carrier power)

Audio harmonic distortion: Less than 10% (at 90% modulation)

Non-essential radiation: Less than -36 dBm (except frequency +/- 1 MHz)

Frequency stability: +/- 1 ppm

RECEIVER

Intermediate frequencies: 46.35 MHz / 450 kHz (1st / 2nd)

Adjacent channel rejection: More than 60 dB

Rejection rate: More than 70 dB Hum and noise level: More than 40 dB (at 90% modulation)

Audio output power: More than 350 mW at 8 ohms, 60% modulation, 10% distortion

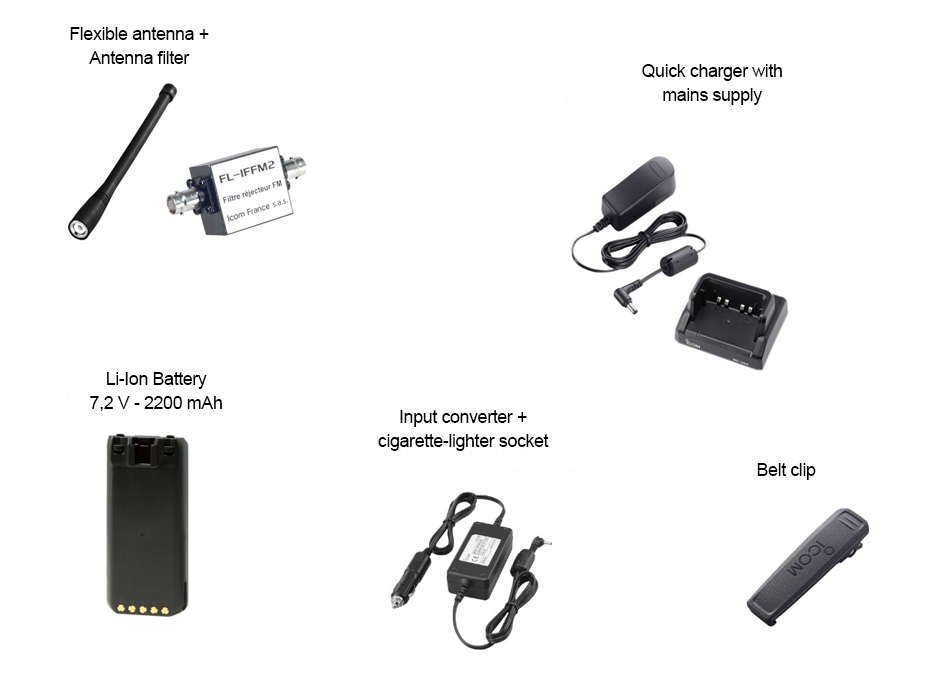

Accessories Included
