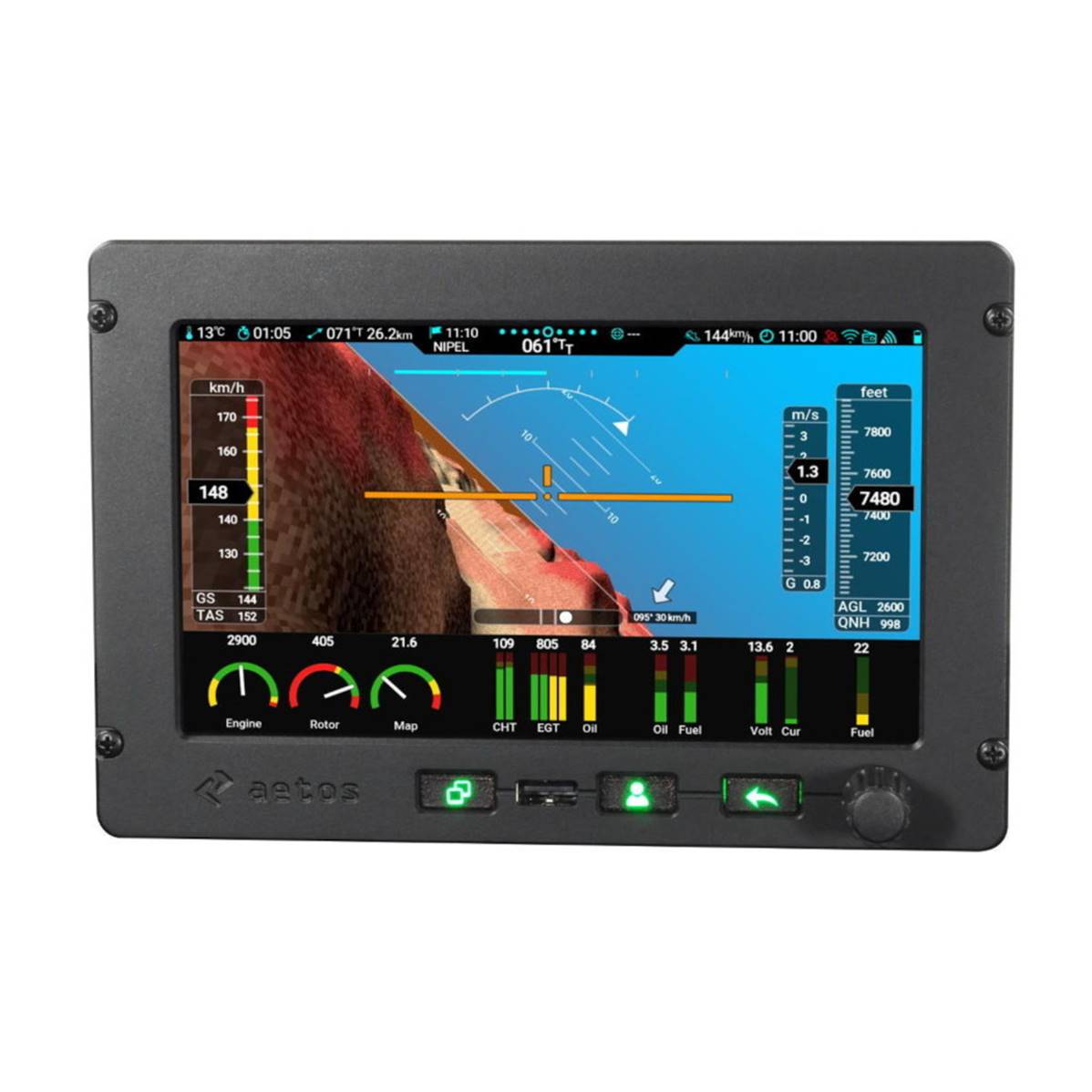

Kanardia AETOS Kit

Name: Kanardia AETOS Kit
Brand: Kanardia
SKU: 61255-01
Price: 3468 EUR
Availability: OutOfStock

Kanardia

(Code: 61255-01)

Orders only

Aetos, flight and engine system for the ultralight airplanes, autogyros and helicopters. As oppose to Nesis, Aetos does not support flight maps. The Aetos is a self-contained state-of-the-art EFIS instrument optimized for ultralight aircrafts.

3,468.00 €

2000g

Add to cart

Aetos, flight and engine system for the ultralight airplanes, autogyros and helicopters. As oppose to Nesis, Aetos does not support flight maps. The Aetos is a self-contained state-of-the-art EFIS instrument optimized for ultralight aircrafts.

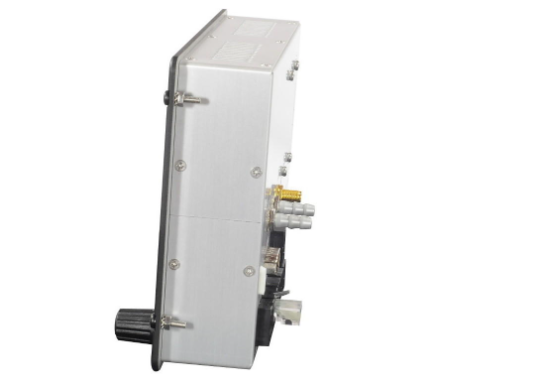

Kanardia takes great care to make its instruments as light and thin as possible. Aetos weighs only 700 g and measures 190 x 125 x 40 mm.

Large 7" sunlight readable screen with high contrast

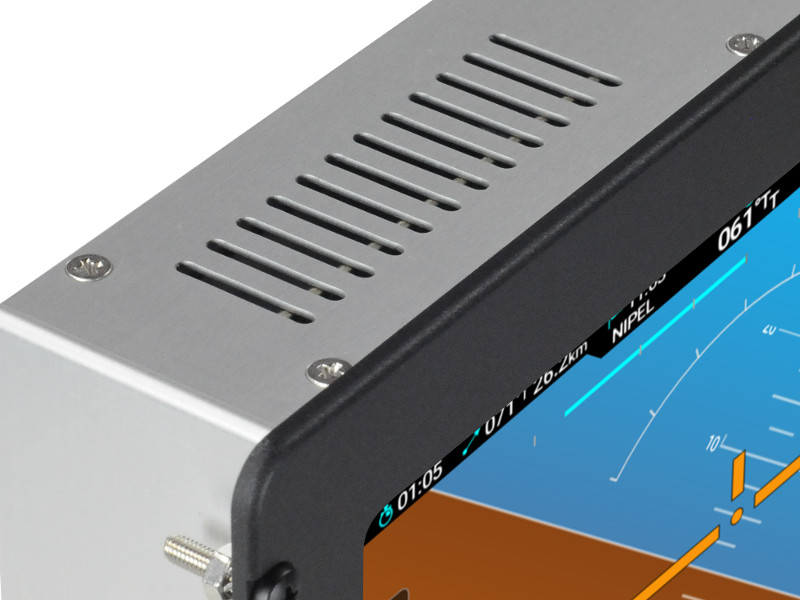

Passive cooling

Low power consumption even at high brightness. This allows passive cooling without any ventilators.

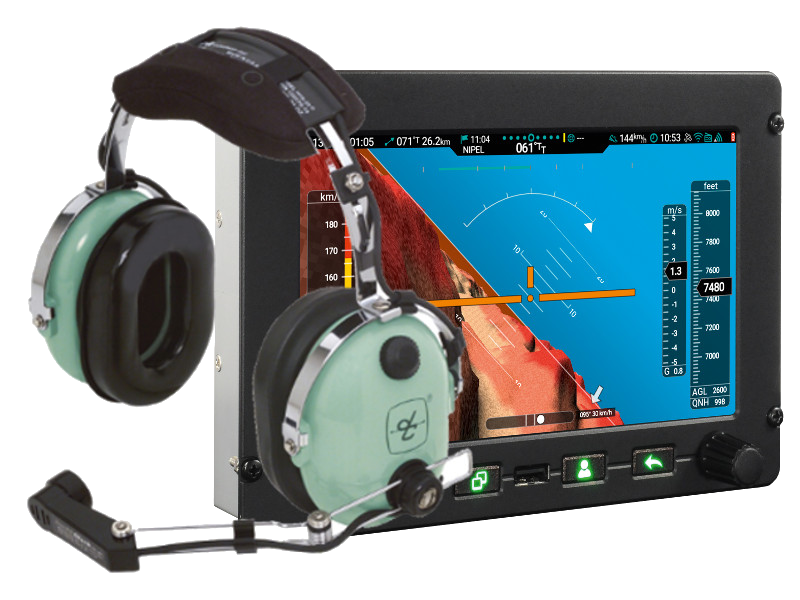

Audio output

Aetos gives out many warnings. You can hear them by connecting Aetos with your audio panel with a standard 3.5 mm jack.

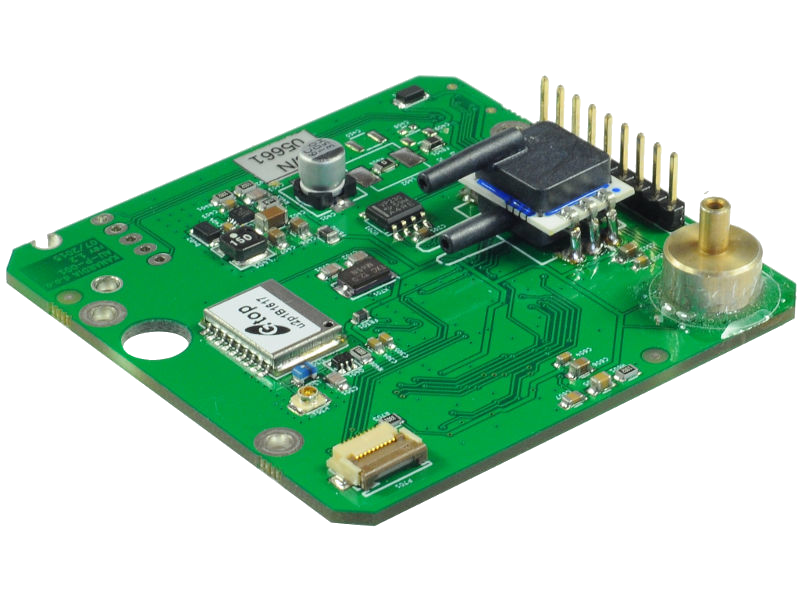

Integrated GPS / AHRS / Pitot

Aetos has a built in global positioning system, an altitude and heading reference system, pressure measurement system and much more.

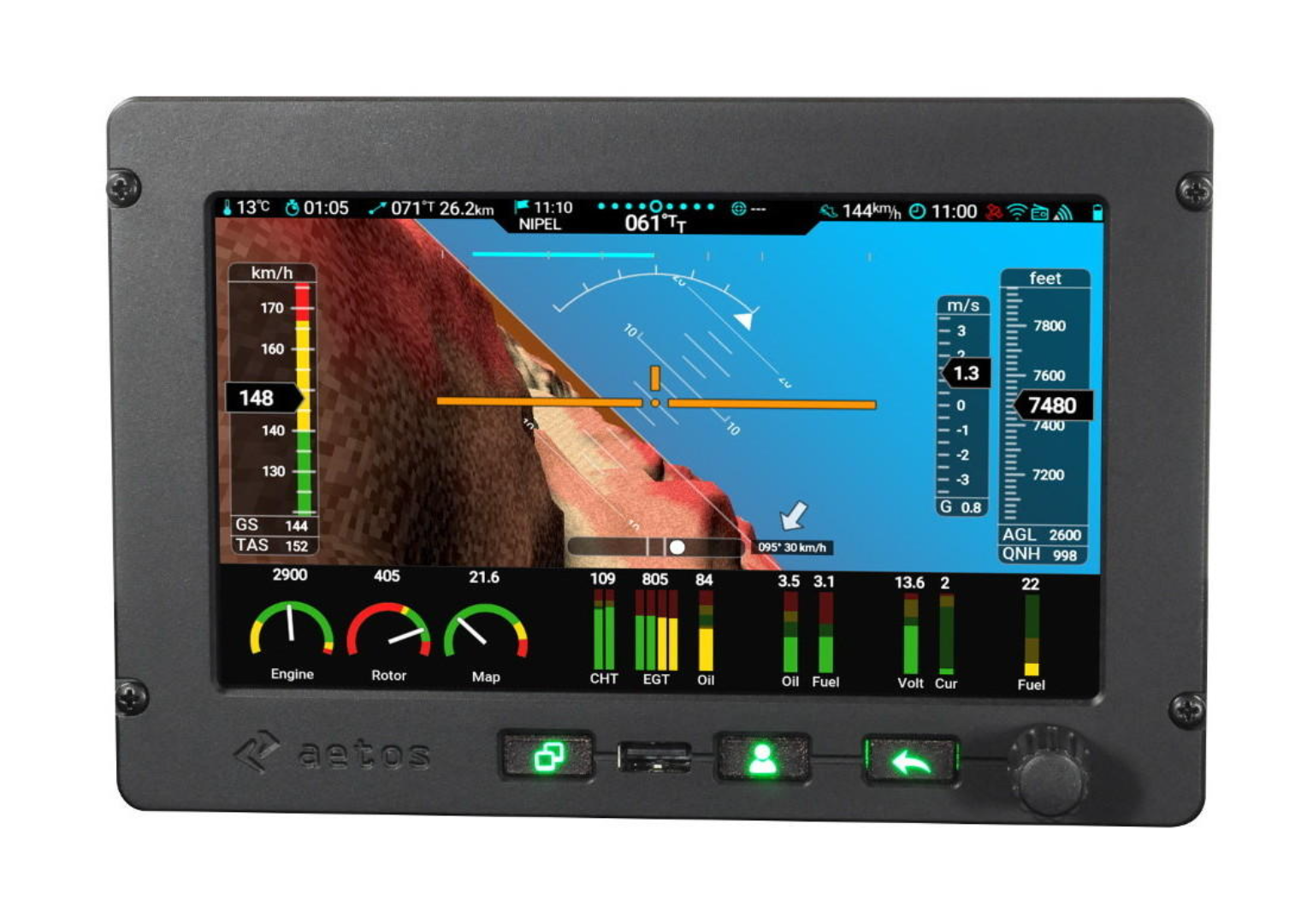

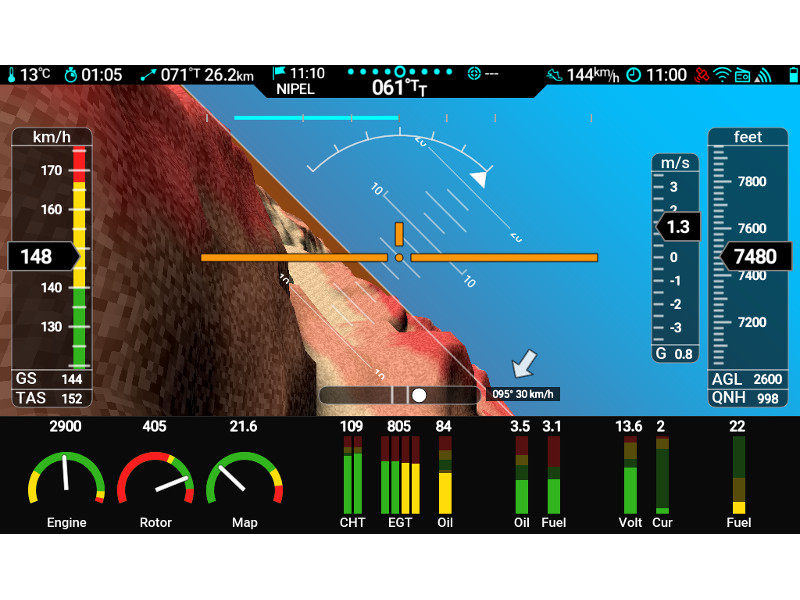

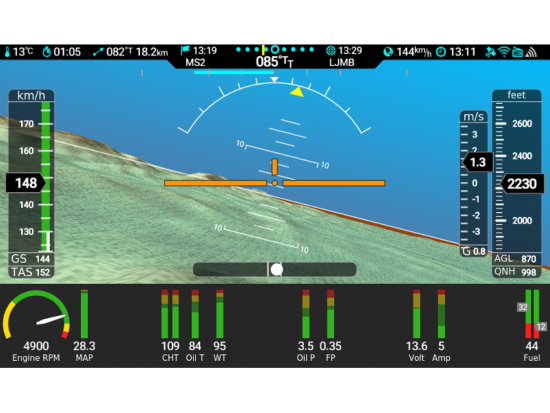

PFD & EMS screen

The primary flight display combined with engine monitoring screen displays various engine and fuel related parameters.

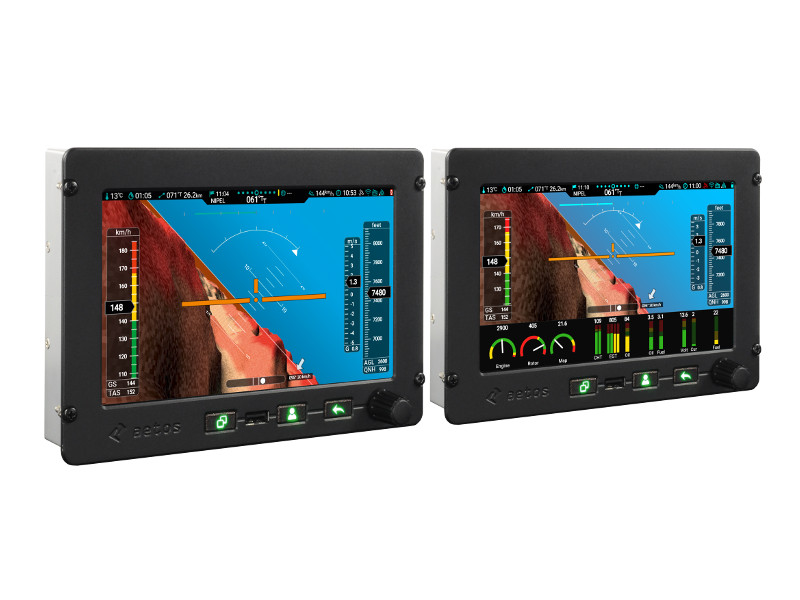

Dual Kit

Dual display, doubles your options. Secondary Aetos is equivalent and can be used by a co-pilot or just as an extension, as a flight information system (EFIS), engine information system (EMS) or both.

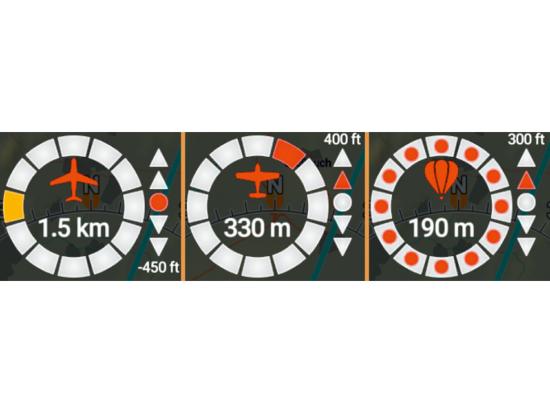

ADS-B & Flarm support

By connecting ADS-B & Flarm, Aetos will show traffic on the navigation screen.

Available options :

Carbon monoxide detector

(optional)

Operational with a stick (optional)

Autopilot ready

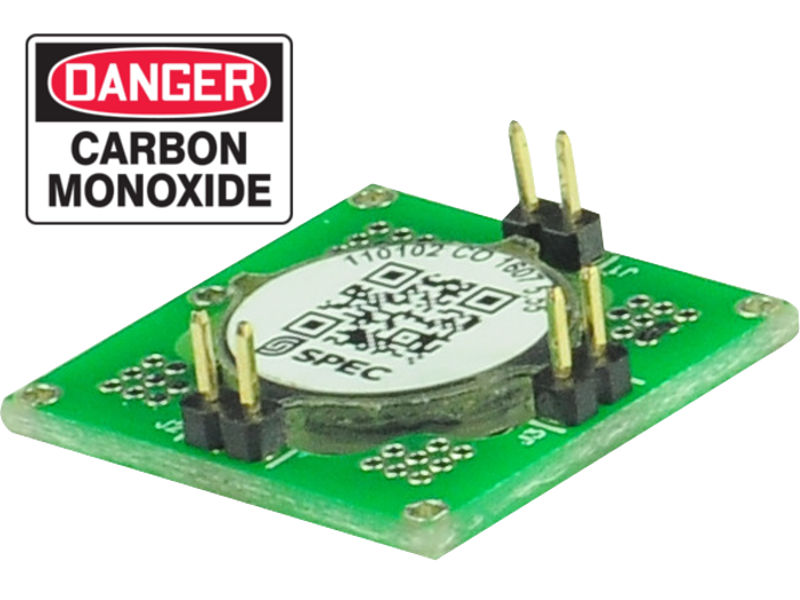

Built in carbon monoxide detector that gives a warning before the CO builds up to dangerous levels.

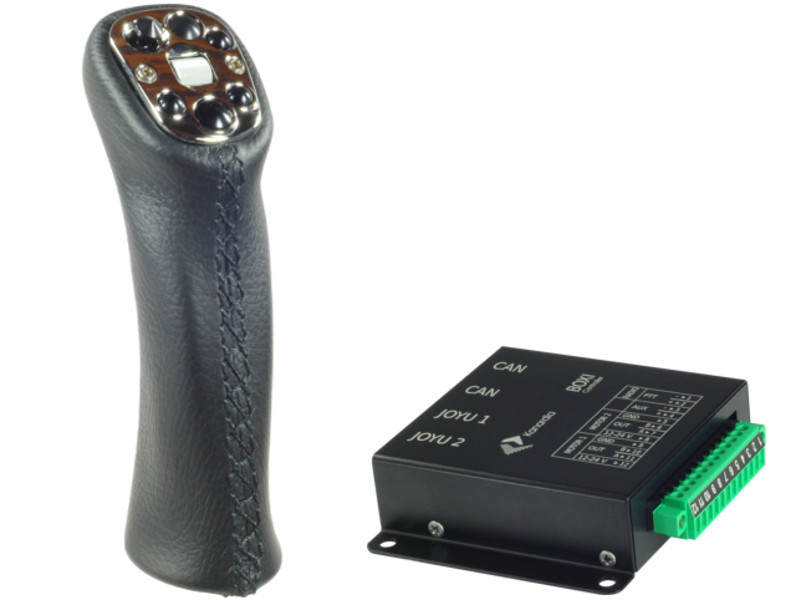

You can operate Aetos through our CAN bus with a command stick (JOYU). With (BOXI) you control pitch and roll, electrical trims and radio transmission.

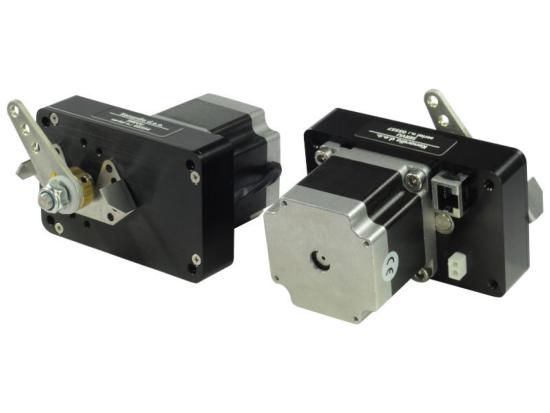

With two servo motors (SERU) attached, you can use Aetos as a main device for controlling your autopilot.

Technical specifications :

Weight:

700 g

Size:

190 x 125 x 40 mm

Operational voltage:

8 to 25 Volts

Power Consumption:

800 mA

Operating temperature:

-30°C to +85°C

QNH range:

590 to 1080 hPa (17.42 to 31.89 inHg)

Airspeed sensor:

12 bit, 0 to 69 hPa, 381 Km/h, 205 kt

Resolution < 0.1 km/h

Capteur barométrique:

24 bit, 10 à 1200 hPa, résolution 20 cm

Accéléromètre:

16 bit, 3D, échelle dynamique de 0 à 16 g

Résolution 0.12 mg

Angular rate:

16 bit, 3D, 250°/s resolution 0.009°/s

GPS:

10 Hz, 66 channel, sensitivity -165 dBm

OAT:

12 bits, range -55 to 125◦C, 0.5◦C accuracy

Communication:

CAN bus, 29 bit header, 500 kbit, Kanardia protocol;

Input : ADS-B & Flarm, RS 232, entrée vidéo,
OAT, USB, service port ;
Output : GPS, audio out

Sensor processor:

32 bit, ARM Cortex M3, 100 Mhz

Display processor:

DM 3730, 32 bit, ARM Cortex A8, 800 Mhz

Display:

1024 x 600 pix., diagonal 7", 16 bit,

Full colour, super bright

Video hardware acceleration:

Power VR SDX 540

Memory:

512 RAM

Start-up time:

< 10 s
