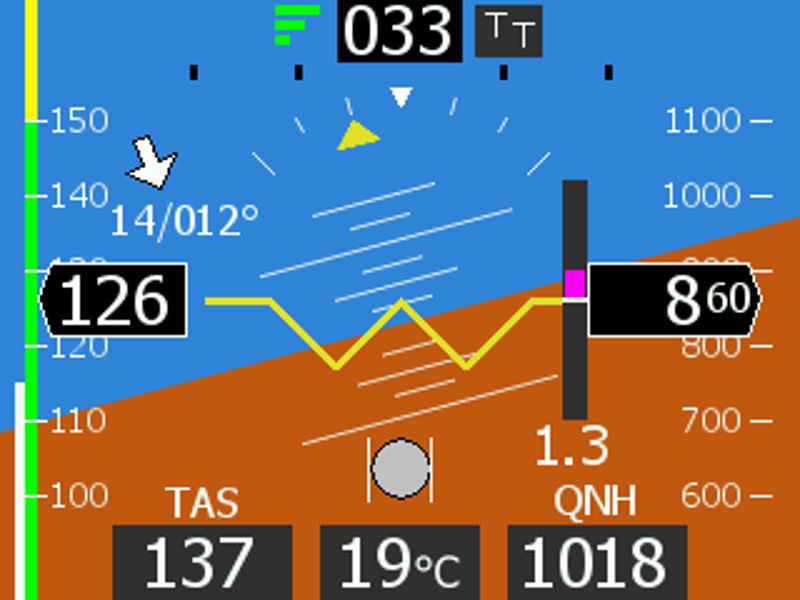

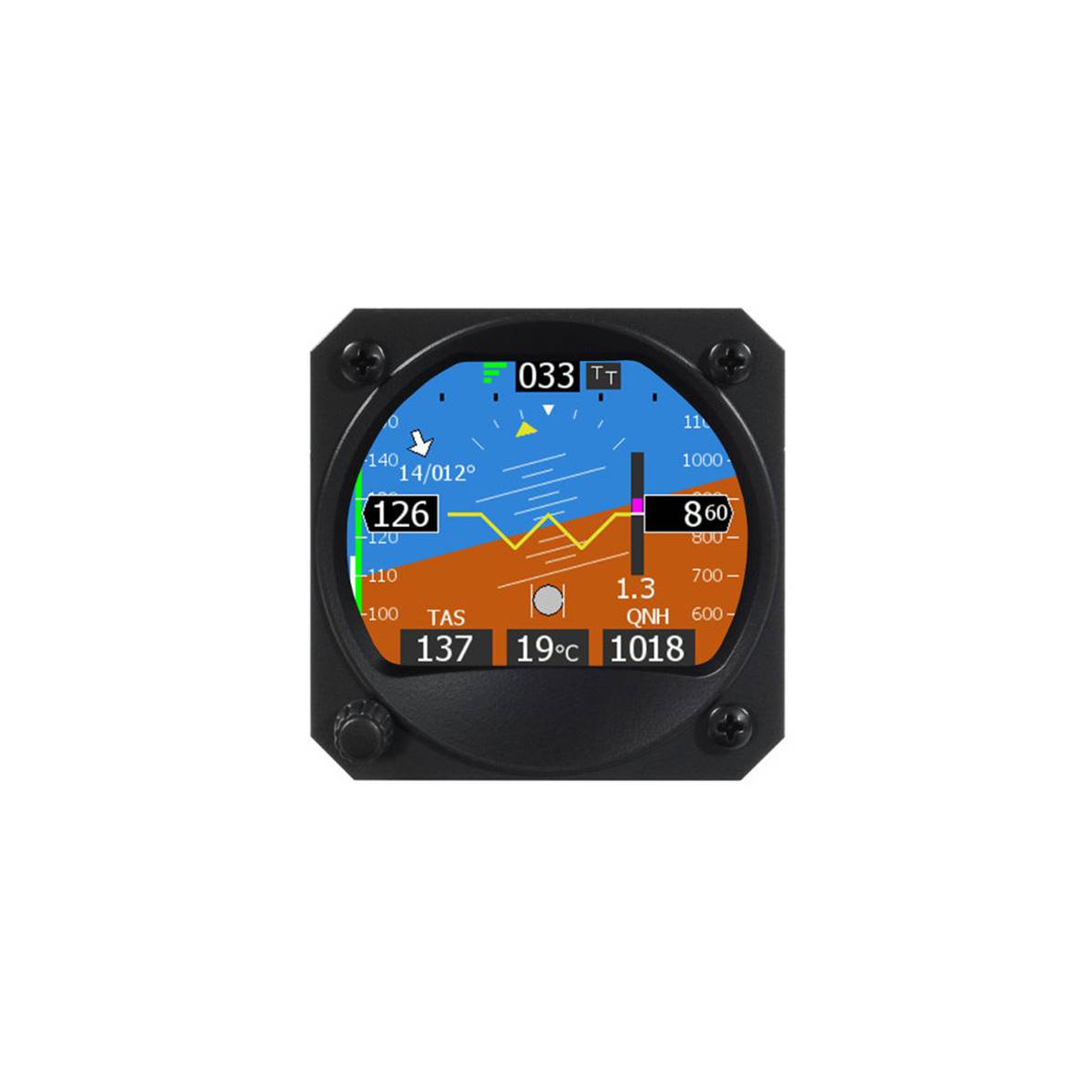

The horis is an electronic device that incorporates several advanced sensors and combines them in a single PFD instrument to serve as a stand-alone primary or backup display.

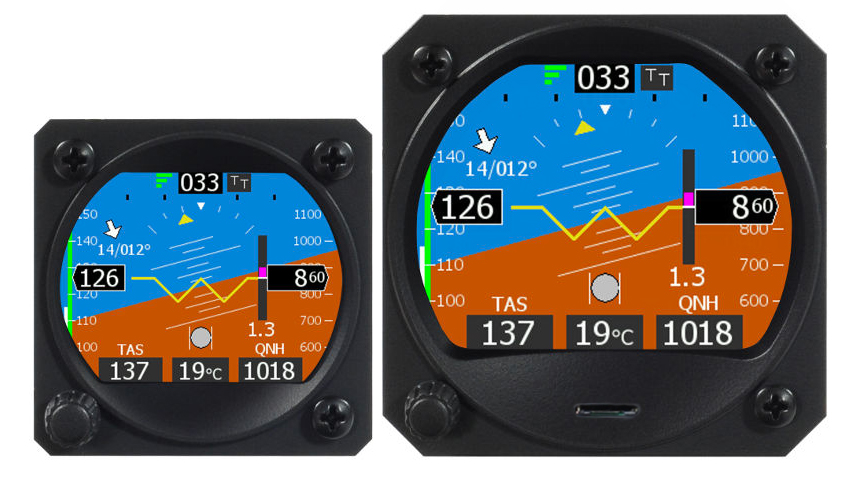

Available in a choice of Ø 80 or 57 mm.

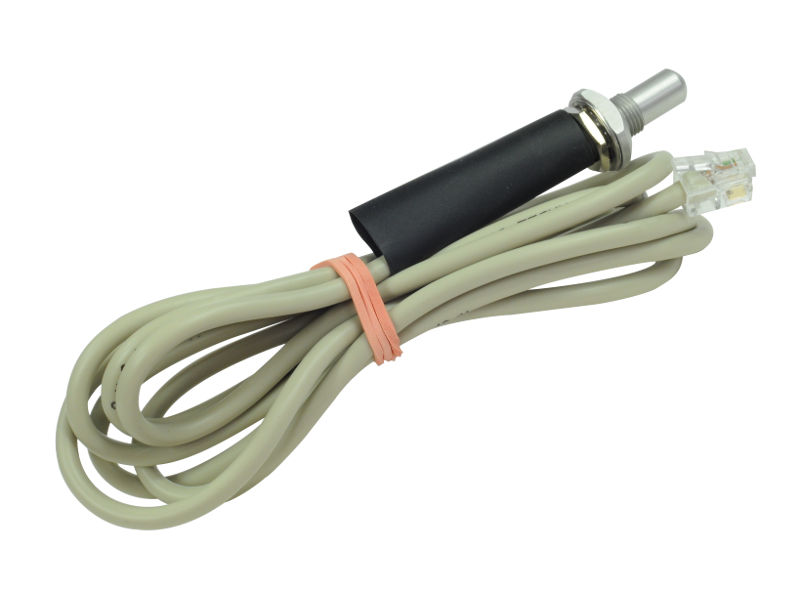

The HORIS is supplied with a digital outdoor temperature sensor.

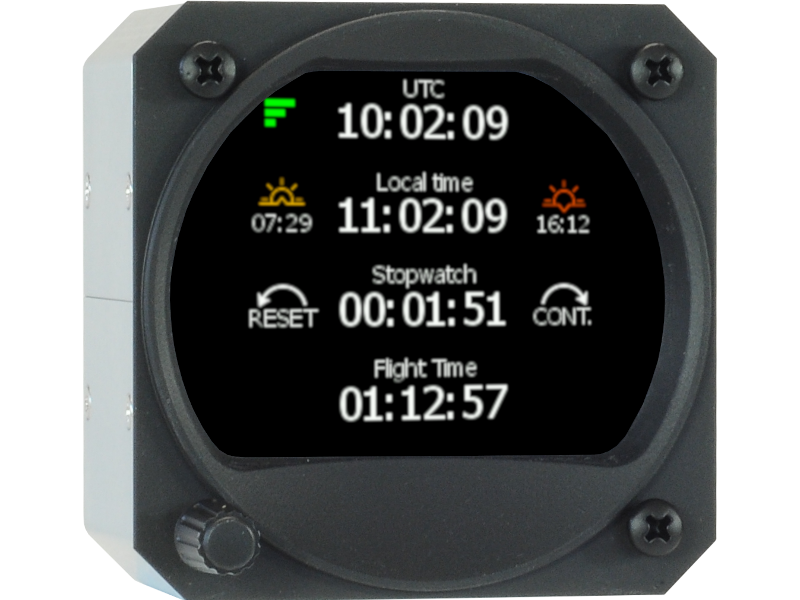

The HORIS Chrono display shows UTC time, GPS signal, local time, sunrise and sunset. It also features a stopwatch and flight time recording.

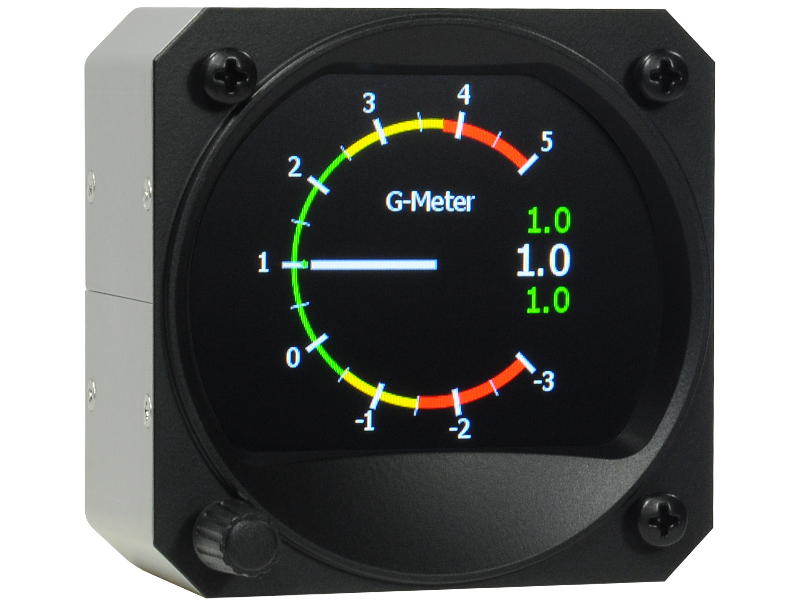

Accelerometer display with recorded minimum and maximum values.

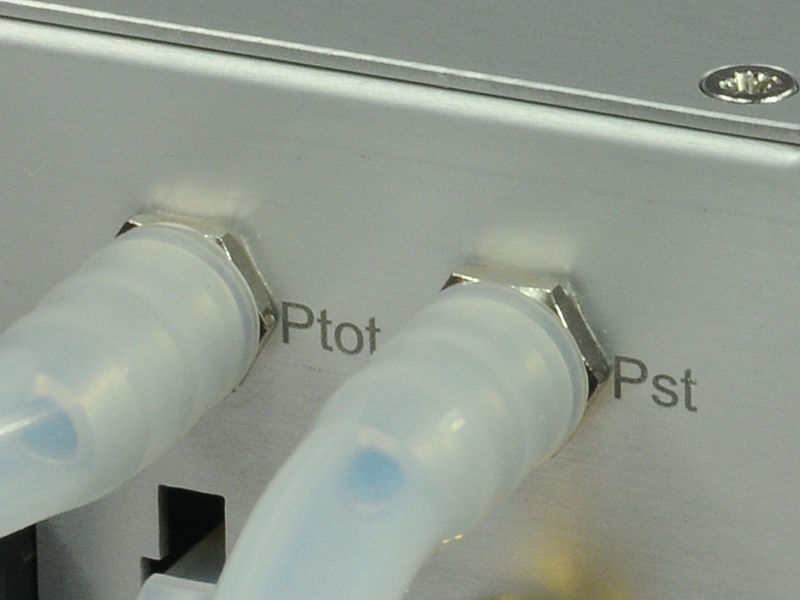

Precise pressure sensor

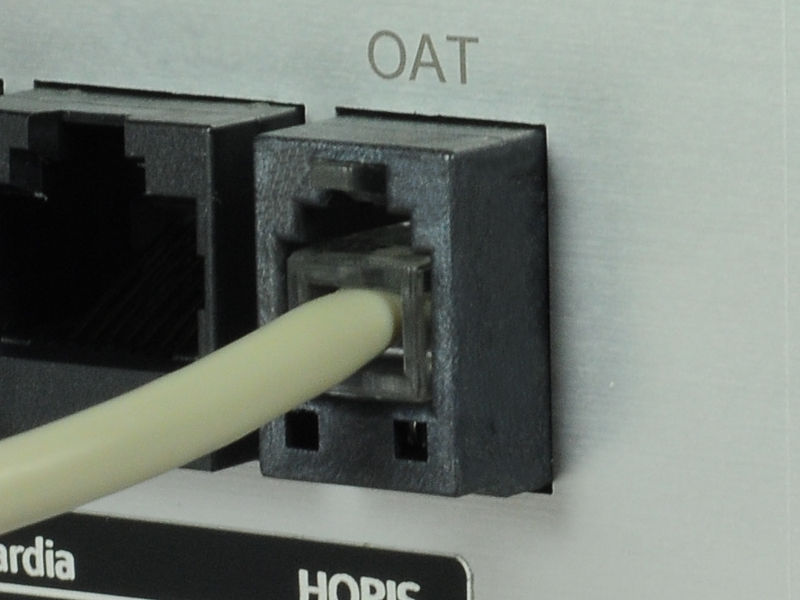

OAT information is needed to calculate true airspeed (TAS) and to provide outdoor temperature information.

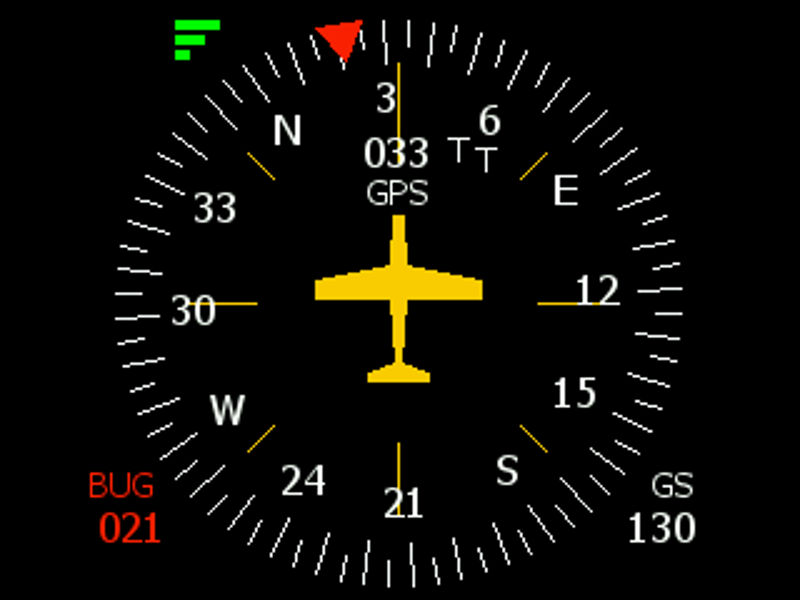

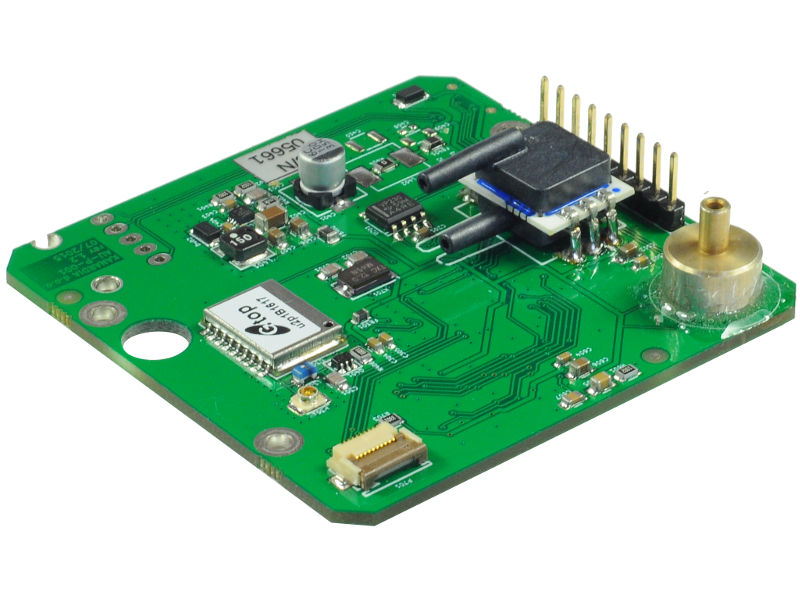

The HORIS features an integrated global positioning system, altitude and heading reference system, pressure measurement system and much more.
Weight: Ø57 mm
Ø80 mm
180 grams (230 grs with GPS antenna and OAT probe)
250 grams (300 grs with GPS antenna and OAT probe)
Dimensions: Ø57 mm
62 x 62 x 45 (64 with connector) mm
82 x 82 x 45 (64 with connector) mm
Power supply::
6 to 32 V
Current
180 mA to 12 V for Ø57 mm and 270 mA for Ø80 mm
Power:
2,16 W to 3,2 W
Operating temperature:
-30° to +85° C
Humidité:
30% à 90% sans condensation
Découpe tableau:
Ø 57 ou 80 mm
Ecran:
Diagonale:
Résolution:
2,55"
320 x 240 px
3,45"
