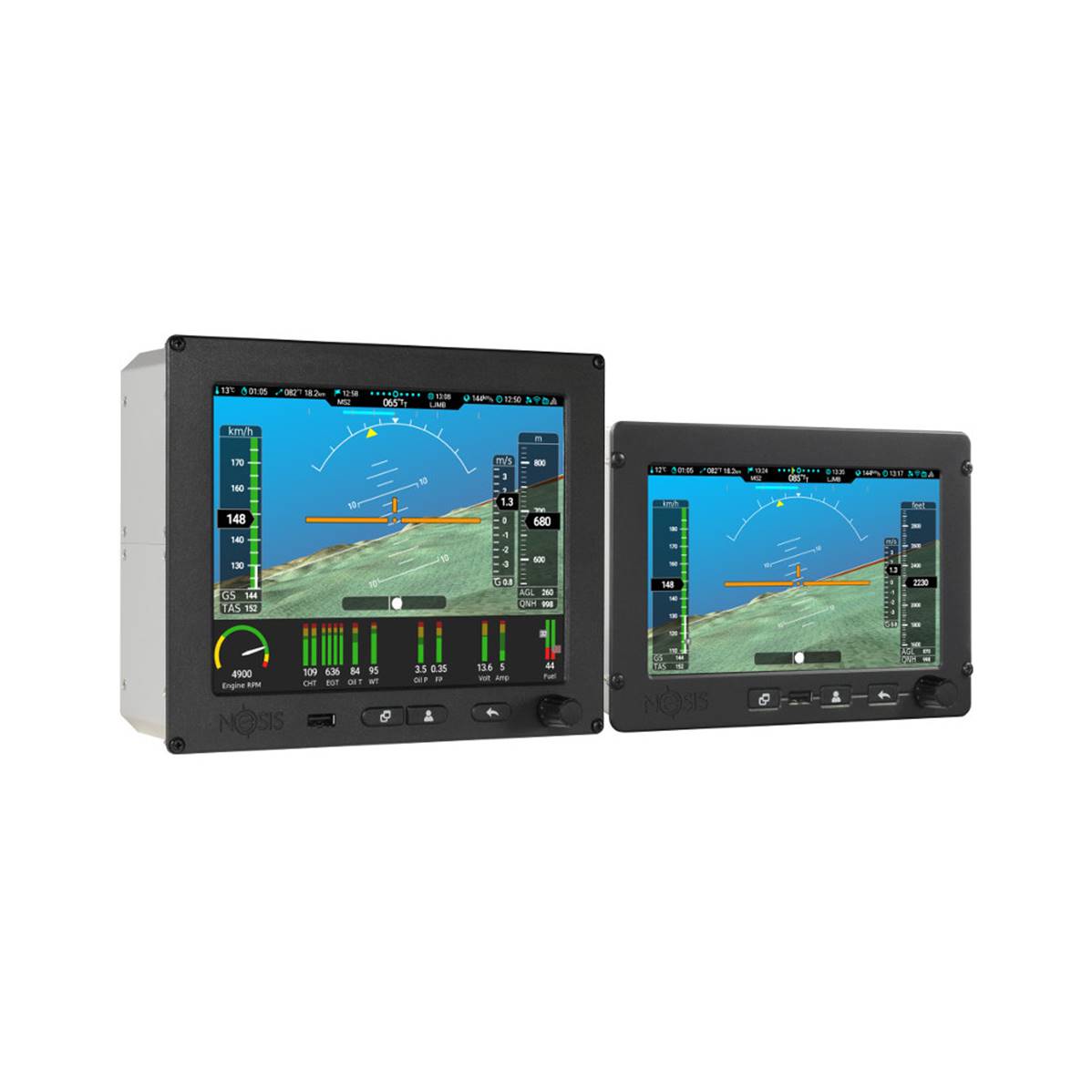

Kanardia NESIS III Kit

Name: Kanardia NESIS III Kit
Brand: Kanardia
SKU: 61260-01
Price: 5028 EUR
Availability: OutOfStock

Kanardia

(Code: 61260-01)

Orders only

Nesis, the complete navigation, flight and engine system for the ultralight airplanes, autogyros and helicopters. The Nesis family of avionics is a self-contained state-of-the-art EFIS instrument optimized for ultralight aircrafts.

5,028.00 €

2000g

Add to cart

Nesis, the complete navigation, flight and engine system for ultralight aircraft, autogyros and helicopters. The Nesis avionics family is a self-contained, state-of-the-art and optimized EFIS instrument.

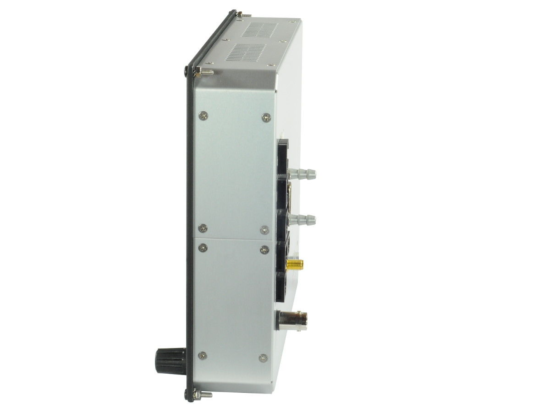

Kanardia takes great care to make its instruments as light and thin as possible. Nesis weighs only 745 g for a dimension of 190 x 125 x 40 mm.

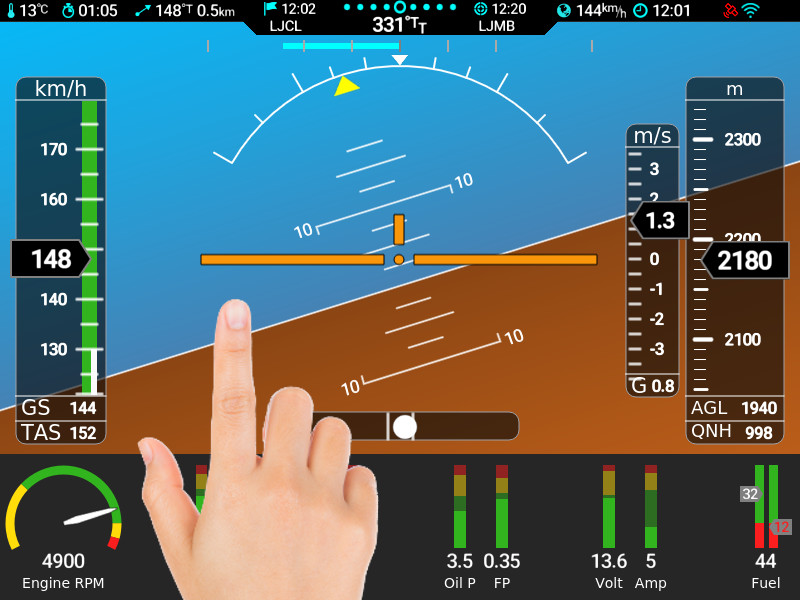

Large 7" sunlight readable touch screen with high contrast.

Different display possibilities :

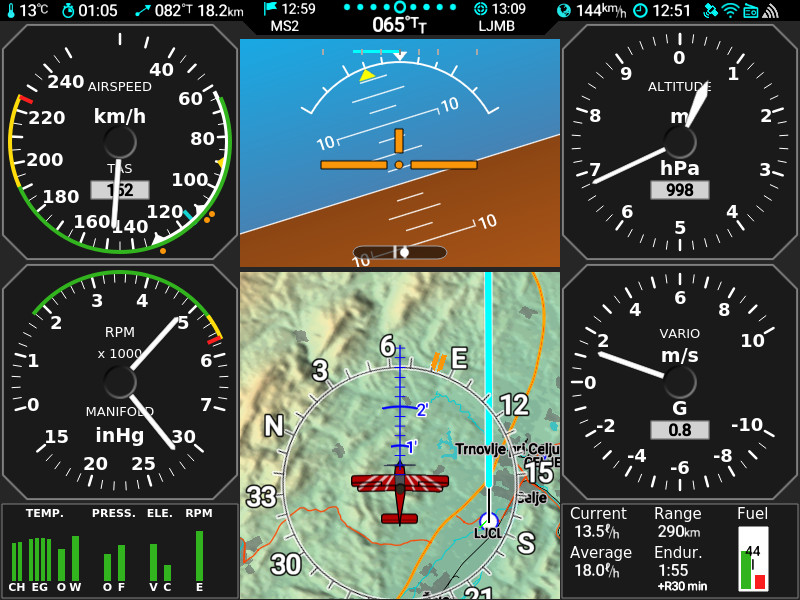

Flight information display which is the main concern of the pilot. All round gauges are fully configurable and can also display other information.

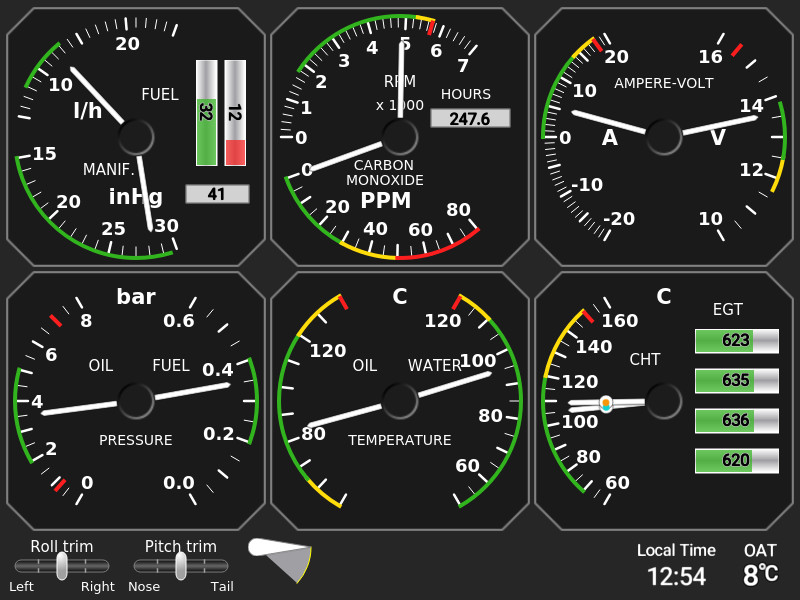

The engine monitor screen displays various engine and fuel related parameters. Some instruments and parameters are configurable and can be adjusted to individual needs.

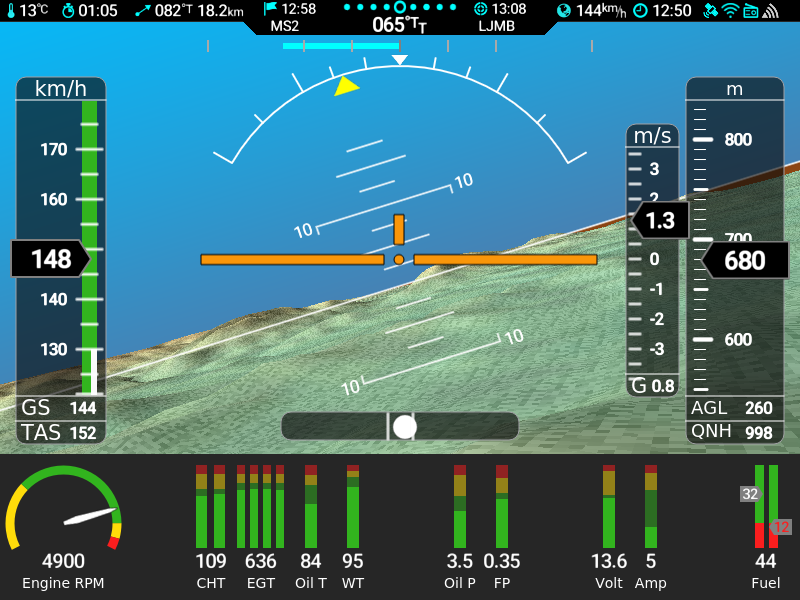

The modern flight information display consists of a background image and an overlay.

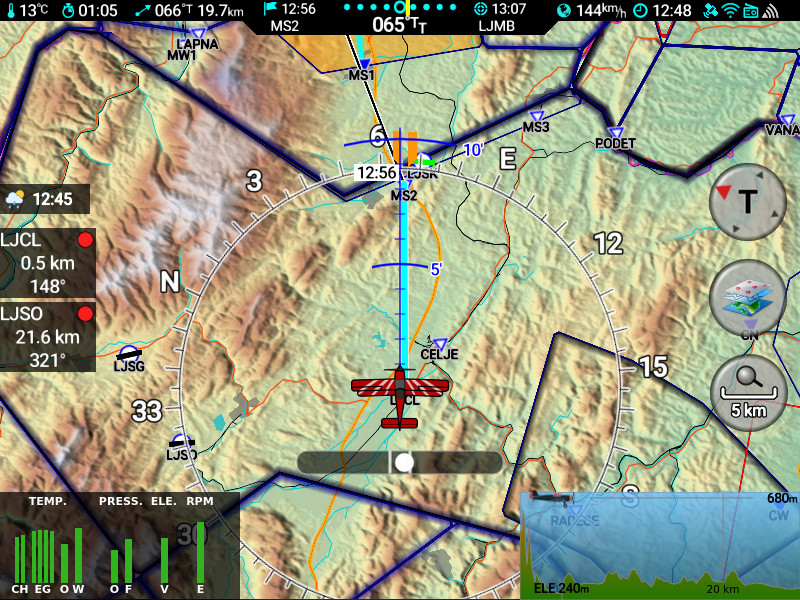

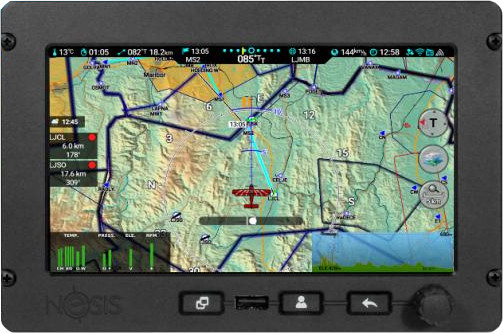

Large moving map with some additional information. The large HSI scale and the vertical airspace situation are painted on the map.

Passive Cooling

Low power consumption even at high brightness. This allows passive cooling without fans.

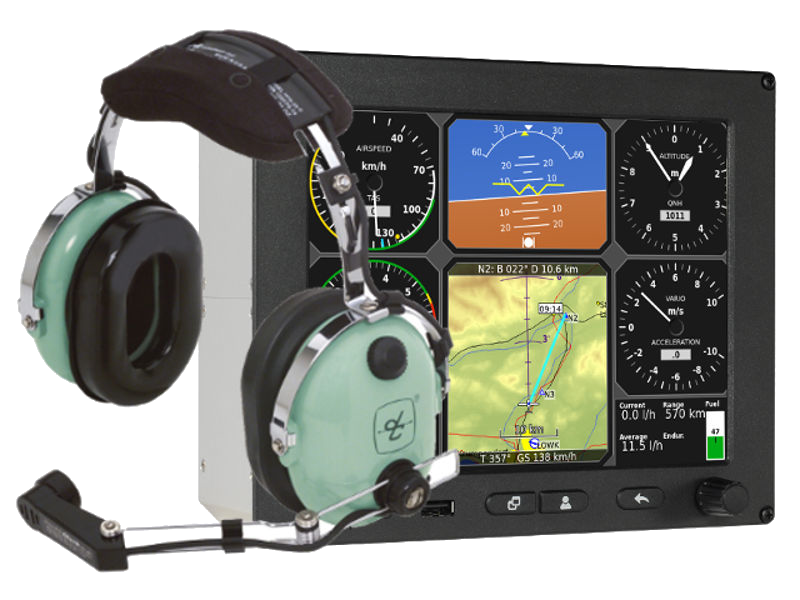

Audio Output

Nesis emits many warnings. You can hear them by connecting Nesis to your audio panel with a standard 3.5 mm jack.

GPS / AHRS / Integrated Pitot

Nesis has an integrated global positioning system, altitude and heading reference system, pressure measurement system and much more.

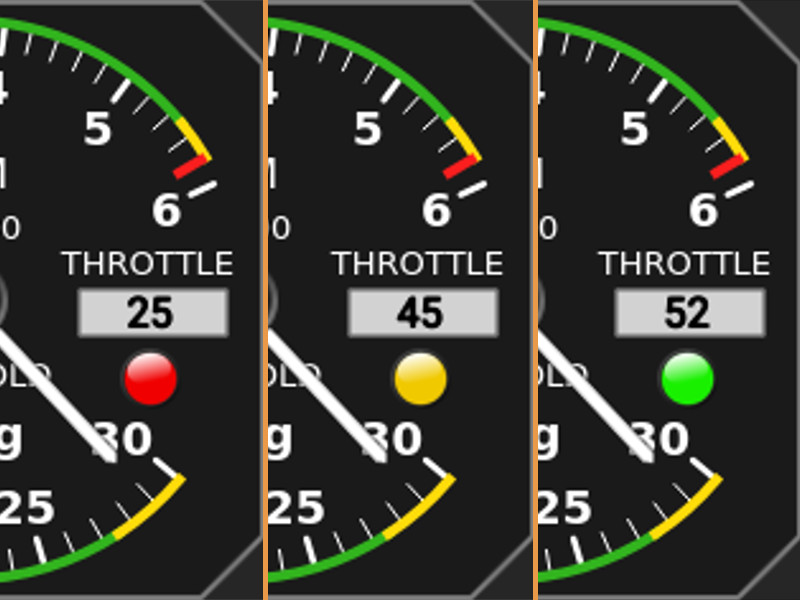

Rotax IS Starter

Choke level of the Rotax IS engine.

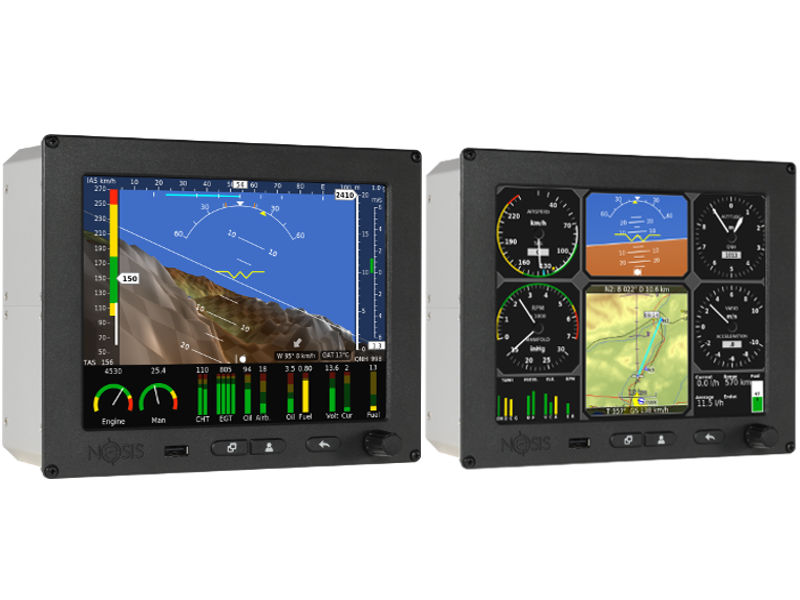

Double Kit

Dual display, dual your options. The secondary Nesis is equivalent and can be used by a co-pilot or simply as an extension, as flight information system (EFIS), engine information system (EMS) or both.

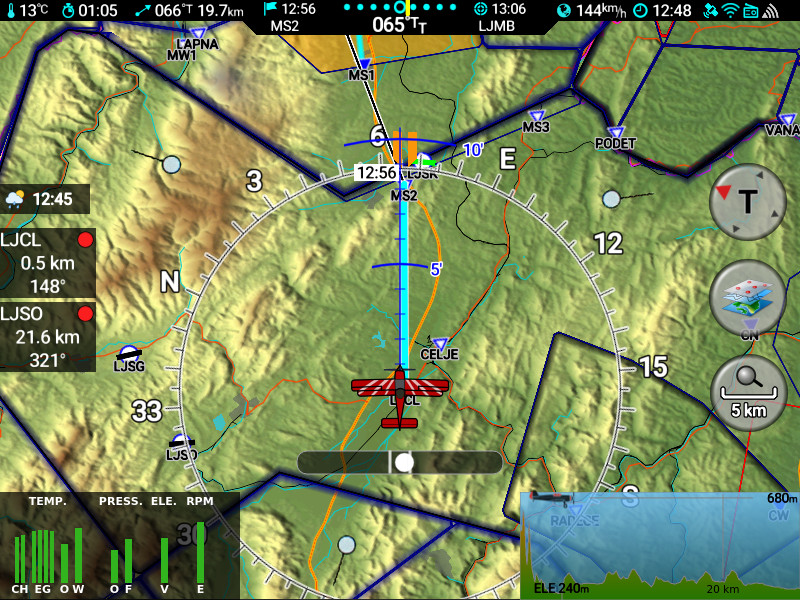

ADS-B & Flarm

By connecting ADS-B & Flarm, Nesis will display the traffic on the navigation screen.

Engine cooling function

Multi-Pilot/instructor support

Logbook

Maintenance

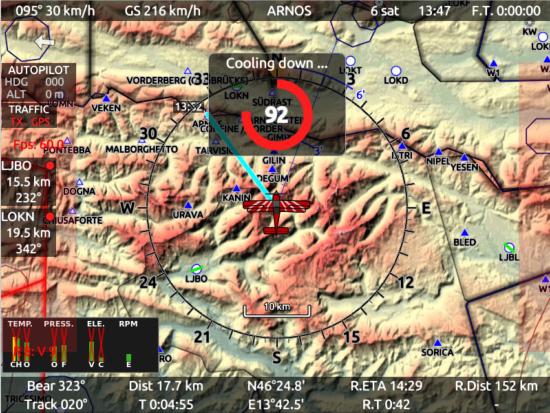

This is a special option for when you want to cool the engine by idling it before turning it off.

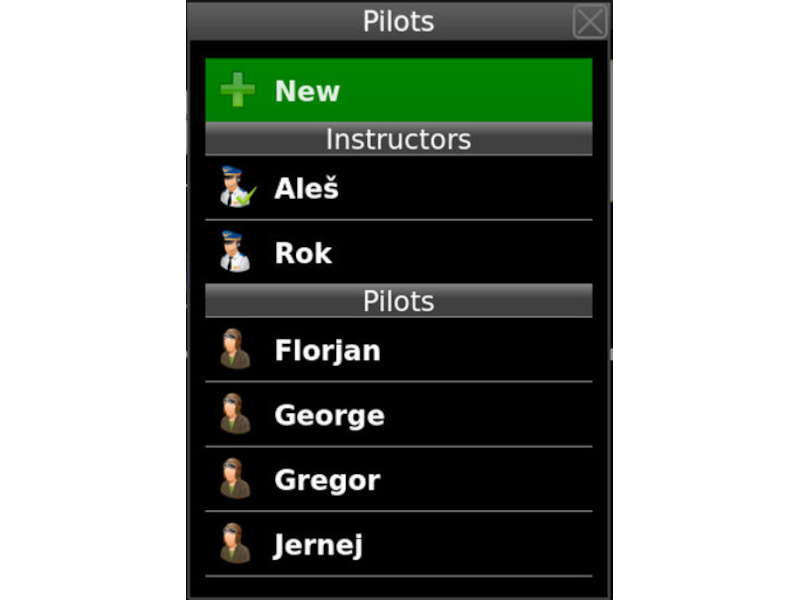

You can add, edit, remove multiple pilots and/or instructors.

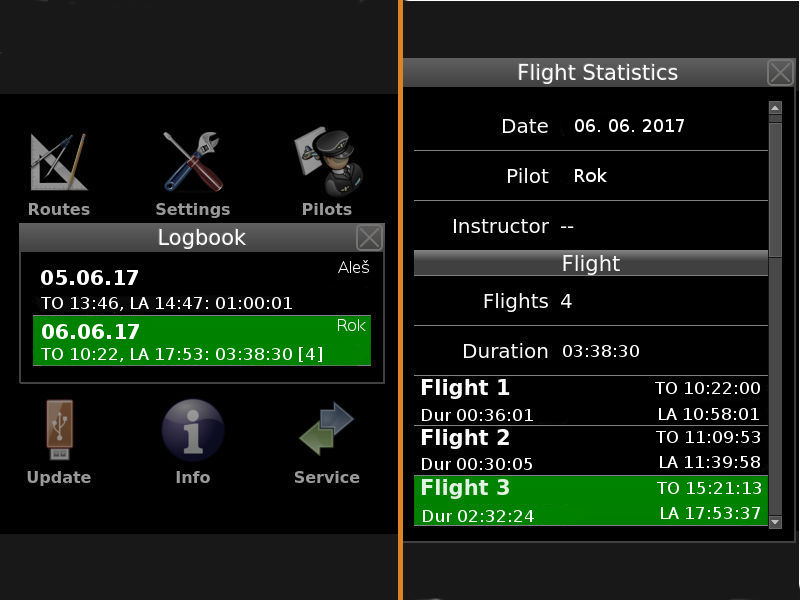

Nesis automatically keeps a log of flights and stores them in a logbook.

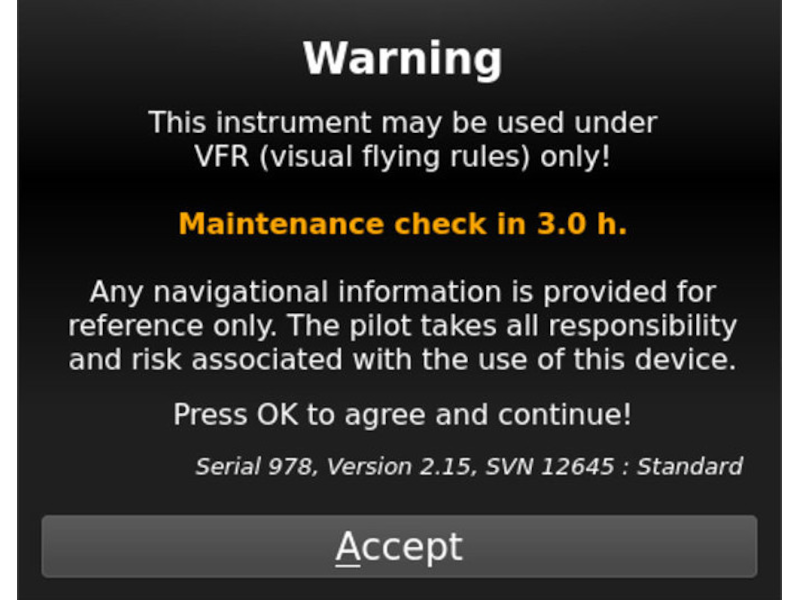

This option allows you to set a maintenance warning.

Available options :

Video input

Control Handle

Ready for autopilot

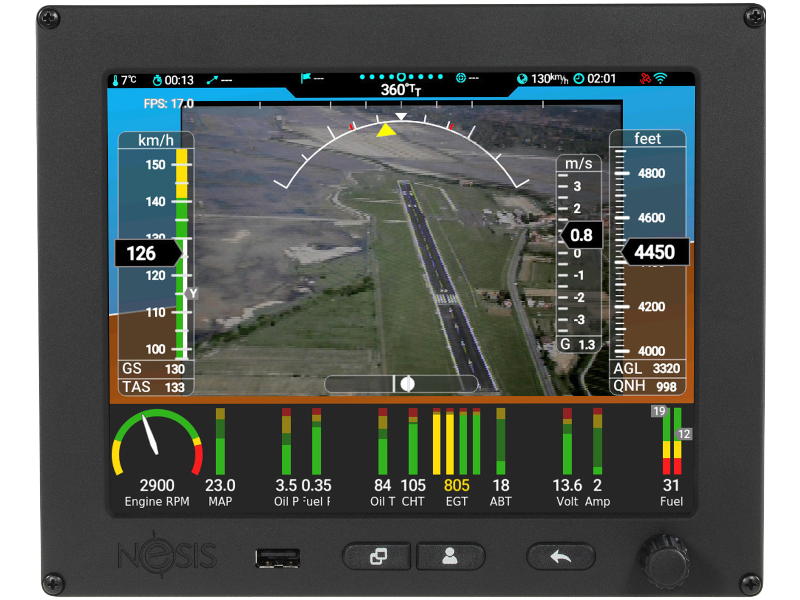

You can connect any composite video and see the video

By connecting the JOYU control handle and the BOXI, you can control the pitch and roll, the electric trim and the radio transmission.

With two servos connected, you can use Nesis as your primary device to control your autopilot.

Technical specifications :

Weight:

745 grammes

Size:

190 x 125 x 40 mm

Operational Voltage:

8 to 25 Volts

Power Consumption:

690 mA

Operating Temperature:

-30°C to +85°C

QNH Range:

590 to 1080 hPa (17.42 à 31.89 inHg

Airspeed Sensor:

12 bit, 0 to 69 hPa, 381 Km/h, 205 kt

Résolution < 0.1 km/h

Barometric Sensor:

24 bit, 10 à 1200 hPa, 20 cm résolution

Acceleration:

16 bit, 3D, Dynamic range 0 to 16 g

Typical resolution 0.12 mg

Angular rate:

16 bit, 3D, 250°/s resolution 0.009°/s

GPS:

10 Hz, 66 Channel, sensitivity -165 dBm

OAT:

12 bits, range -55 to 125◦C, 0,5◦C accuracy

Communication:

CAN Bus, 29 bit header, 500 kbit, Kanardia protocol
Input : ADS-B & Flarm, RS 232, video in,
OAT, USB, service port ;
Output : GPS, audio out

Sensor processor:

32 bit, ARM Cortex M3, 100 Mhz

Display processor:

DM 3730, 32 bit, ARM Cortex A8, 800 Mhz

Display:

800 x 600 pix, diagonal 7", 16 bits,

Full colour, super bright

Touchscreen:

Projected capacity, optically bonded multi touch

Video hardware acc.:

Power VR SDX 540

Memory:

512 RAM

Start-up time:

< 10 s
