Hemera Strobes Kit

Name: Hemera Strobes Kit
Brand: Ray Light
SKU: 61375-04
Price: 594 EUR
Availability: InStock

Ray Light

(Code: 61375-04)

In Stock

(2 Item(s) In Stock)

The Hemera LED strobes real light power can be compared to the best Xenon strobes available. The innovating Ray Light technology enables a low consumption regarding the constant amperage supply.

594.00 €

850g

Add to cart

Description

Technical specifications

overall plan

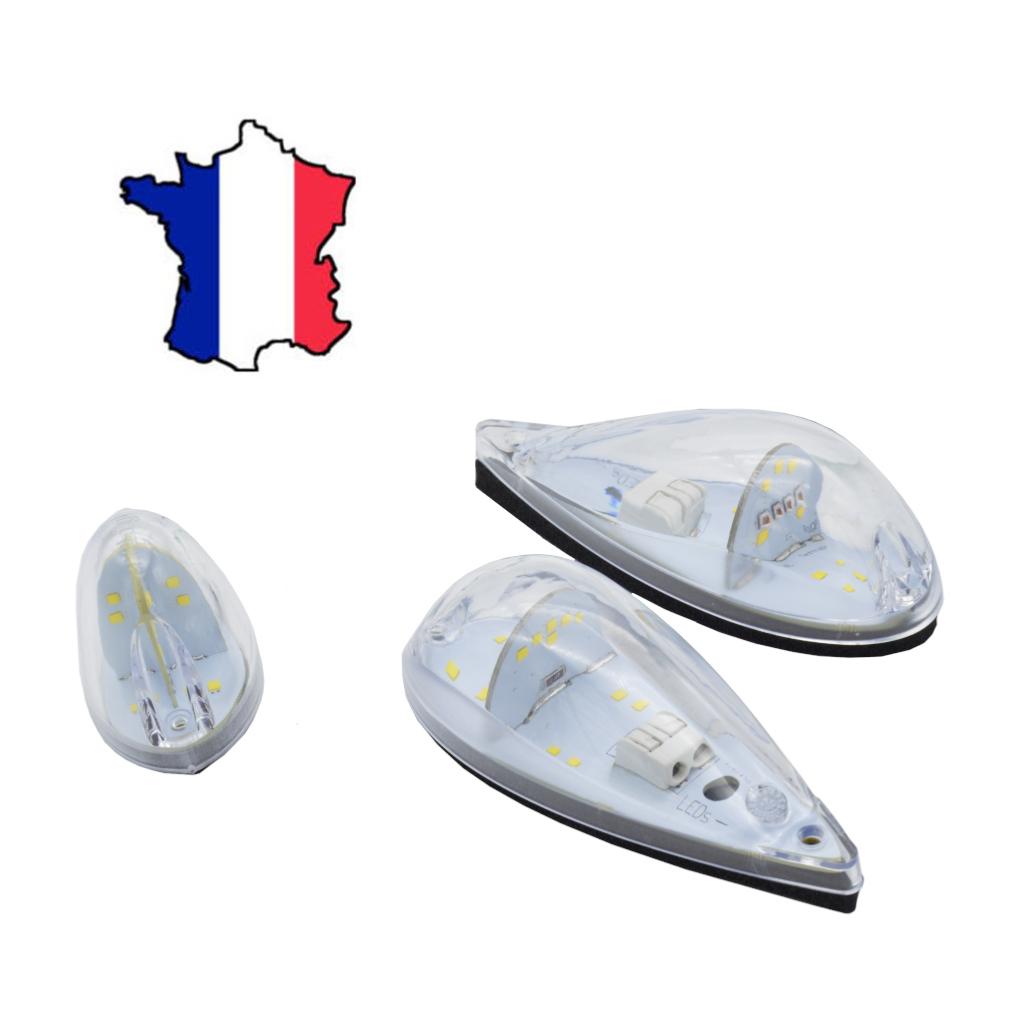

Complete kit: 2 devices for sides and 1 for fuselage or fin

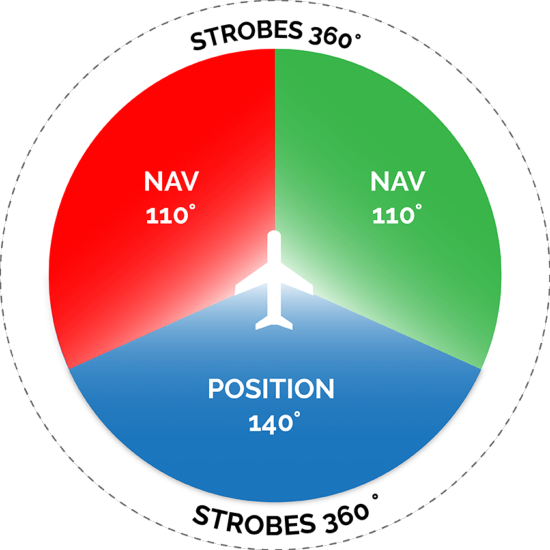

Navigation / position / flashing lights

The Hemera product contains three lighting devices:

- a red navigation light with integrated position and flashing light functions
- a green navigation light with integrated position and flashing light functions

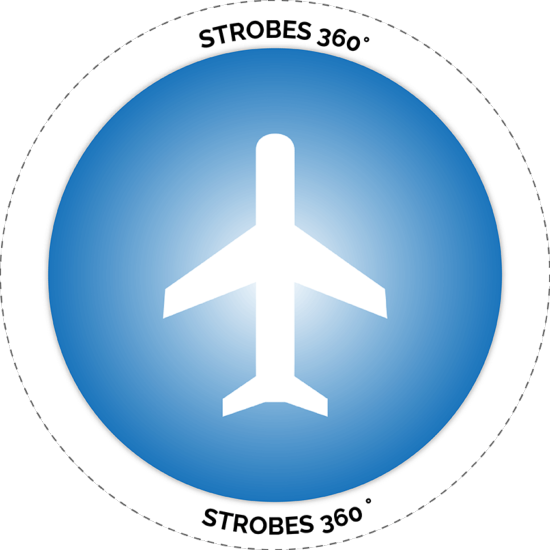

- a white flashing light

The Hemera product offers you a complete system that can be installed on wingtips, side fairings, fuselage or fin, as required.
It can be installed on pendular, multi-axis, gyrocopter and helicopter aircraft.

Hemera integrates synchronized and dissociable functions: navigation lights / position lights and strobe lights for full in-flight visibility.
The power of the strobe function illuminates the sky with 20,000 lumens, making your aircraft (ULM / LSA / CNRA / CNSK) the most visible in the sky.
Its optimized electronic design delivers light output unrivalled on the market, with low constant power consumption and low weight.
Simple wiring ensures quick, easy installation.

Last but not least, its interchangeable glass bowl makes replacement quick and easy.

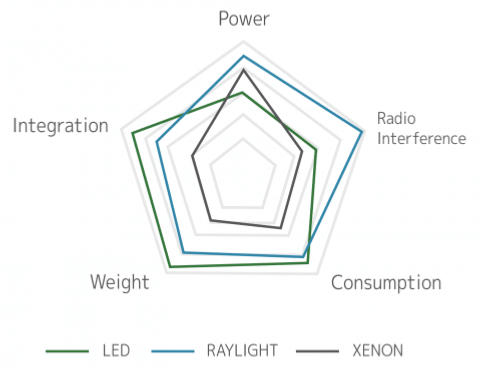

Technology comparison

Raylight's technology offers superior power to Xenon technologies, while retaining the advantages of LEDs (weight, power consumption, integration) and eliminating their radio interference.

Lumens	13 300 x 3
Candelas	1 267 x 3
Number of white LEDs	20 x 3
Number of RWG LEDs - Position lights	7 x 2
Constant consumption - A	0,4 - 1,2
Voltage - VDC	10 - 15
Electrical protection	Overvoltage and reverse polarity - LEDs disconnected - Short circuit
Frequency - synchronized flashes per min	55 - 65
Lens type	UV-resistant polycarbonate (ULV 0)
Total weight (+/-5) - G	570 gr
Weight of luminaires - G	40 gr
Generator weight (+/-5) - G	450 gr
Fixations	Supplied
Fasteners - IN	4
Fasteners - MM	101,5

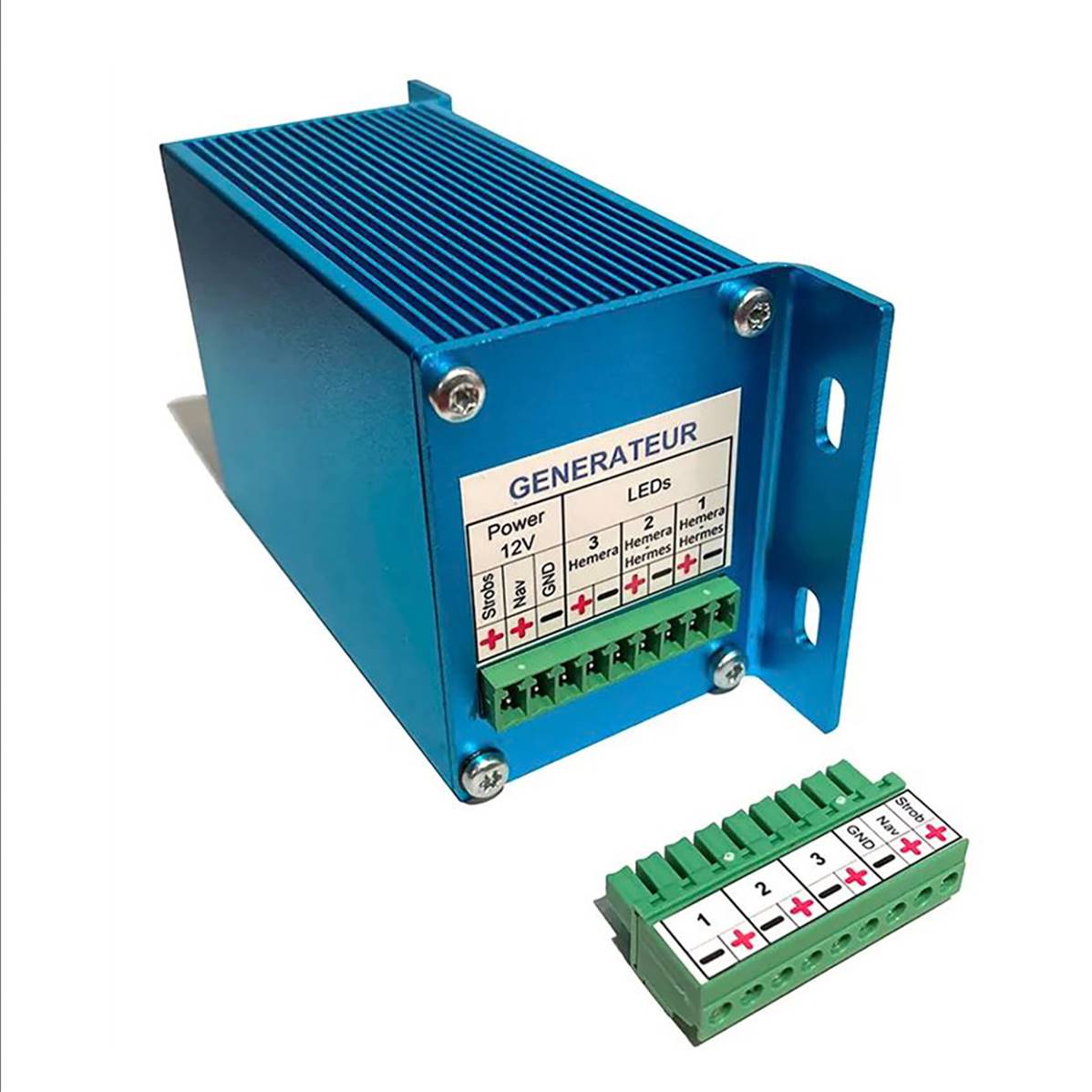

Generator electrical connection	standard 2-wire quick-connect terminal blocks
Tool-free - no length limit	Cross-section 0.25 to 0.75 mm² (0.5 mm² recommended) AWG 19 to 23

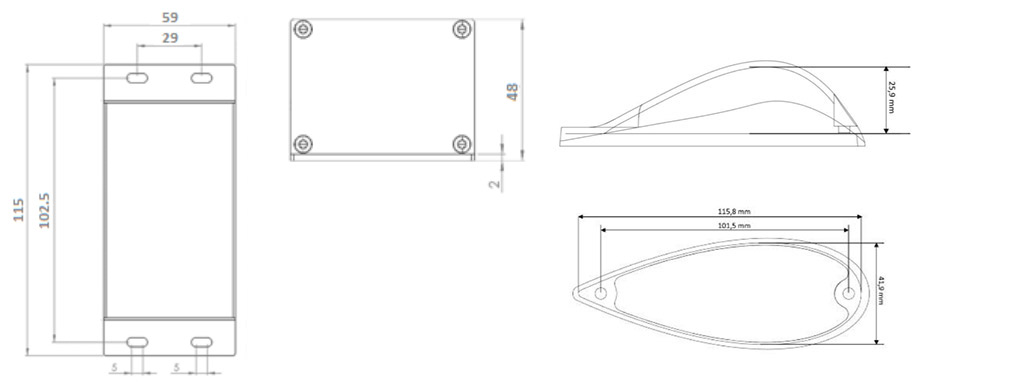

Strobe dimensions - L X L X H - IN	4,72 x 1,77 x 1,38
Strobe dimensions - L X L X H - MM	120 x 45 x 35
Generator dimensions - L X W X H - IN	4,2 x 2,6 x 2,3
Generator dimensions - L X L X H - MM	107 - 67 - 59
Between generator axes - L X W - IN	3,8 x 2
Between generator axes - L X L MM	96 x 50
