DESCRIPTION

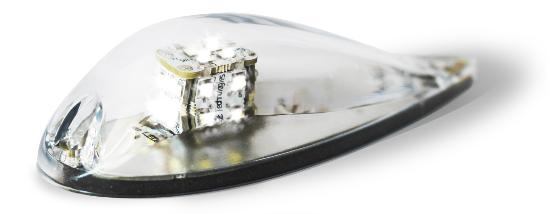

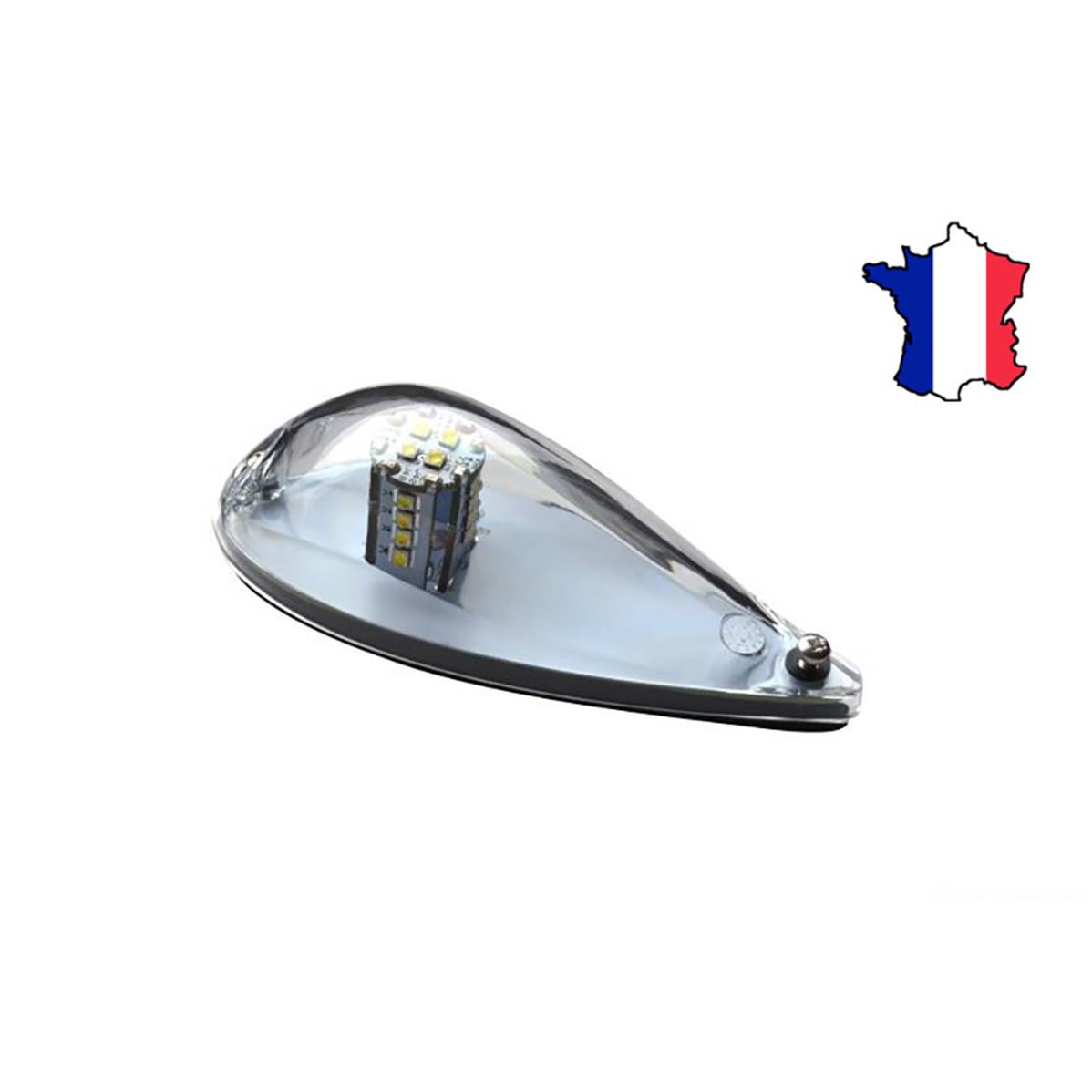

The HERA SIMPLE strobe light for ULM and LSA is the most powerful on the light aviation market (ULM, LSA). Its luminous power is 20,000 Lumens or 1900 Candelas.
"The control tower even sees me against the light".
"I am visible, even in broad daylight. Raylight's innovative technology allows this power to be generated with very low power consumption.
The consumption of the HERA SIMPLE strobe is 0.4 Ampere, and the consumption is constant. Thanks to these advantages, analog instruments are no longer hindered by the operation of the strobe.
Raylight's innovative technology does not generate any radio interference. Installation is possible on the tail, fuselage, tail, or even the daggerboard.
The modular design of the Raylight strobe allows only the ultra-resistant anti-UV polycarbonate to be replaced.

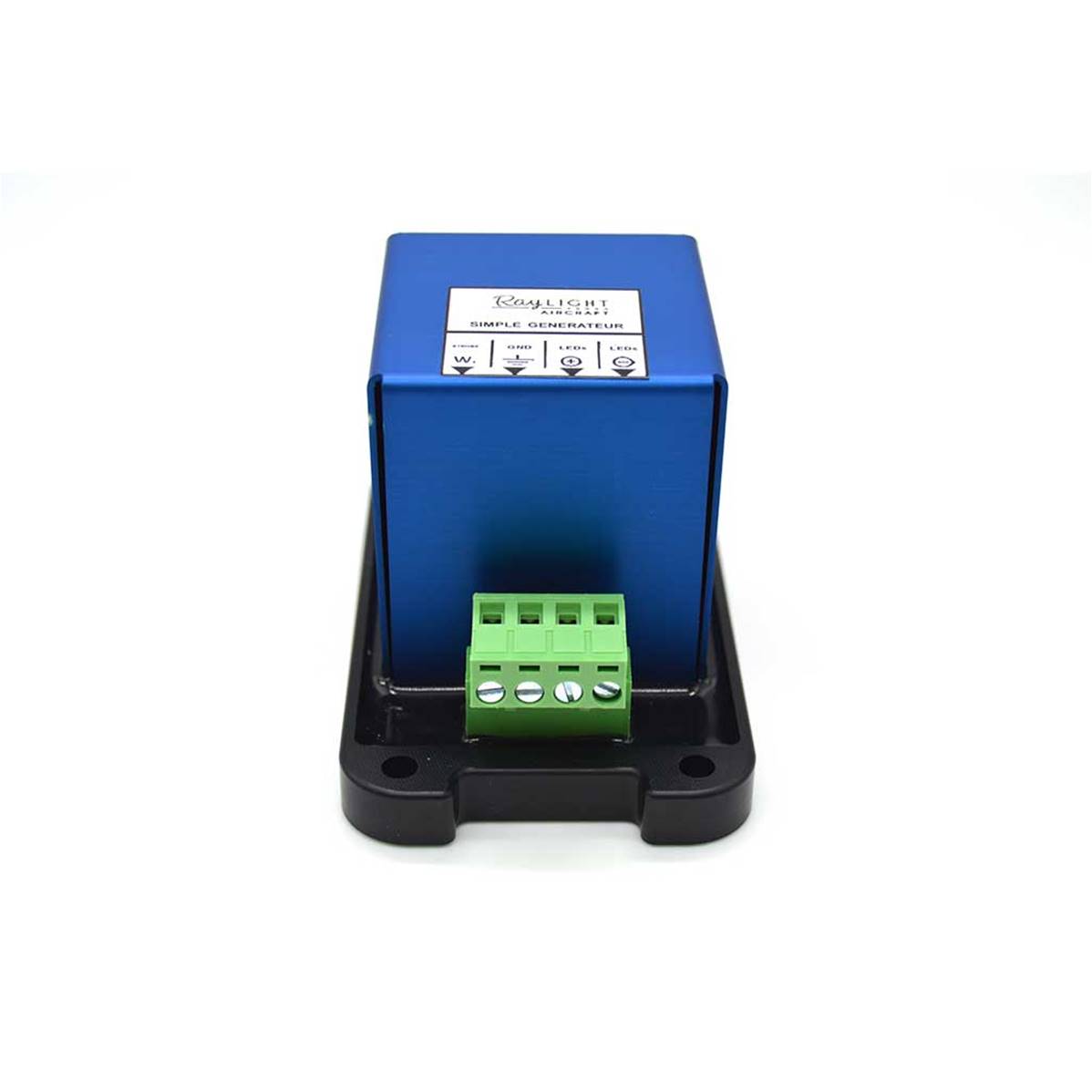

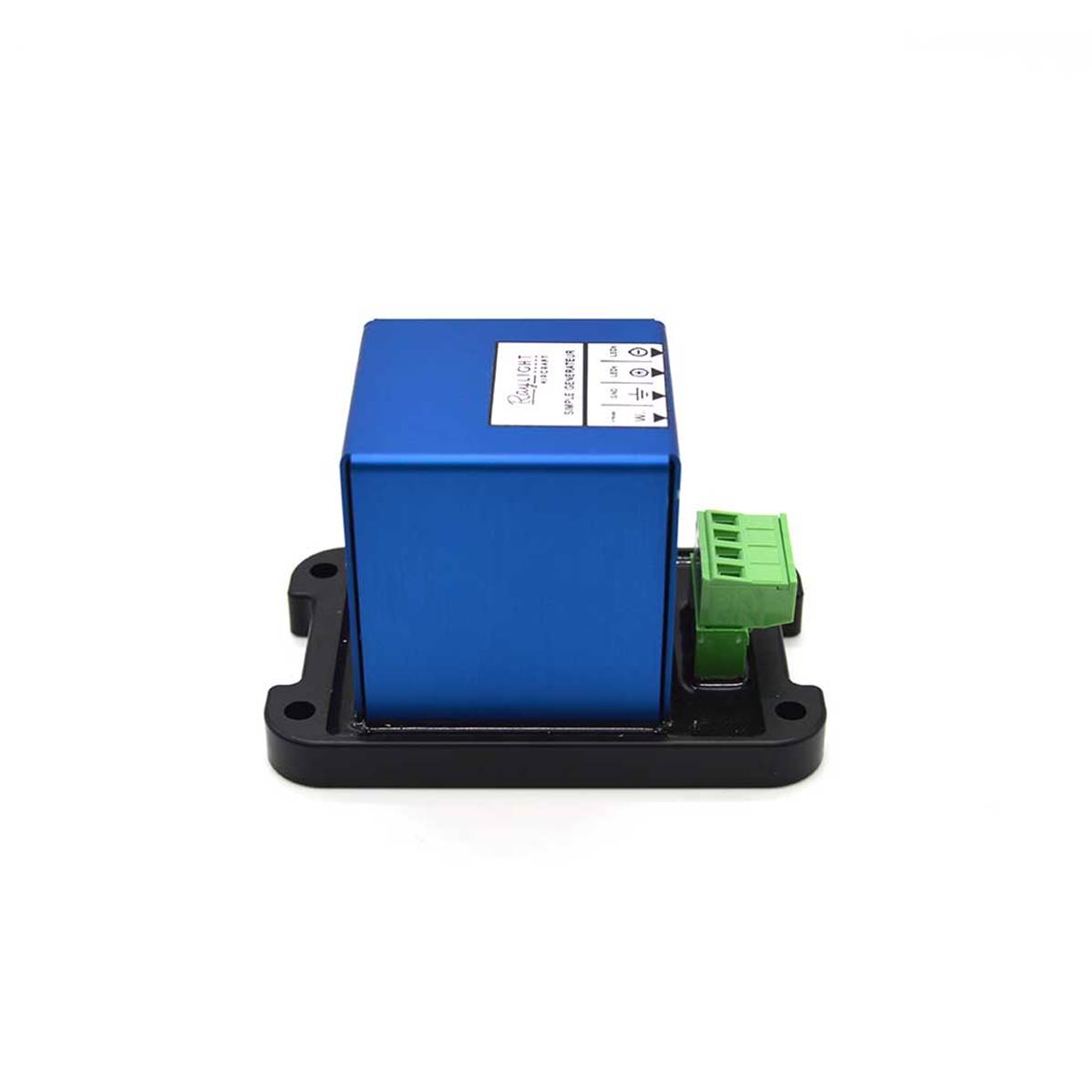

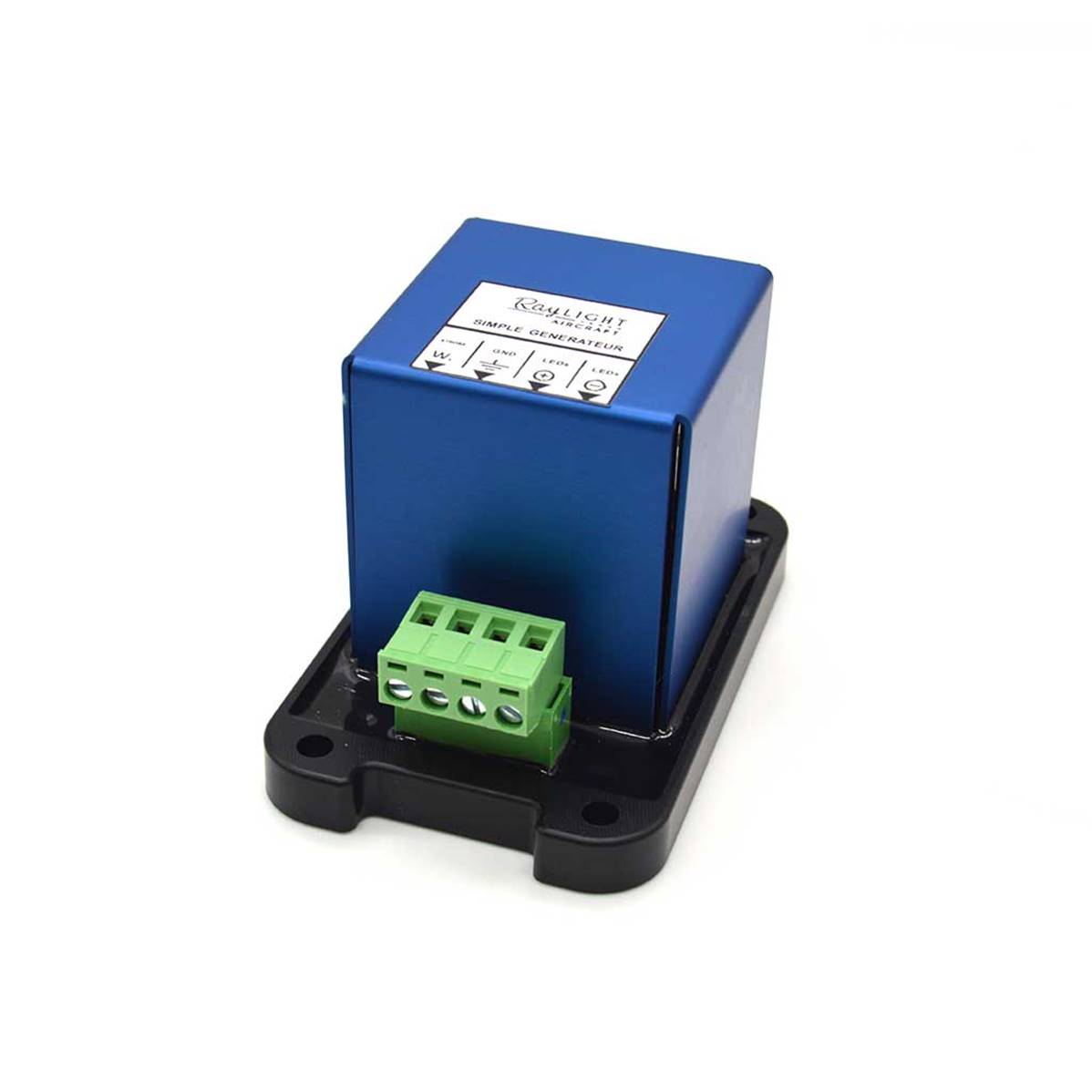

The lighting system is very light: 38g (excluding generator) and aerodynamic.
The assembly is very simple and can be done on all types of ULMs such as 3-axis ULMs, helicopters, pendulars, gyrocopters, gliders etc....
In short, HERA strobes (strobes) benefit from the following advantages:
- Most powerful flash on the market
- Lowconsumption and sustainable product
- Very light (182 grams the generator + 38 grams the strobe)
- No radio interference thanks to the innovative Raylight system
- No stress on the length and cross section of the 12V wires
- Easyassemblyin 8 steps
- Waterproof and dustproof
- Design and aerodynamic profile.
- Resistant and replaceable polycarbonate glass glass with anti-UV treatment
- Designed and produced in France
- 2 year warranty
TERMS OF USE
We recommend the use of Raylight strobe/navigation light devices at a temperature between -40° and 70°Celsius.
We recommend the use of the generator associated with lighting devices in an environment between -40° and 85° Celsius. NB: The lifetime of the generator can be improved if the ambient temperature is 65° Celsius (85° Celsius in use): the lifetime increases to 5000 hours.
The generator must be protected from humidity (cockpit).
Avoid any impact and do not drown the devices.
Check the tightening torque carefully (tighten with a screwdriver without forcing, do not use a screwdriver). The correct cable cross-sections must be used according to the technical specifications (0.25 to 0.75 mm², 0.5mm² recommended).
The voltage must not exceed 20 volts.
