Back-up system for OBLO

Name: Back-up system for OBLO
Brand: Flybox
SKU: 62078-09
Price: 154.8 EUR
Availability: InStock

Flybox

(Code: 62078-09)

In Stock

(3 Item(s) In Stock)

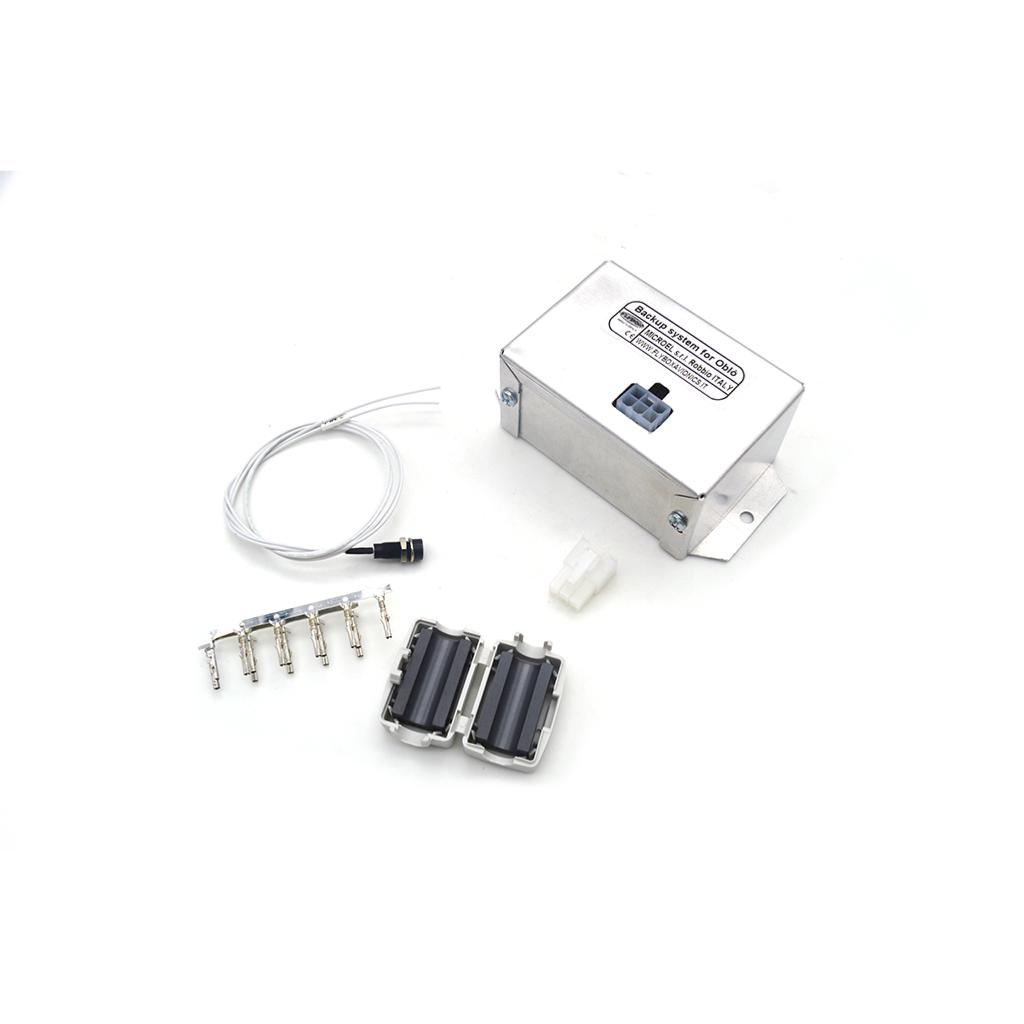

Back up battery for Oblò

154.80 €

30g

FLYBOX Instrument : Backup Battery for OBLO

START-UP PROCEDURE

Prior to turning on the aircraft master switch, turn on any equipment that derives power from the backup system. In this way you can check the correct operating of the backup system and you can check that the internal battery is not fully discharged
Turn on the aircraft master switch and ensure that equipments connected to the backup system remains energized
Continue with the normal start-up operating procedures.

SHUT-DOWN PROCEDURE :

Shut down aircraft engine using normal procedures.
Shut down the aircraft master switch and verify that equipments connected tothe backup system remains energized.
Turn off the equipments connected to the backup system.

TECHNICAL SPECIFICATIONS :

- Dimensions : 105 x 57.2 x H43mm

- Weight : 220g

- Operating temperature range : -10 + 60°C

- Charge operating temperature of the internal battery pack : 0 - 45°C

- Supply voltage : 10 - 16 V

- Max continuous input current : 1 A

- Max continuous output current : 0.45 A

- Output voltage : 10 - 12 V during backup operation

- Batteries : internal Ni-Mh battery pack

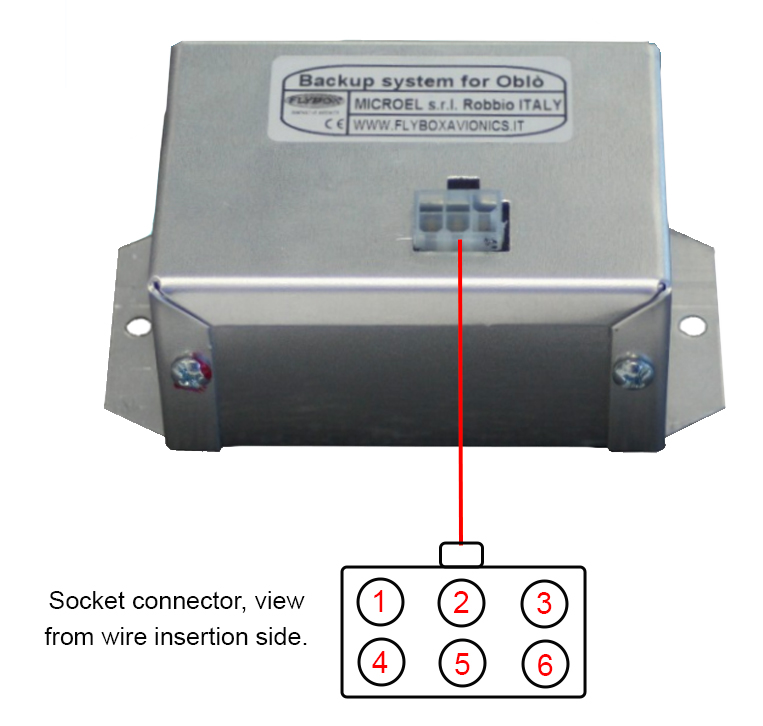

- Electrical connections using 6-poles Molex minifit-jr connector (included)

WARNING LED NOTIFICATIONS :

- Lights up for 3 seconds when power supply is applied : correct operation.

- 4 flashes followed by a pause : battery temperature outside the operating limits.

- 2, 3, 5 or 6 flashes followed by a pause :

internal battery faults ;
