Omnia ALTI-VARIO

Flybox
(Code: 62210-03-57)
In Stock
(2 Item(s) In Stock)
Diamètre :
447.60 €
200g
DESCRIPTION
OVERVIEW
SPECIFICITIES
Omnia ALTI-VARIO is a compact and reliable instrument that integrates a precise and calibrated sensor to measure the aircraft altitude up to 25.000 ft. A graphic variometer is shown in the main screen.

All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.

Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.

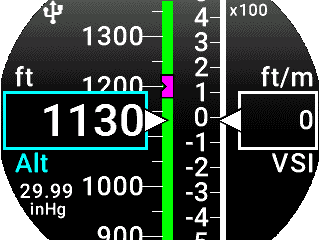

Main screen tape like with Altimeter and VSI indications
Omnia ALTI-VARIO

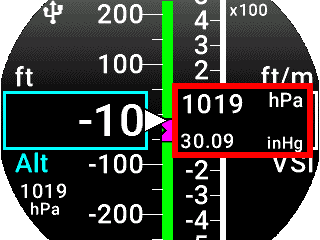

The pressure reference is shown in both
hPa and inHg
Omnia Altimètre - Variomètre

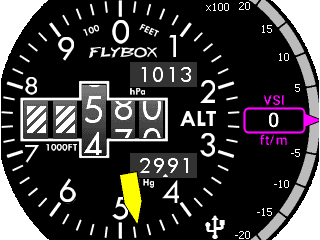

Main screen needle like with Altimeter and VSI indications
Omnia Altimètre - Variomètre

Indication:

  • Altimètre
  • Vertical speed indicator

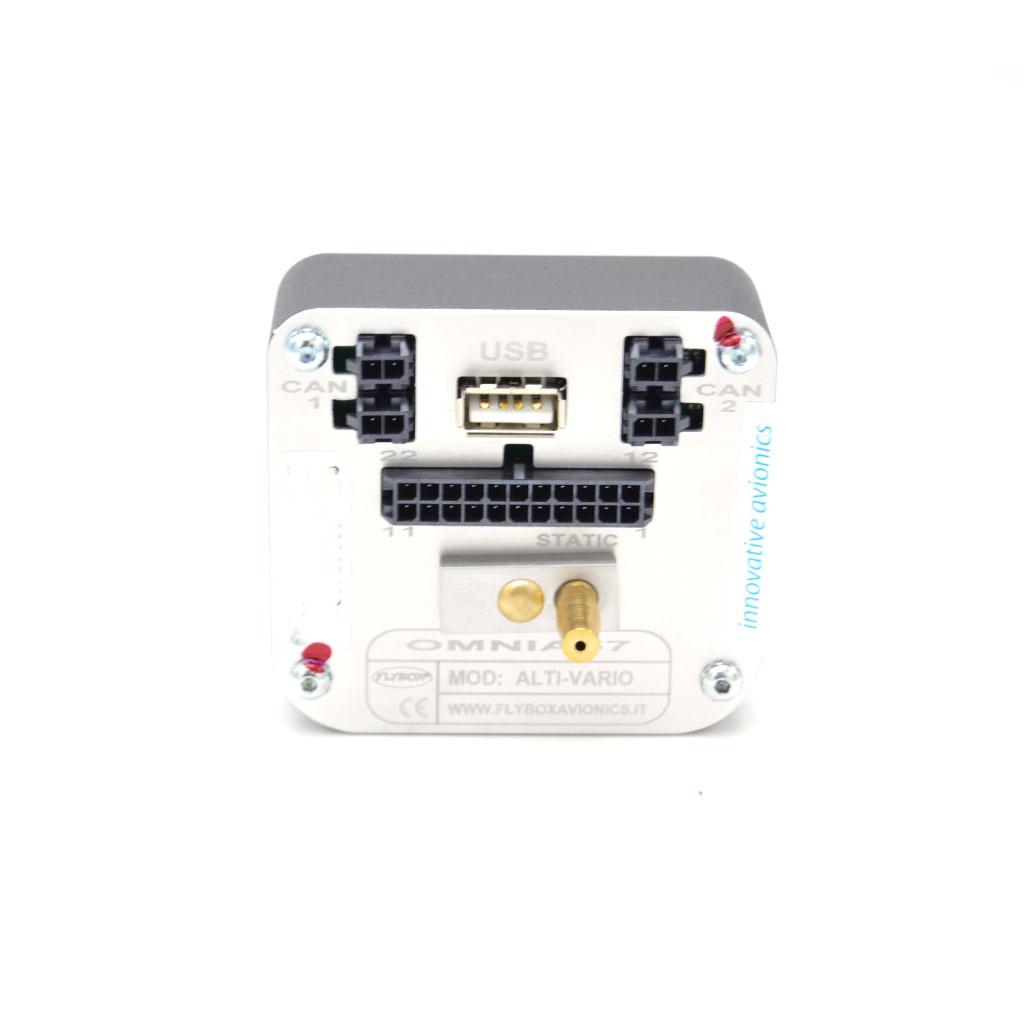

Interfaces:

  • Knob with pushbutton
  • 2 CAN bus
  • Light sensor input
  • USB 2.0 port
  • Static port
  • Can be connected in cluster with other Omnia instruments

Manufacturing

  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes

Functions:

  • Customizable color tape
  • Settable bug on the altitude tape
  • VSI tape indicator
  • Manual or Automatic Backlight dimmer
  • Easy software updating through the USB port


Technical specifications :

  • 2.4" color graphic LCD 320x240 pixels with 1000 nits backlight

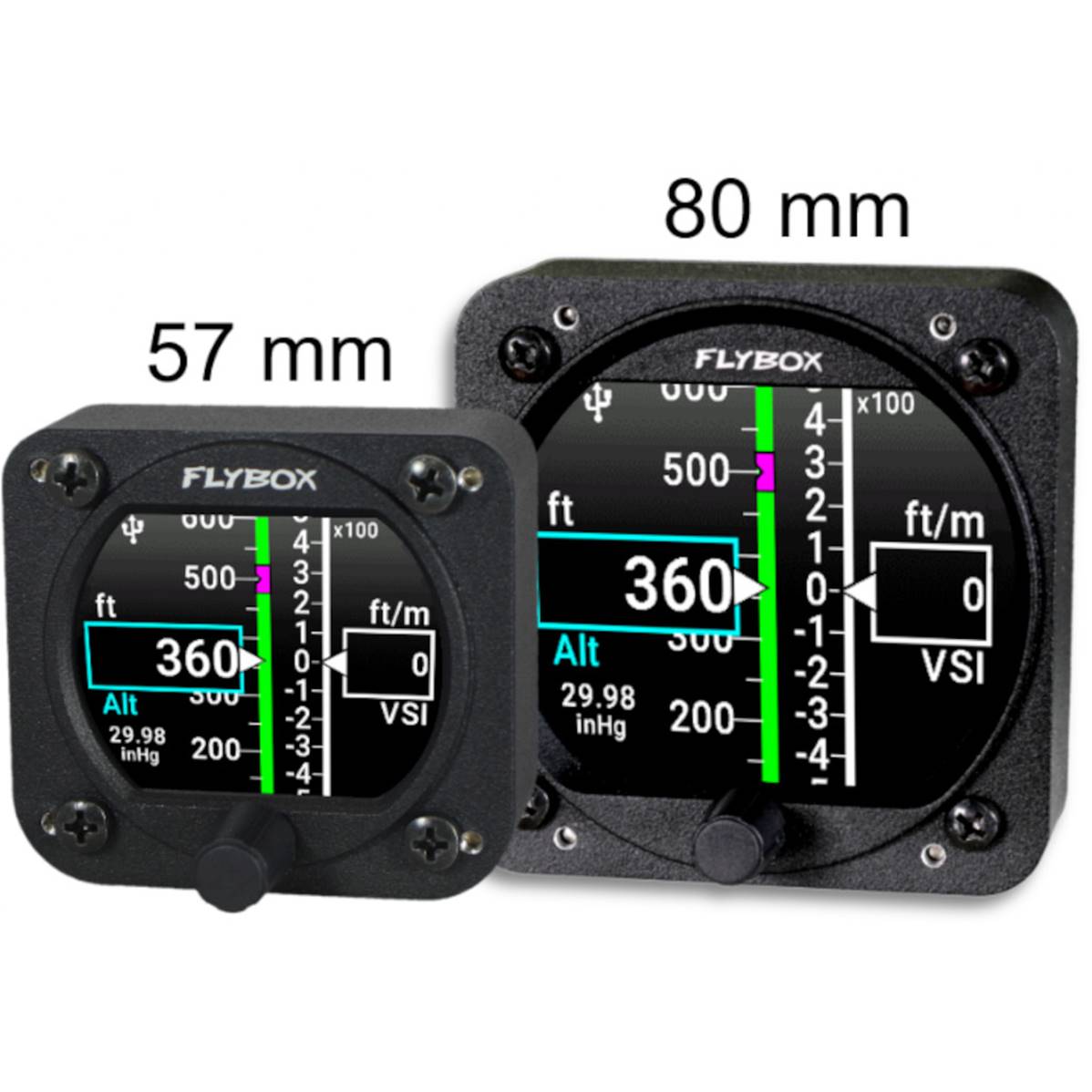

  • Standard mounting 2-1/4” 57mm and 3-1/8” 80mm.
  • Dimensions: 68x62x35mm (57), 85x85x40mm (80).
  • Supply current: 60mA (57), 135mA (80)
  • Poids: 140g. (57), 230g. (80)
  • Altitude range: -1000’/+25000’
  • 1 alarm output 300mA
  • Operating temperature range: -20 ~ +70°C.
  • 1 alarm output 300mA
  • Humidity: 90% max
  • Communication through 2 CAN bus.
