Omnia Fuel L-P

Flybox
(Code: 62210-06-57)
In Stock
(1 Item(s) In Stock)
Diamètre :
369.60 €
200g
DESCRIPTION
OVERVIEW
SPECIFICITIES
Omnia Fuel L-P can display up to 4 fuel tank levels that can be enabled individually to suit your needs.
The instrument is fully customizable to fit the overwhelming majority of the existing fuel probe sender.
Omnia Fuel L-P can show the fuel pressure too, reading it from optional probe.

All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.

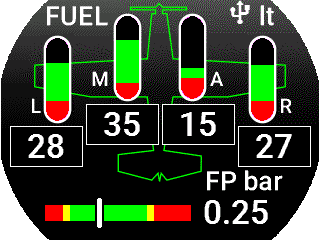

Configured for 4 fuel tanks
Omnia Fuel L-P

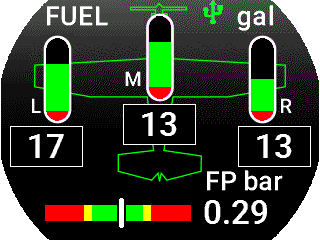

Configured for 3 fuel tanks
Omnia Fuel L-P

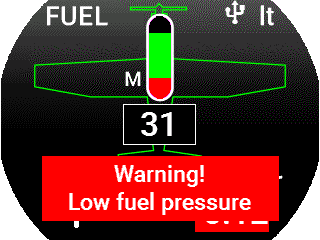

Configured for 1 tank + alarm
Omnia Fuel L-P

Indication:

  • 4 fuel level inputs for resistive or capacitive probes
  • 1 Fuel pressure input

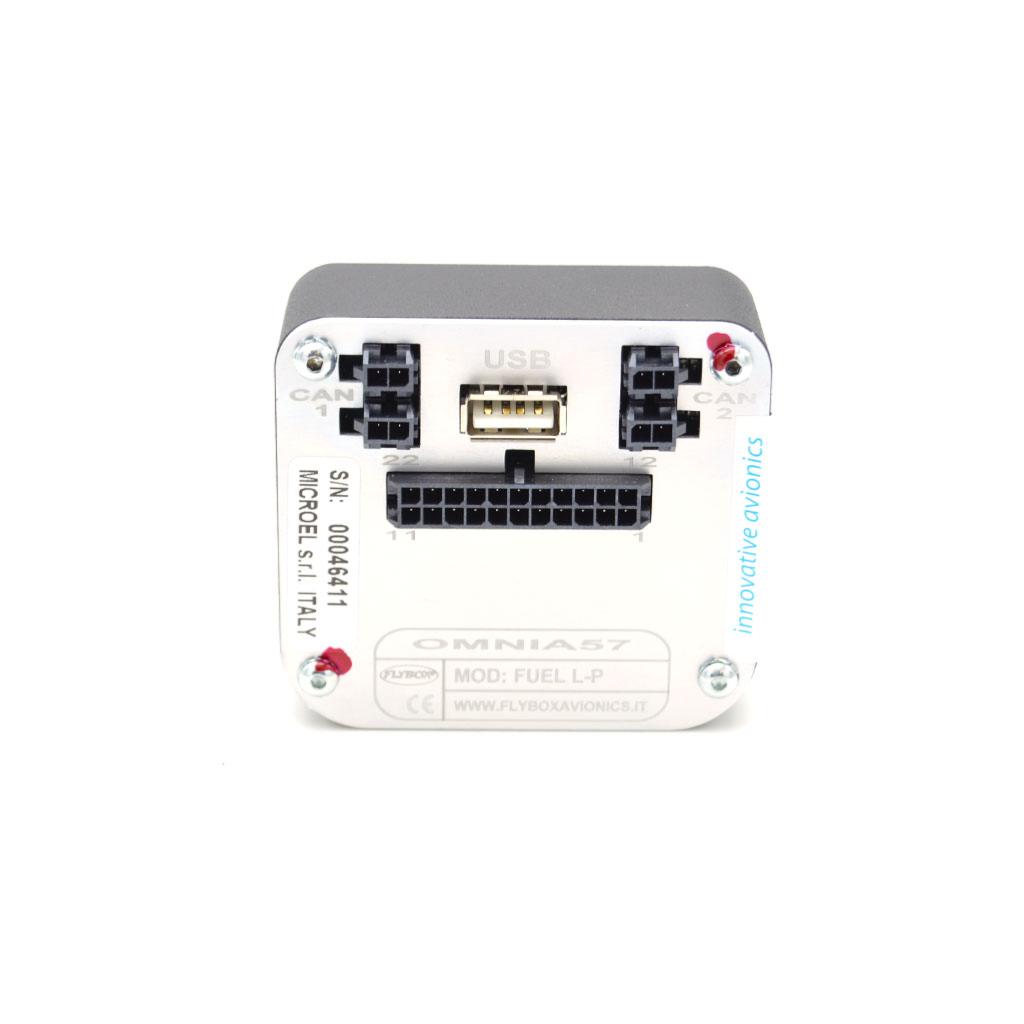

Interfaces:

  • Knob with pushbutton
  • 2 CAN bus
  • Light Sensor input
  • USB 2.0 port
  • Can be connected in cluster with other Omnia instruments

Manufacturing:

  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes

Functions:

  • Visual Alarm on screen
  • Transistor Alarm output
  • Manual or Automatic Backlight dimmer
  • Easy software updating through the USB port

Technical specifications:

  • 2.4" color graphic LCD with 320x240 color display with 1000 nits backlight

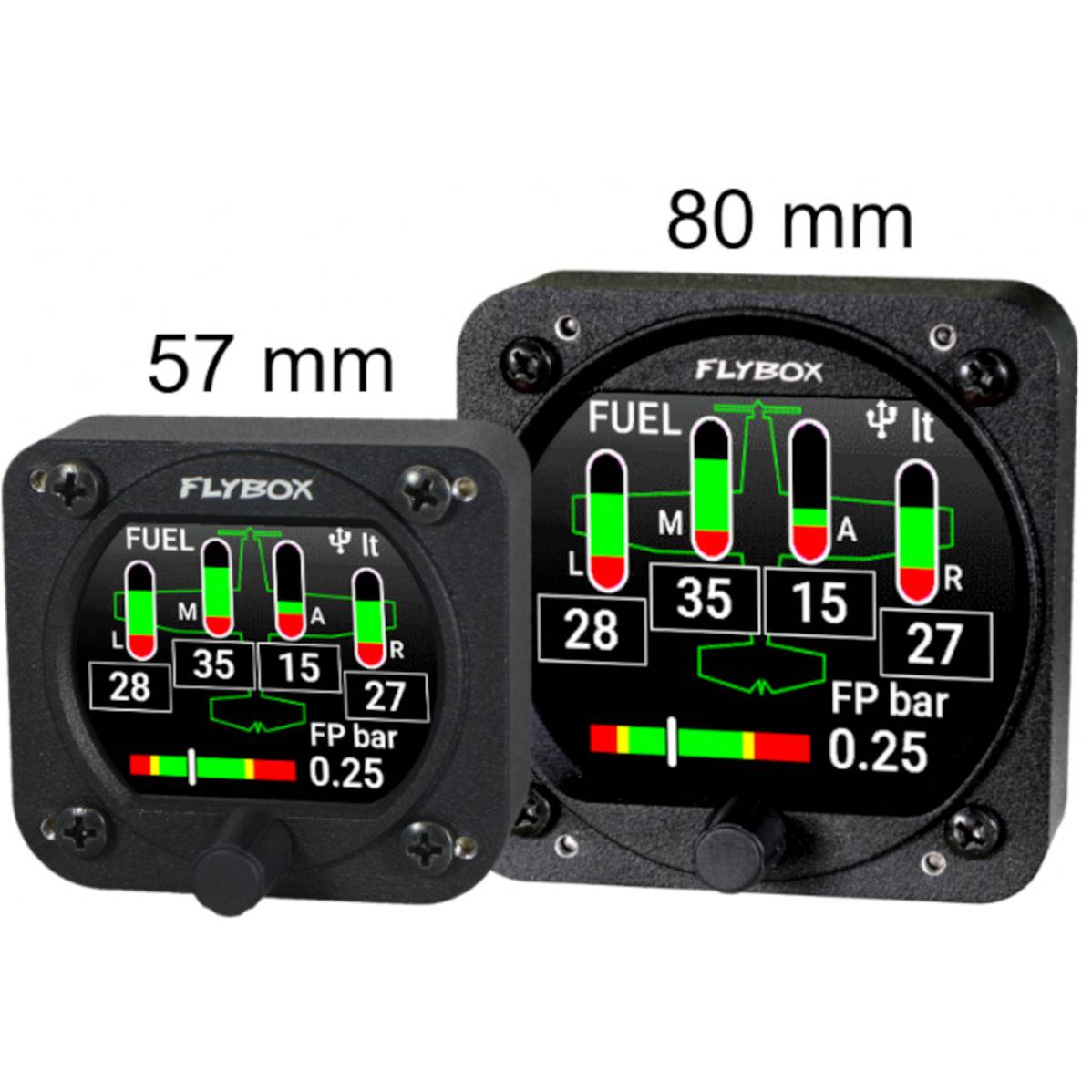

  • Standard mounting 2-1/4" 57mm and 3-1/8" 80mm.
  • Aluminum housing
  • Dimensions: 68x62x35mm (57), 85x85x40mm (80).
  • Weight: 140g. (57), 230g. (80)
  • Operating temperature range: -20 ~ + 70 ° C
  • Supply voltage: 10 ~ 30 V=.
  • Supply current: 60mA (57), 135mA (80).
  • 4 fuel level sensors input for resistive (300 ohm max) or capacitive (0~5 Volt) sensors.
  • 1 analog input for fuel pressure sensor 0-5V
  • 1 alarm output 300mA
