Omnia G-METER

Flybox
(Code: 62210-12-57)
In Stock
(1 Item(s) In Stock)
Diamètre :
399.60 €
200g
DESCRIPTION
OVERVIEW
SPECIFICITIES
Omnia G-METER is a compact and reliable instrument that integrates a G-METER and a Slip Indicator. It can be configured with 3 different full scales, up to +8/-4G.

All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.

Omnia G-METER can be interfaced with the Rotax engines "i" series through the CAN bus.
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.
Main page with full scale set to +4/-2 G
Main page with full scale set to +6/-3 G
Main page with full scale set to +8/-4 G
Omnia G-METER
Omnia G-METER
Omnia G-METER
Easy calibration after installation.
Instantaneous alarm with peak memories.
Omnia G-METER
Omnia G-METER

Indication:

  • G-Meter
  • Slip Indicator

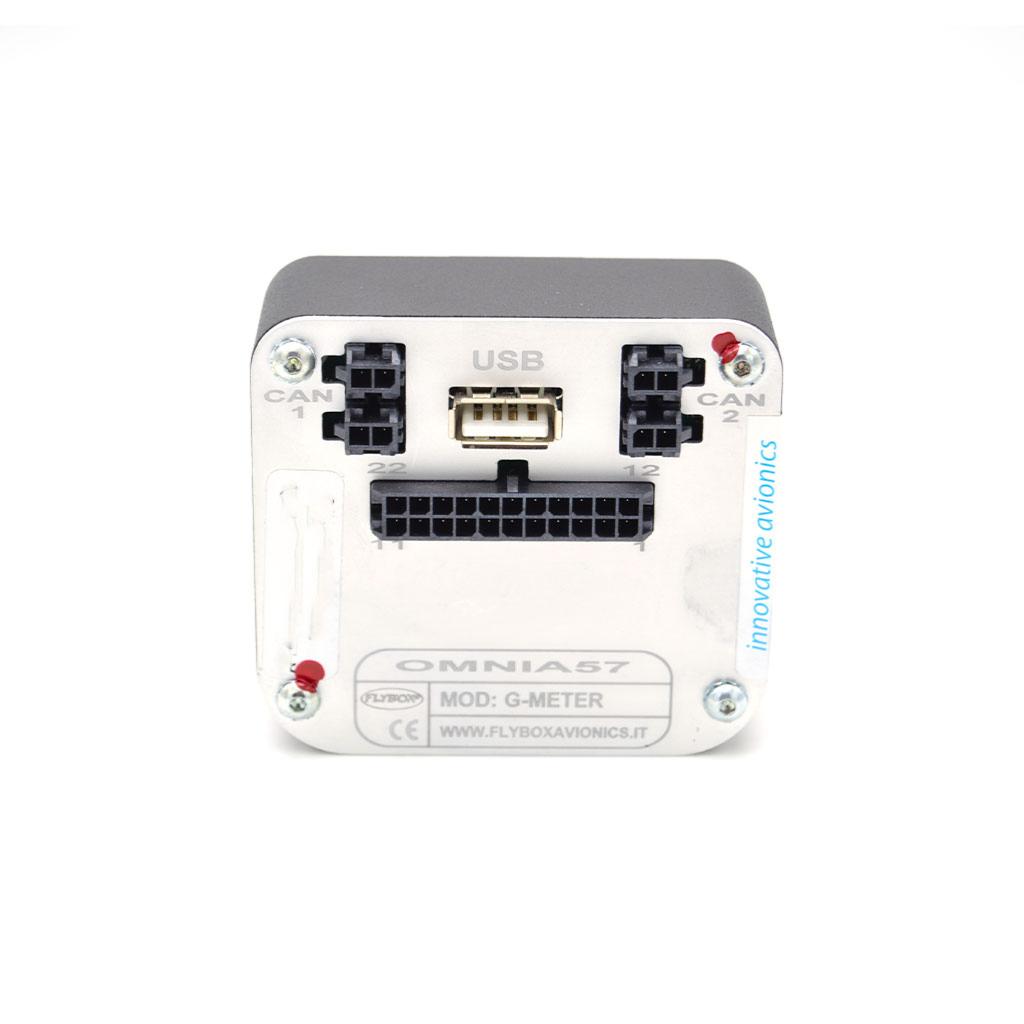

Interfaces:

  • Knob with pushbutton
  • 2 CAN bus
  • Light Sensor input
  • USB 2.0 port
  • Can be connected in cluster with other Omnia instruments

Manufacturing:

  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes

Functions:

  • Settable Alarm
  • Manual or Automatic Backlight dimmer
  • Easy software updating through the USB port

Technical specifications:

  • 2.4" color graphic LCD 320x240 pixels with 1000 nits backlight.
  • Standard mounting 2-1/4” 57mm and 3-1/8” 80mm.
  • Powder painted aluminium case.
  • Dimensions: 68x62x35mm (57), 85x85x40mm (80).
  • Weight: 140g. (57), 230g. (80)
  • Supply voltage: 10 ~ 30 V=.
  • Supply current: 60mA (57), 135mA (80).
  • Open-collector alarm output max 300mA,
  • Operating temperature range: -20 ~ +70°C.
  • Humidity: 90% max
