Omnia Oil P-T-CT

Flybox
(Code: 62210-02-57)
In Stock
(2 Item(s) In Stock)
Diamètre :
421.20 €
200g
DESCRIPTION
OVERVIEW
SPECIFICITIES
Omnia Oil P-T-CT combines three separated gauges that can be enabled individually to suit your needs.
The instrument is fully customizable to fit the overwhelming majority of the existing engines.

All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.

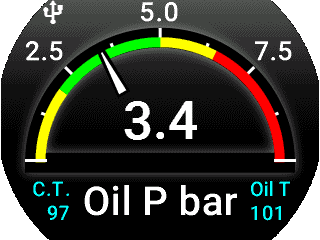

Oil pressure gauge

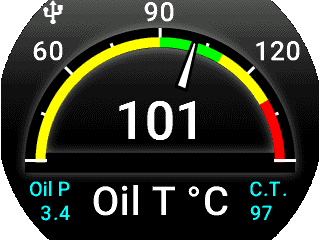

Oil Temperature gauge

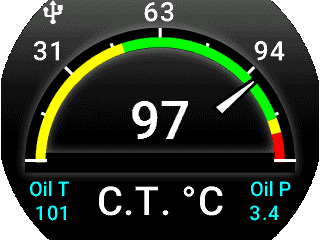

Coolant Temperature gauge

Indication:

  • Oil pressure
  • Oil temperature
  • Coolant temperature

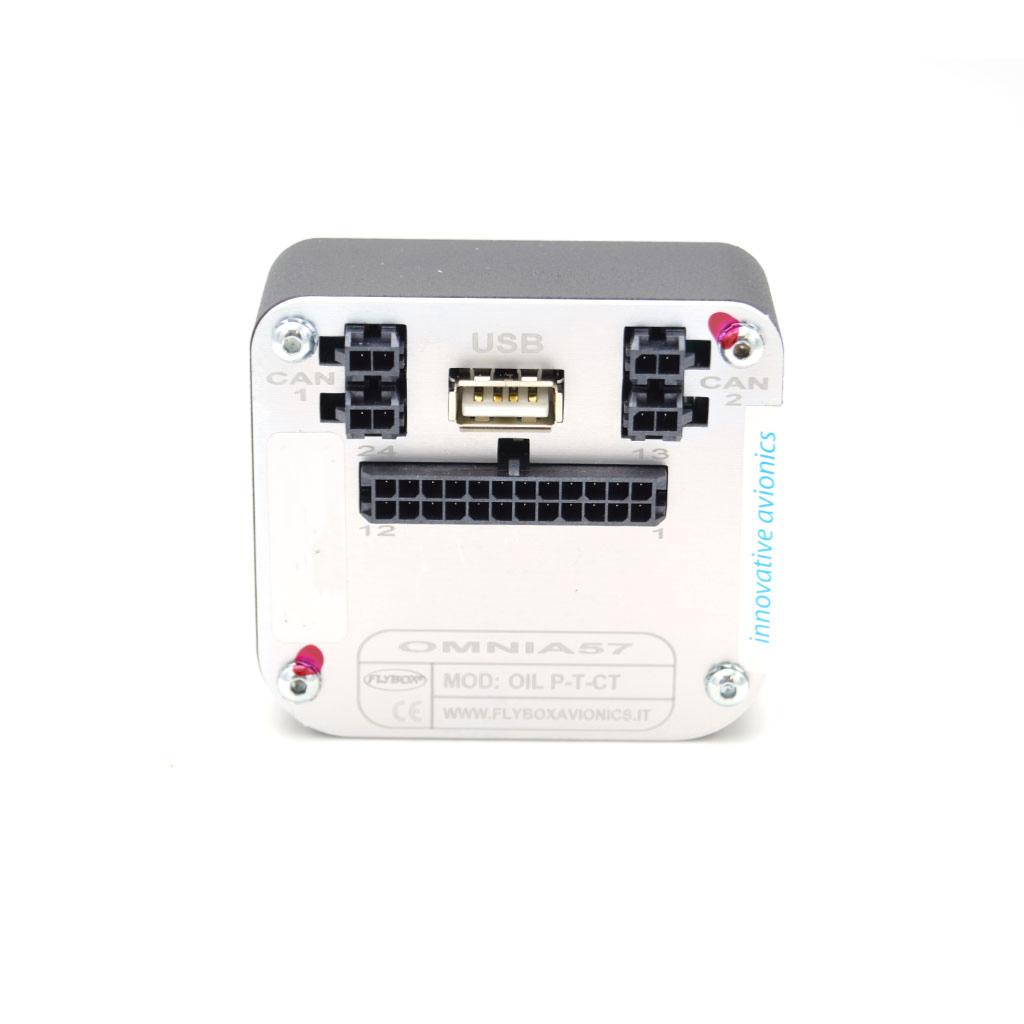

Interfaces:

  • Knob with pushbutton
  • 2 CAN bus
  • Light Sensor input
  • USB 2.0 port
  • Can be connected in cluster with other Omnia instruments

Manufacturing:

  • Rugged case milled from solid aluminium
  • Powder-painted
  • 100% manufactured and tested with automatic processes

Functions:

  • Visual Alarm on screen
  • Transistor Alarm output
  • Manual or Automatic Backlight dimmer
  • Manual or Automatic gauge selection
  • Easy software updating through the USB port

Technical specifications:

  • 2.4" color graphic LCD with 320x240 color display with 1000 nits backlight

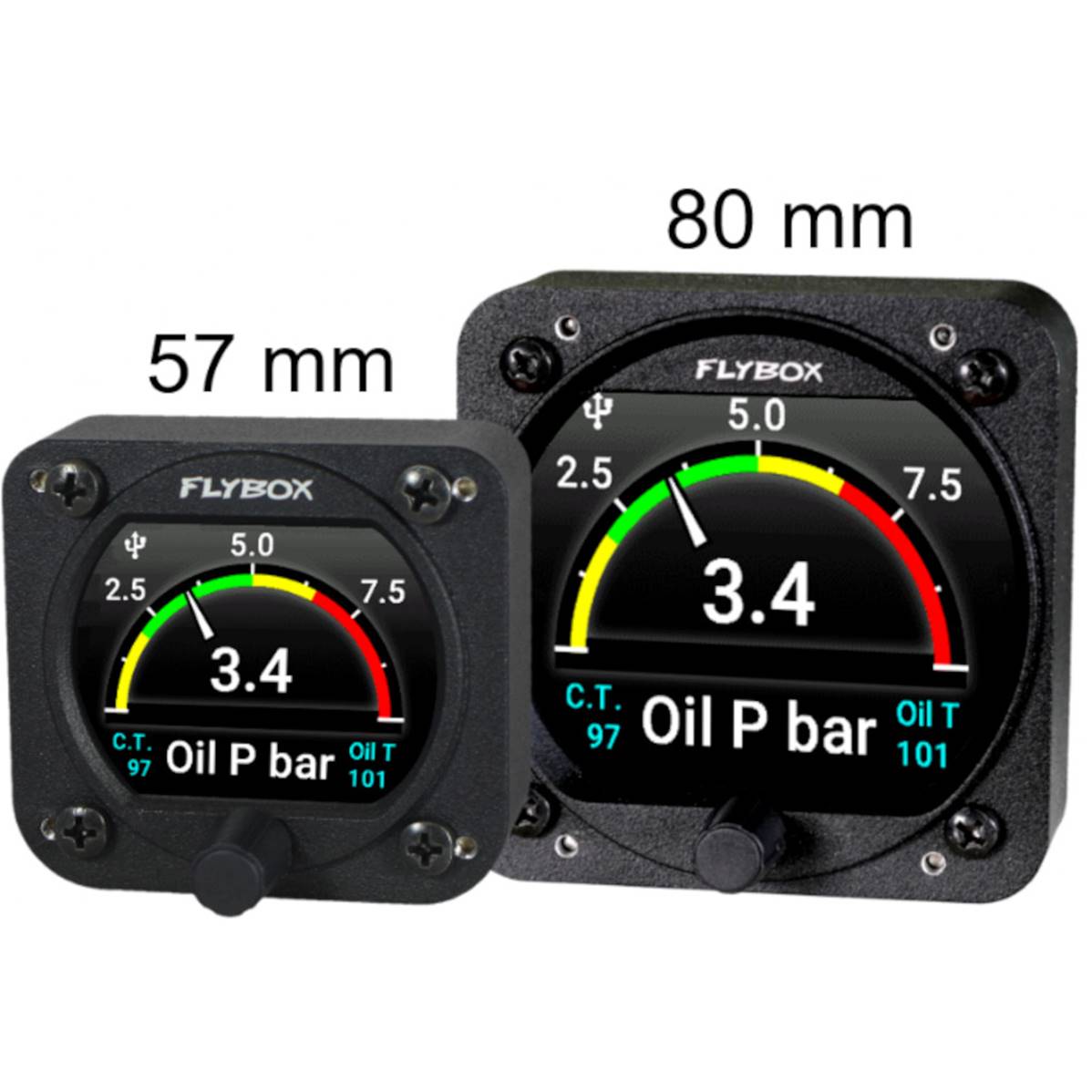

  • Standard 2-1/4" 57mm and 3-1/8" 80mm mounting
  • Aluminum housing
  • Body dimensions: 68x62x35mm (57), 85x85x40mm (80).
  • Weight: 140g. (57), 230g. (80)
  • Operating temperature range: -20 ~ + 70 ° C
  • Supply voltage: 10 ~ 30 VDC
  • Supply current: 60mA (57), 135mA (80)
  • 3 analog inputs for probes
  • 1 alarm output 300mA
