Omnia VOLT-AMP

Name: Omnia VOLT-AMP
Brand: Flybox
SKU: 62210-04-57
Price: 421.2 EUR
Availability: InStock

Flybox

(Code: 62210-04-57)

In Stock

(1 Item(s) In Stock)

421.20 €

200g

Add to cart

DESCRIPTION

OVERVIEW

SPECIFICITIES

Omnia VOLT-AMP is a Volt Meter, a double AMP meter and a safety instrument that diagnosis the state of the electrical power.

The instrument is fully customizable to fit almost any electrical systems.
The Omnia VOLT-AMP can be useful especially with injected engines that need a full time operation of the fuel pump when they are working. The system can alert on time in case of anomalies, enabling the pilot to react promptly.
All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32 bit microcontroller and the latest generation of solid state sensors and components to ensure reliability and accuracy over time.
Up to 16 Omnia family instruments can be connected in cluster to form a communication network, making some data exchange operations simpler.

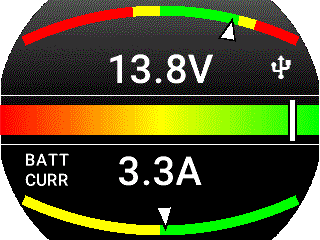

Volt Meter, double Amp Meter and diagnostic mode are enabled. In the picture the battery current is shown.

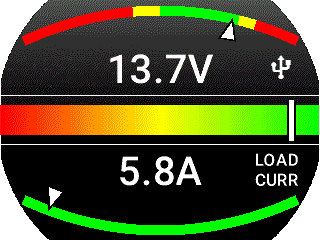

Volt Meter, double Amp Meter and diagnostic mode are enabled. In the picture the loads current is shown.

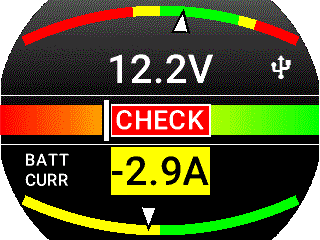

Diagnostic mode is enabled and the "CHECK" label is flashing because the voltage has dropped to 12.2V and only the battery is supplying current to the loads.

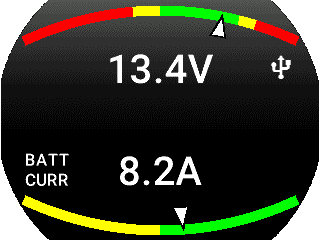

Volt Meter and battery current are enabled

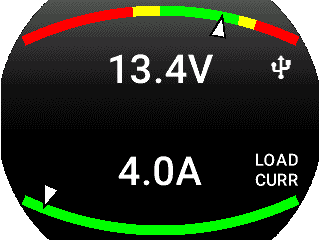

Volt Meter and loads current are enabled

Indication:

Volt Meter
Battery current
Loads current

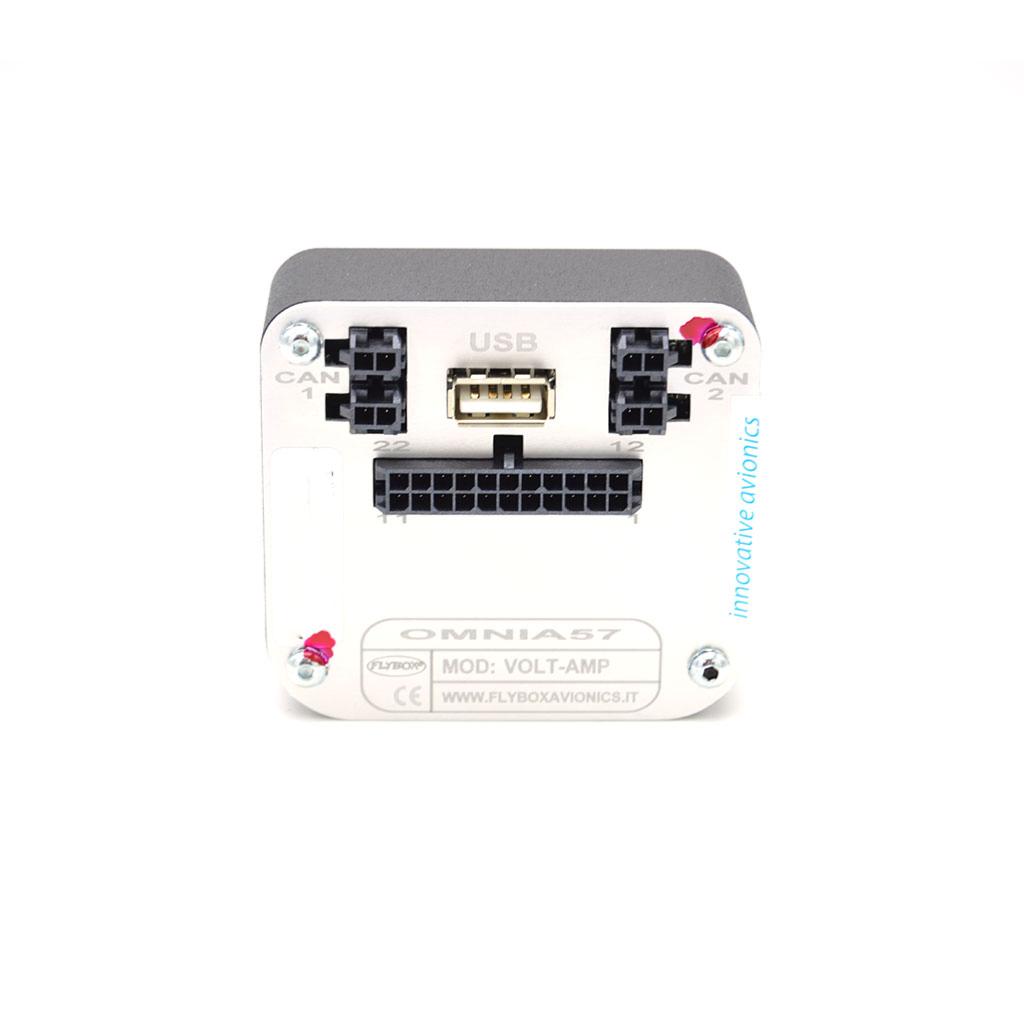

Interfaces:

Knob with pushbutton
2 CAN bus
Light Sensor input
USB 2.0 port
Can be connected in cluster with other Omnia instruments

Manufacturing:

Rugged case milled from solid aluminium
Powder-painted
100% manufactured and tested with automatic processes

Functions:

Visual Alarm on screen
Transistor Alarm output
Electrical system diagnostics
Manual or Automatic Backlight dimmer
Easy software updating through the USB port

Technical specifications:

2.4" color graphic LCD with 320x240 color display with 1000 nits backlight

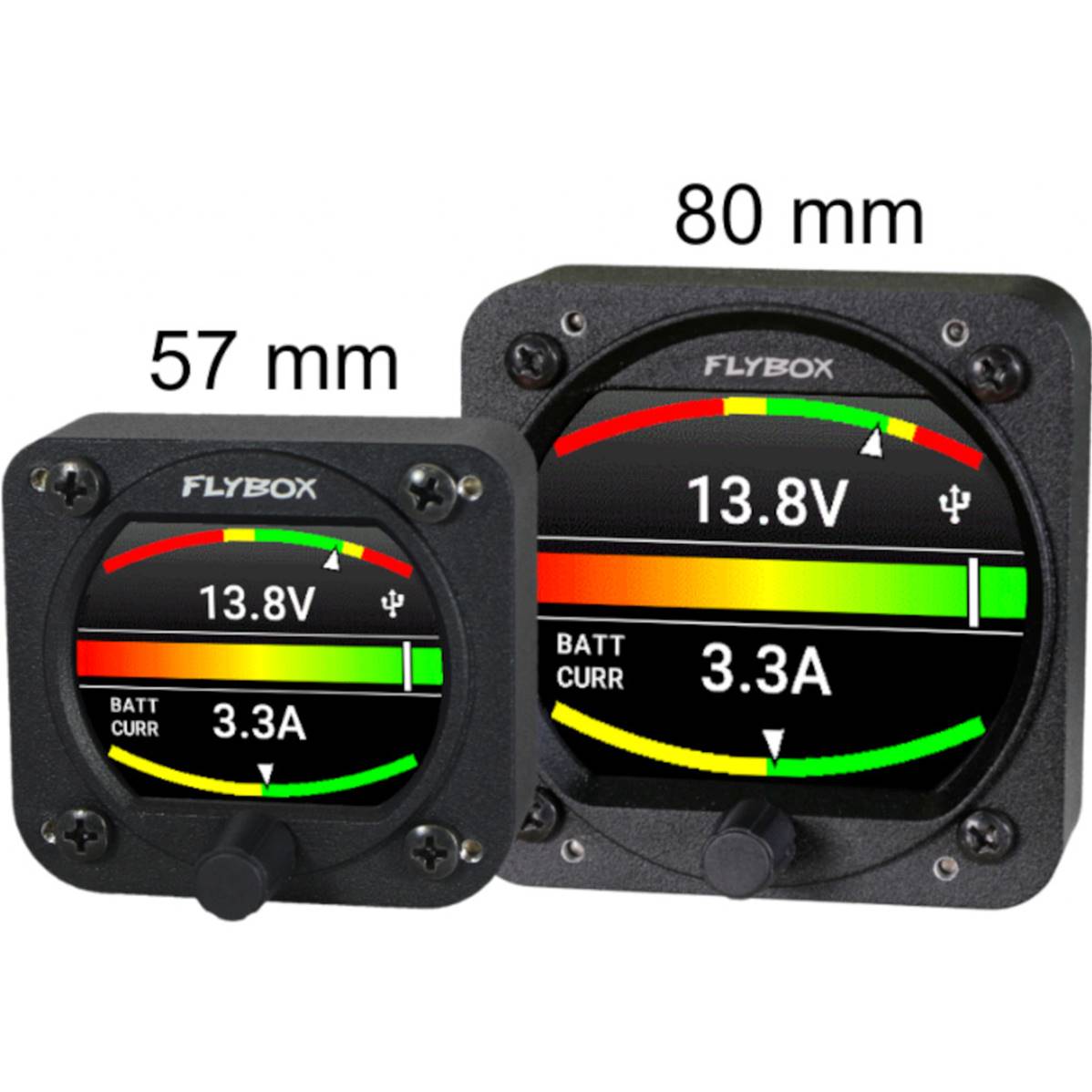

Standard mounting 2-1/4" 57mm and 3-1/8" 80mm.
Powder painted aluminium case.
Dimensions: 68x62x35mm (57), 85x85x40mm (80).
Weight: 140g. (57), 230g. (80)
3 analog input, one for voltage sensing and two for Flybox current sensors.
Supply voltage: 10 ~ 30 V=.
Courant d'alimentation: 60mA (57), 135mA (80).
Supply current: 60mA (57mm), 135mA (80mm).
Open-collector alarm output max 300mA
Operating temperature range: -20 ~ +70°C.
Humidity: 90% max
