SWIRL-2 Inconel twin-blade propeller, right - DUC Hélices

Name: SWIRL-2 Inconel twin-blade propeller, right - DUC Hélices
Brand: DUC Hélice
SKU: 74513-D
Price: 1764 EUR
Availability: OutOfStock

DUC Hélice

(Code: 74513-D)

Orders only

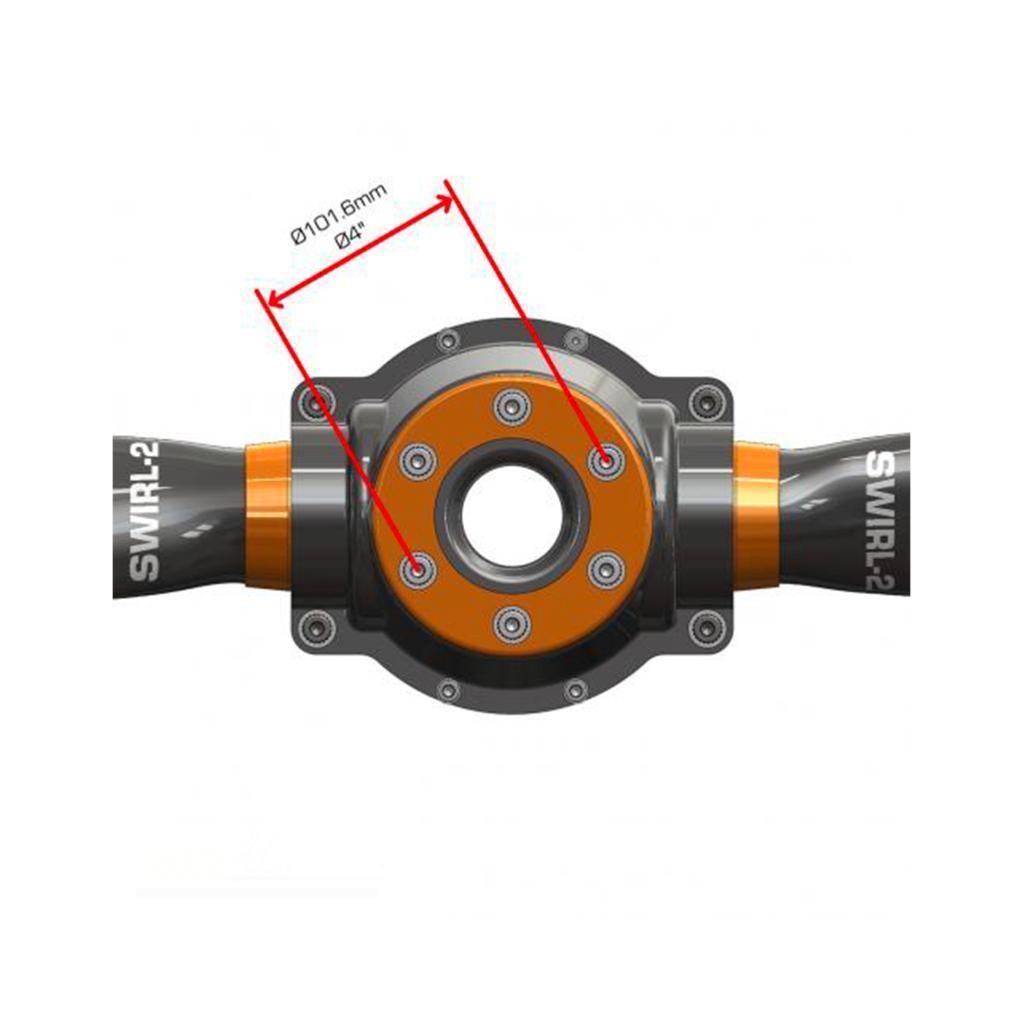

Compact hub Ø101.6mm (4") - Mounting 6 CHC M8 screws with 14mm pins

1,764.00 €

4200g

Add to cart

Description

Specifications

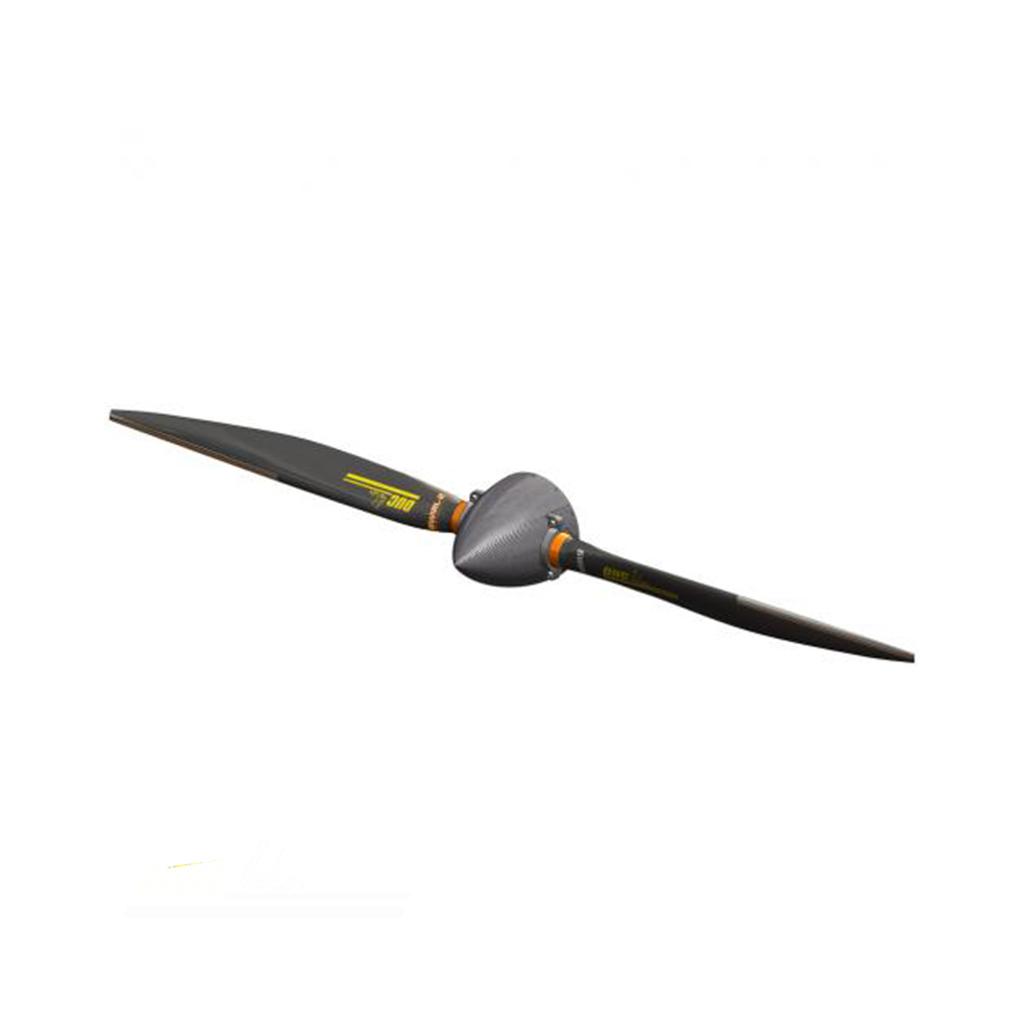

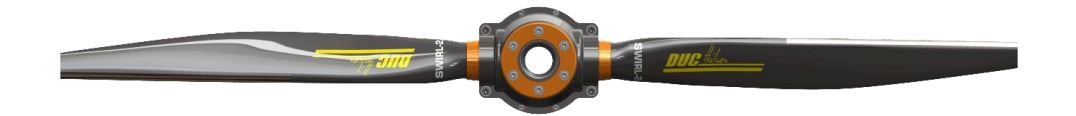

SWIRL-2 Inconel twin-blade propeller right - DUC Hélices

Innovatively designed specifically for direct-drive four-stroke engines, aimed at maximizing cruise performance.
Characterized by a pronounced constant speed effect and high efficiency, this design also aims to reduce fuel consumption and noise emissions.
The carbon composite blades and hub provide both lightweight and optimal inertia.
High-precision manufacturing ensures quality, with metal inserts integrated into the hub for increased durability.
Available in standard or compact versions to fit various configurations, including with a 210 mm diameter spinner cone.

No compromise on performance !

Optimization through Double Efficiency calculations :

→ High efficiency during takeoff

→ High efficiency during cruise

LSA Certification (ASTM F2506-10)
Rotation direction: clockwise
Diameters from Ø1620mm to Ø1900mm (Ø64 to Ø75 inches)
Two-blade - 3.20kg
Inconel® leading edge protection
Excellence version 'SWIRL-2-R'

Application

Three-axis tractor / LSA;
Aircraft Engine 80-125hp: Jabiru, UL Power, D-Motor, Continental, Lycoming
