SWIRL-2 Inconel twin-blade propeller, right - DUC Hélices

Name: SWIRL-2 Inconel twin-blade propeller, right - DUC Hélices
Brand: DUC Hélice
SKU: 74514-D
Price: 1710 EUR
Availability: OutOfStock

DUC Hélice

(Code: 74514-D)

Orders only

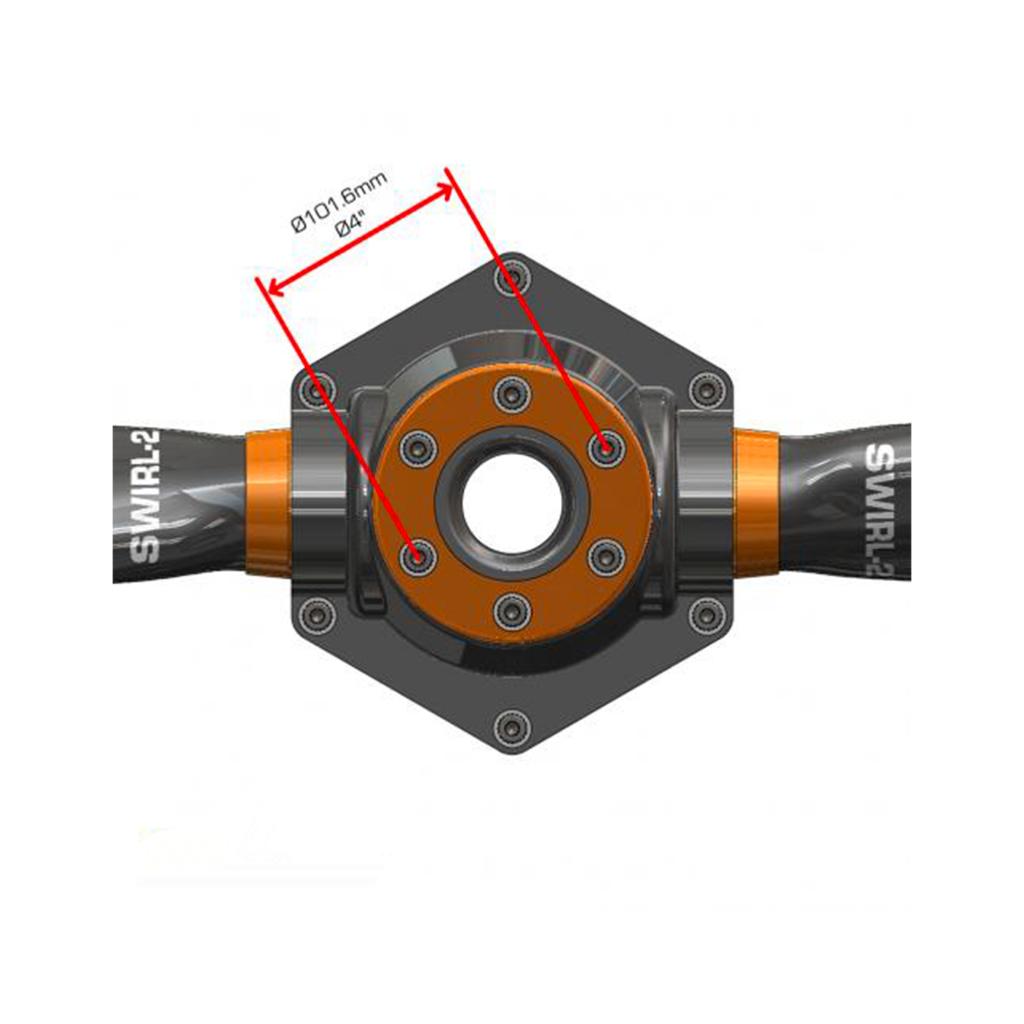

Hub Ø101.6mm (4") - Mounting 6 CHC M8 screws with 14mm pins

1,710.00 €

4200g

Add to cart

Description

Caractéristiques

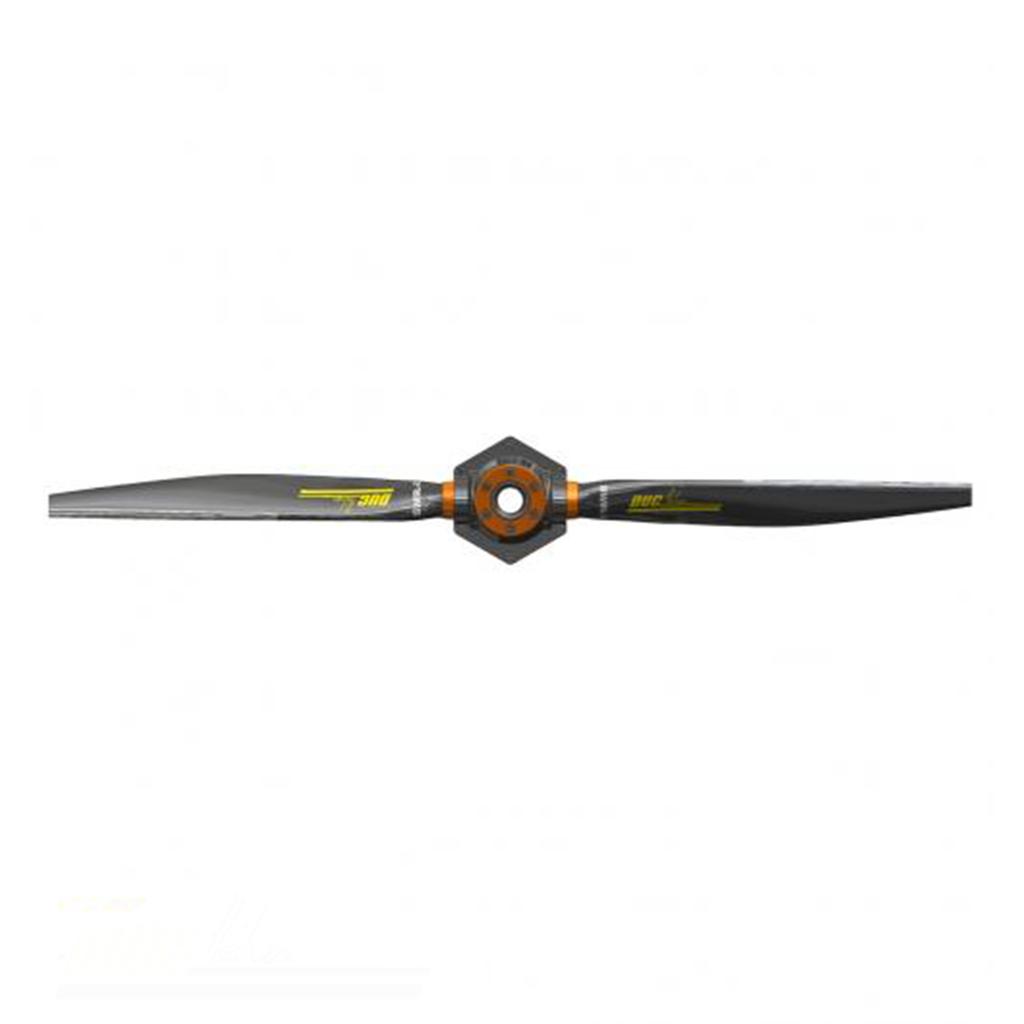

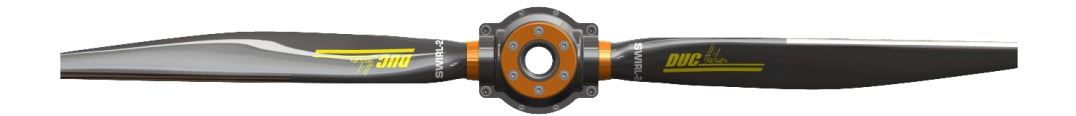

Two-blade SWIRL-2 right-hand propeller for 4-stroke engine - DUC Hélices

Two-blade propeller specifically for direct-drive 4-stroke engine :

New innovative design for extended range during cruise
Carbon composite blades and hub
Low weight & inertia
High precision manufacturing
Hub equipped with metal inserts
Hub available in standard or compact version (for Ø210mm spinner cone)

No compromise on performance !

Optimization through Double Efficiency calculations :

→ High efficiency during takeoff

→ High efficiency during cruise

Strong 'Constant speed' effect & high calculated efficiency
Low consumption & Reduction of noise pollution

LSA Certification (ASTM F2506-10)
Clockwise rotation
Two-blade 3.20 kg
Inconel® armored leading edge
Diameter from Ø1620 to Ø1900 mm (Ø64 inches to Ø75 inches)

Application

Three-axis tractor/LSA
Engines 80-125hp: Jabiru, UL Power, D-Motor, Continental, Lycoming, ...
