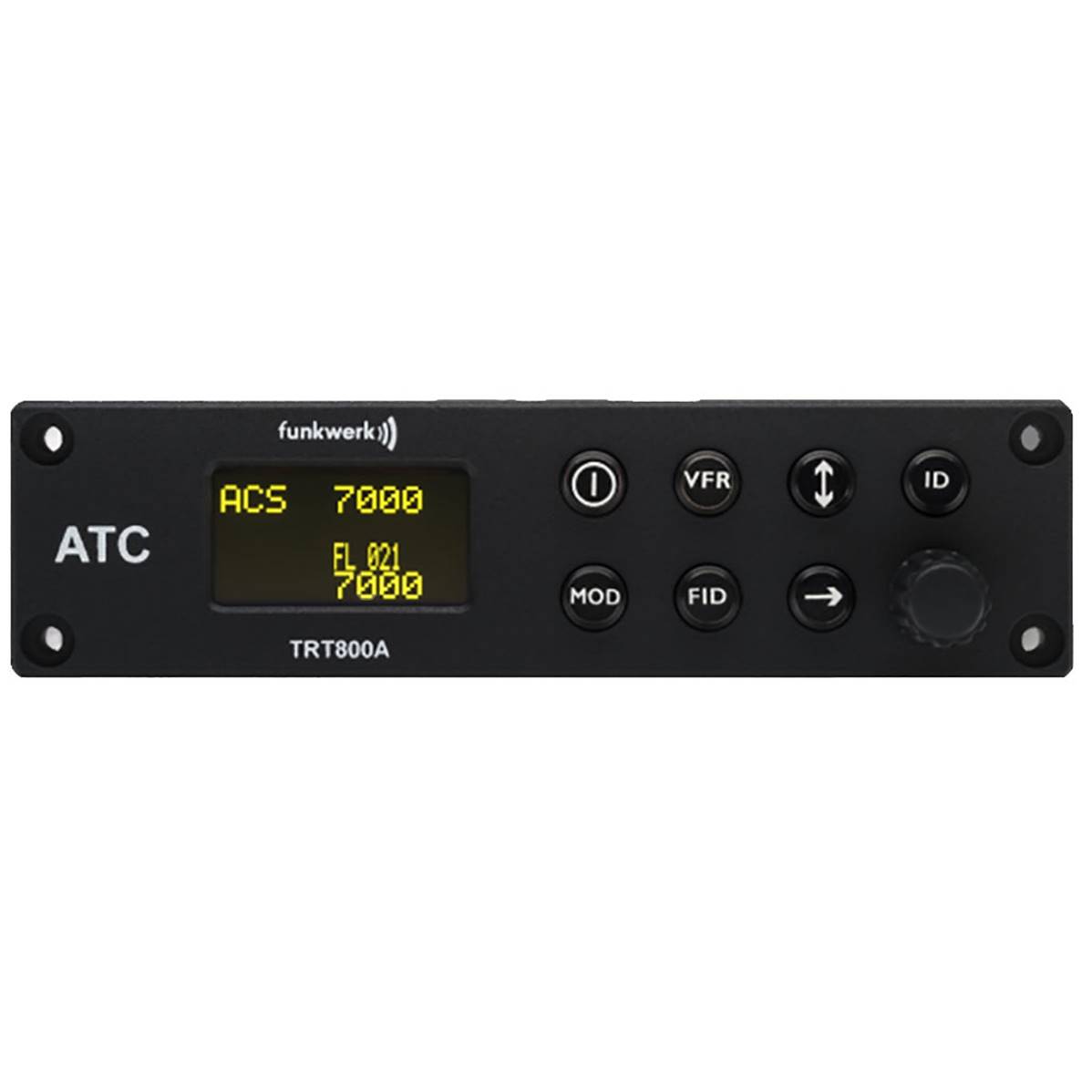

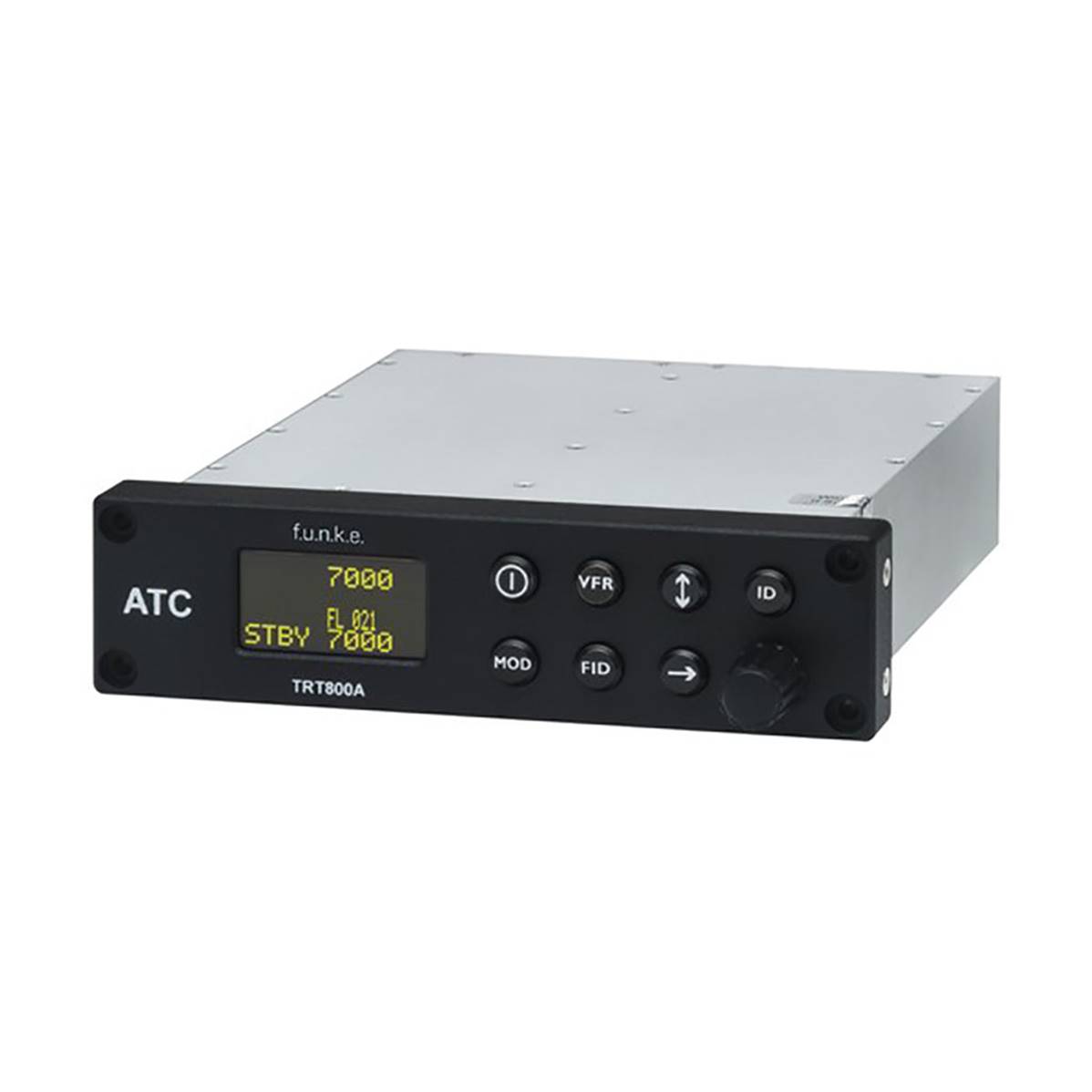

TRT800A transponder mode A-A/C and S. – Transponder certified EASA Class 1 – Certified for VFR and IFR flight – Equipped with “ADS-B” (Automatic Dependent Surveillance Broadcast) – “Extended Squitter” function – Connection to the GPS receiver with an optional adaptation cable – Mode A/C and Mode S – Altitude encoder integrated until 35000 ft – Easy to use – OLED screen with 4 lines, active and standby code, the operation mode, the flight level and alerts are displayed on the screen. Settable power saving mode – ICAO (24 bit) address selection adapter, type and flight number (Mode S) integrated – Storage until 8 different data sets. Standby and codes displayed. European homologation ETSO ED73B. Limitation to 5,7 T aircraft. Limitation to the FL350. Maximum speed 463 km/h. Sold with an altitude encoder integrated and the transponder cabling. Sold without antenna (ref: 81183) and antenna cabling (ref: 81184). Technical characteristics: Electric consumption <300mA. Power: 126 W – Antenna output power: 250W – Nominal tension: from 10,5 to 16 V. Supply: 13,75/27,5 V DC – Consumption: 0,2A on Mode S – 0,8 A on A/C. Dimensions: 160 x 41.3 x 176 mm. Weight: nearly 900 gr. Conformity: ED-79B EUROCAE, CS ETSO 2C112a. Class 1, Level 2es, non-diversity
