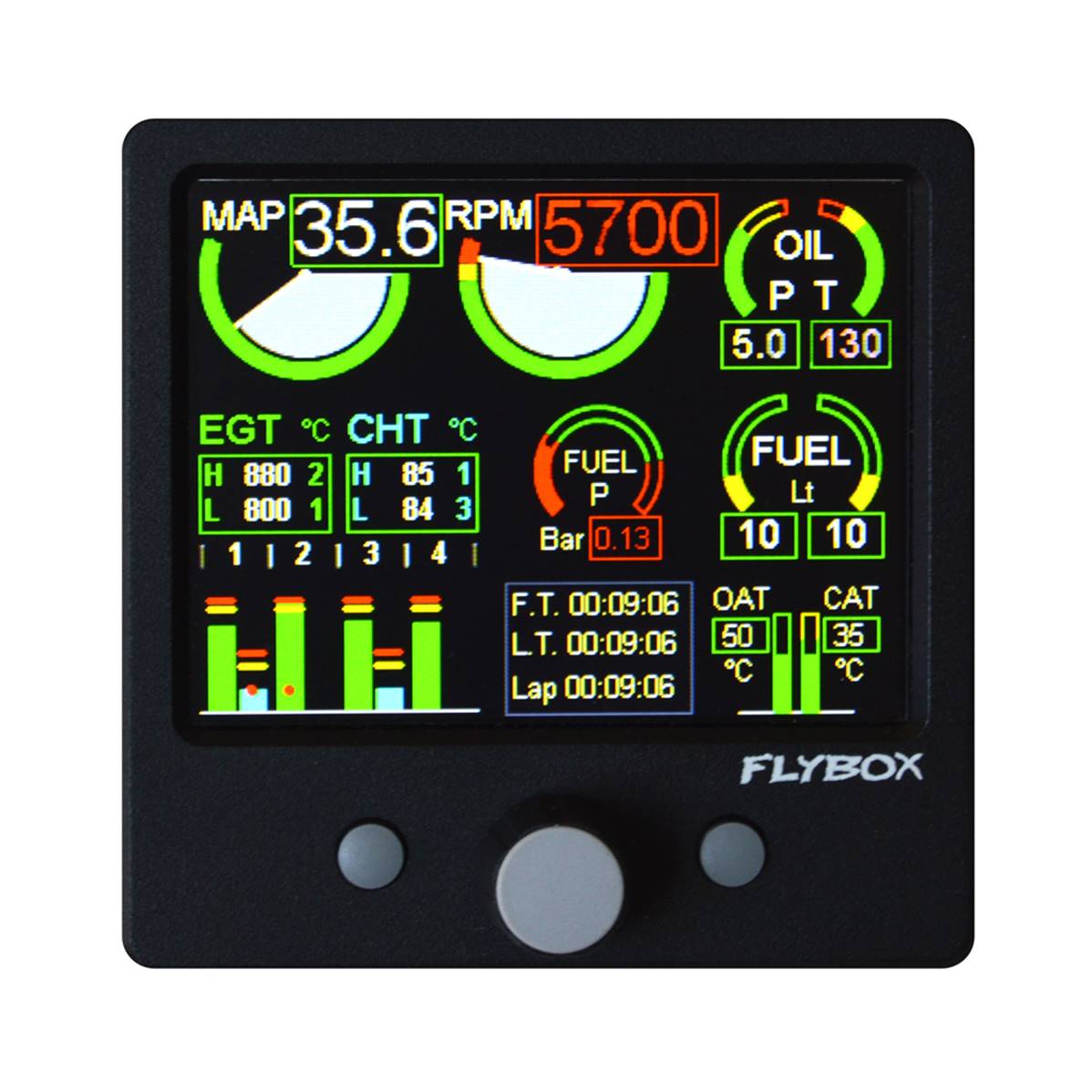

Motor specifications :
- Motor RPM
- MAP with integrated sensor
- Oil pressure
- Oil temperature
- 6 CHT inputs
- 6 EGT inputs
- Fuel pressure
- OAT (outside air temperature)
- CAT (carburetor air temperature / AirBox)
- Voltmeter
- Amperemeter
- Hour meter, also divided by time in green, yellow and red zones
-Peak speed memories (last flight speed peak and maximum speed ever reached)
- Flight timer
- Local time - UTC time (GPS connection required)
- 3 composite video inputs (with optional Video Grabber cod.653000)
- 2 inputs for remote switches
Fuel management features :
- Fuel calculator (fuel flow, endurane, remaining fuel, burnt fuel, range and reserve at destination). It is possible to activate 3 alarms for remaining fuel, vindange time and tank balancing. When a measurement falls below its destination point, the alarm is activated both on the display and/or on the entire audio output or voice alert.
The fuel computer functions will require the optional fuel computer activation key cod. 651055.
- 3 resistive and resistive fuel level sensor inputs
Other features:
- 200-hour data logger with integrated graphical data viewer and data export capability
- Upgradeable software via USB key
Alarms
- Engine alarms are activated when the relative measurement is out of range, and can be both displayed and on the audio output tone or voice alert message.
