Aluminium Profiles

Aluminum 6005 AT5 = aluminum + magnesium + silicon

Quenched and tempered.

The thermal cycle of welding affects the mechanical characteristics of the base metal which is usually in the quenched and tempered state; this loss is permanent for alloys of the 6000 family.

↓ TECHNICAL CHARACTERISTICS ↓

Equivalent 6061 T6

Breaking load: 28 - 30 kg / mm².

Yield point : 22 - 25 kg / mm².

Elongation : 10 - 12 %.

(Code: 50158)
Aluminium U profile 6082T6 40 x 36x 40mm
61.99 €
Anodized aluminum profiled U 6082 T6 40 x 36 x 40 mm, thickness 4 mm, interior 28 mm – one meter
(Code: 50157-3806)
flat profiled aluminum / 38 x 6,35mm
10.36 €
Aluminum flat 6082T6 for longeron 38 x 6.35 mm. Weight : 0.670 kg/m. Available on a 3.6 meters length.
(Code: 50100)

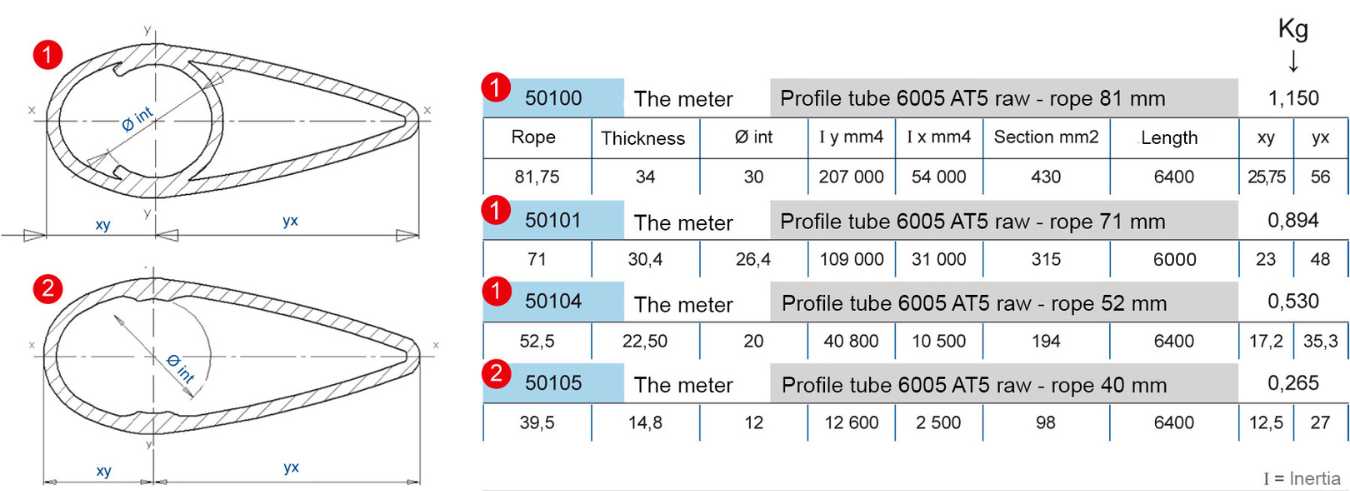

Profiled tube crude 6005 rope 81 mm
101.27 €
Aluminum profiled tube 6005 AT6 gross rope 81 mm for wing bracing. Weight per meter: 1.100 kg. Tube length: 6.40m – Price for a meter – Sheets are on your charge
(Code: 50105)
profiled tube crude corde 40 mm
34.02 €
Profiled aluminum tube 6005 AT5 gross rope 40 mm for fishtailing bracing or wing strut stayrod. Weight per meter: 0.265 kg – One meter – Tube length: 6.40 m
(Code: 50104)
profiled tube crude corde 52 mm
59.14 €
Aluminum profiled tube 6106 T6 gross rope 52 mm for wing bracing. Weight per meter: 0,530 kg. Tube length: 6.40m – Price for a meter – Sheets are on your charge
(Code: 50101-3)
Profiled tube crude corde 71 mm - lg: 3m
93.60 €
Aluminum profiled tube 6106 T6 gross rope 71 mm
(Code: 50101-6)
Profiled tube crude corde 71 mm - lg: 6 m
174.00 €
Aluminum profiled tube 6106 T6 gross rope 71 mm
