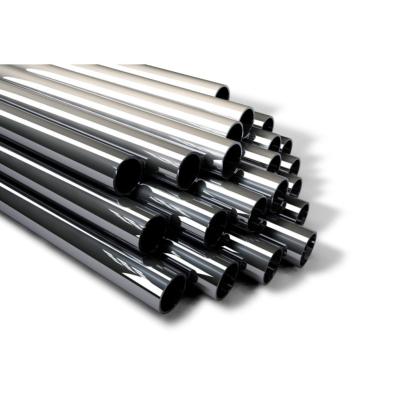

Aluminium tubes

ALUMINUM TUBES


References ø Exterior ø Interior Thickness Aloy Length
50132 10 8,4 0,8 7075 T6 4000
50106 10 8 1 6060 T6 6000
50129 12 10 1 6060 T5 6000
50133 12 10 1 2017 T3 4000
50107 13 10 1,5 2017 T3 6000
50136 18 16 1 2017 T3 5000
50128 20 17 1,5 6005 AT5 6000
50165 20 16 2 2017 T3 6000
50167 25 23 1 2017 T3 6000
50109 25 22 1,5 6005 AT6 6000
50112 28 24 2 6082 T6 6300
50114 28 25,2 1,4 6005 AT5 5200
50113 29 23 3 6005 AT5 4800
50166 30 26 2 2017 T4 6000
50124 32 29 1,5 6060 T6 6000
50115 36 33 1,5 6060 T6 6000
50126
38 35 1,5  6005 AT5 6000
50116 38  35  1,5  6005 AT6 6000

References
ø Exterior ø Interior Thickness
Alloy
Length
50170 40 36 2 6060 T6 6000
50168 16 14 1 6060 T5 6000
50142 44 41,5 1,25 2017 T3 3400
50169 45 42 1,5 6060 T6 6000
50143 47 44,4 1,3 2017 T3 4400
50127 48 45 1,5 6082 T6 6000
50163 50 46 2 6005 AT5 6000
50144 50,1 47,3 1,4 2017 T3 3300/4850
50118 52 48 2 6082 T6 4800
50146 60 58 1 2017 T3 3100
50147 60 54 3 2017 T3 3200
50120 64,6 60,6 2 6005 AT6 5100
50121 64,6 60,6 2 6005 AT5 4800
50164 80 74 3 2017 T4 6000
50171 40 30 5 6060 T6 6000

7075 T6 = Non-food

6060 T6 = Excellent anodization and weldability. Good bending properties. Average mechanical characteristics.

2017 T3 = Good mechanical characteristics. Most used in general mechanics. Difficult to weld and anodize.

6082 T6 = Aluminium for food use.

↓ TECHNICAL CHARACTERISTICS ↓

7075 T6

Elastic limit Rp 0,2 (MPa) : 485

Breaking limit Rm (MPa) : 540

Elongation : 8 %


↓ TECHNICAL CHARACTERISTICS ↓

7075 T6

Elastic limit Rp 0,2 (MPa) : 485

Breaking limit Rm (MPa) : 540

Elongation : 8 %


↓ TECHNICAL CHARACTERISTICS ↓

7075 T6

Elastic limit Rp 0,2 (MPa) : 485

Breaking limit Rm (MPa) : 540

Elongation : 8 %


↓ TECHNICAL CHARACTERISTICS ↓

6082 T6

Elastic limit Rp 0,2 (MPa) : 255

Breaking limit Rm (MPa) : 310

Elongation : 8 %

(Code: 50106)
Aluminum tube 6060 T6 - 10 x 1mm
10.52 €
Anodized aluminum tube 6060 T6 10 x 1 mm - sold by meter
(Code: 50107)
Aluminum tube 6005A T6 - 13 x 1,5mm
8.53 €
Anodized aluminum tube 13 x 1,5 mm - sold by meter
(Code: 50109)
Aluminum tube 6005 AT6 - 25 x 1,5mm
13.06 €
Aluminum tube 6005 AT6 - 25 x 1,5 anodized - sold by meter
(Code: 50112)
Aluminum tube 6082 T6 - 28 x 2mm
70.20 €
Aluminum tube 6082 T6 - 28 x 2 mm - sold by meter
(Code: 50113)
Aluminum tube 6005 AT5 - 29 x 3mm
15.44 €
Aluminum tube 29 x 3 mm painted in white RAL 9010 - sold by meter
(Code: 50116)
Aluminum tube 6005 AT6 38 x 1,5 mm
16.43 €
Anodized aluminum tube 6005 AT6 38 x 1,5 mm - sold by meter
(Code: 50118)
Aluminum tube 6082 T6 - 52 x 2 mm
44.45 €
Anodized aluminum tube 52 x 2 mm (tube of 4.56 m) sold by meter
(Code: 50120)
Anodized alu tube 6005 AT6 - 64.6x2mm
173.90 €
Anodized aluminum tube 6005 AT6 - 64.6 x 2 Tube of 5.10 m
(Code: 50121)
Aluminum tube 6005 AT5 - 64,6 x 2
195.58 €
White aluminum tube 6005 AT5 - 64.6 x 2 Tube of 4.80 m
(Code: 50124)
Untreated alu 6060 T6 - 32 x 1.5mm
12.85 €
Untreated aluminum 6060 T6 - 32 x 1.5 - sold by meter
(Code: 50126)
Aluminum tube 6005 AT5 - 38 x 1,5
10.81 €
Untreated aluminum tube 38 x 1,5 - sold by meter
(Code: 50127)
Aluminum tube 6082 T6 - 48 x 1,5mm
61.72 €
Anodized aluminum tube 48 x 1,5 - sold by meter
(Code: 50128)
Aluminum tube 6005 AT5 - 20 x 1,5mm
18.00 €
Aluminum tube 6005 AT5 - 20 x 1,5 - sold by meter
Available only in 1 meter
(Code: 50129)
Anodized alu tube 6060 T66 - 12 x 1mm
19.74 €
Anodized aluminum tube 12 x 1 - sold by meter
(Code: 50132)
Anodized alu tube 7075 T6-10x0,9mm
18.30 €
Anodized aluminum tube 7075 T6 - 10 x 0.9 - sold by meter Tubes' lenght: 5.20 m
(Code: 50133)
Untreated alu tube 2017 T3 - 12 x 1mm
26.04 €
Untreated aluminum tube 2017 T3 - 12 x 1 mm - sold by meter
(Code: 50136)
aluminum tube 2017 T3 18x1mm
30.26 €
Anodized aluminum tube 2017 T3 - 18 x 1 mm - per meter
(Code: 50142)
Aluminum tube 2017 T3- 44 x 1,25
180.00 €
Anodized aluminum tube 2017 T3 - 44 x 1.25 Tube of 3.40 m
(Code: 50143)
Aluminum tube 2017 T3 - 47 x 1.3
280.15 €
Anodized aluminum tube 2017 T3 - 47 x 1.3 - per meter
(Code: 50144)
Aluminum tube 2017 T3-50,1x1.4mm
352.16 €
Anodized aluminum tube 2017 T3 - 50,1 x 1.4- per meter (sold per tube of 3.30 meters or 4.85 meters)
(Code: 50146)
Aluminum tube 2017 T3 - 60x1
228.23 €
Anodized aluminum tube 2017 AT3 - 60 x 1 - per tube of 3.10 meter
(Code: 50147)
Aluminum tube 2017 T3 - 60x3mm
207.28 €
Anodized aluminum tube 2017 AT3 - 60 x 3 - per tube of 3.20 m
(Code: 50163)
Aluminum tube 6005 AT5 - 50 x 2mm
24.00 €
Anodized tube 6005 AT5 diameter 50 x 2 - sold by meter
(Code: 50164)
Aluminum tube 2017 T4 - 80 x 3mm
31.52 €
Untreated drawn aluminum tube 2017 T4 80 x 3 mm - sold by meter
(Code: 50165)
Aluminum tube 2017 T3 - 20 x 2mm
43.00 €
Untreated aluminum tube 2017 T3 - 20 x 2 - sold by meter
(Code: 50166)
Aluminum tube 2017 T3 - 30 x 2mm
72.86 €
Untreated aluminum tube 2017 T4 - 30 x 2 - sold by meter
(Code: 50167)
Untreated alu tube 2017 T3 - 25x1mm
74.81 €
Untreated aluminum tube 2017 T3 - 25 x 1 - per meter
(Code: 50168)
Aluminum tube 6060 T66 - 16 x 1mm
14.89 €
Untreated aluminum tube 6060 T5 - 16 x 1 - sold by meter
(Code: 50169)
Aluminum tube 6060 T6 - 45 x 1,5mm
14.22 €
Untreated aluminum tube 6060 T6 - 45 x 1,5 - sold by meter
