Aluminum rivets

ALUMINUM RIVETS ( AD )

ALUMINUM RIVETS ( AK )

OTHER RIVETS

ALUMINUM RIVETS

Standard 'POP' rivets 'IMEX' waterproof type

Rivet : Aluminium

Mandrin : Steel

Alloy 4,5 - 5,5 Mg

Following BS3L58

Melting temperature : 600°C

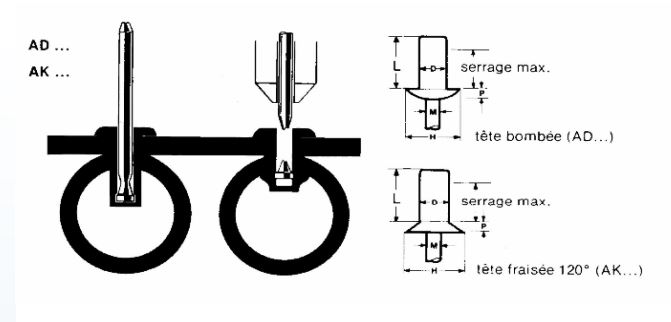

References	Code	D x L ⌀ Rivet x length mm	Max. thickness flat-head crimping	H diam. head	P Top of head	M diam. mandrel	Breaking loads per rivet in shear / tension		⌀ drilling
30237	AD 3206	3,2 x 6	2	6 mm	1,05 mm	1,63 mm	1070 N	1245 N	3,3
30232	AD 3208	3,2 x 8	3,5
30234	AD 3210	3,2 x 10	5,5
30262	AD 3212	3,2 x 12	8
30236	AD 4008	4 x 8	3,5	8 mm	1,45 mm	2,18 mm	1710 N	2240 N	4,1
30264	AD 4010	4 x 10	5
30230	AD 4012	4 x 12	8
30265	AD 4015	4 x 15	10,5
30231	AD 4808	4,8 x 8	3	9,5 mm	1,75 mm	2,64 mm	2230 N	3070 N	4,9
30233	AD 4810	4,8 x 10	5
30235	AD 4812	4,8 x 12	7
30266	AD 4814	4,8 x 14	9
30267	AD 4816	4,8 x 16	11
30288	AD 4818	4,8 x 18	13
30268	AD 4821	4,8 x 21	16
30269	AD 4825	4,8 x 25	20
30287	AD 6412	6,4 x 12	6	12 mm	2,5 mm	3,7 mm	3950 N	5000 N	6,5
30263	AD 6416	6,4 x 16	8	12 mm	2,5 mm	3,7 mm	3950 N	5000 N	6,5

References	Code	D x L ⌀ Rivet x length mm	Max. thickness flat-head crimping	H diam. head	P Top of head	M diam. mandrel	Breaking loads per rivet in shear / tension		⌀ drilling
30250	AK 3207	3,2 x 7	2	6 mm	1,05 mm	1,63 mm	1070 N	1245 N	3,3
30251	AK 3209	3,2 x 9	5
30253	AK 3212	3,2 x 12	8
30255	AK 4009	4 x 9	5	8 mm	1,45 mm	2,18 mm	1710 N	2240 N	4,1
30256	AK 4012	4 x 12	8
30257	AK 4014	4 x 14	10
30259	AK 4809	4,8 x 9	4	9,5 mm	1,75 mm	2,64 mm	2230 N	3070 N	4,9
30261	AK 4812	4,8 x 12	7
30272	AK 4814	4,8 x 14	9
30273	AK 4815	4,8 x 15	10
30274	AK 4819	4,8 x 19	14

POP GESIPA RIVETS

References	Dimensions
31865	Flat ø 2,4 x 6 mm
31866	Milled ø 3 x 6 mm

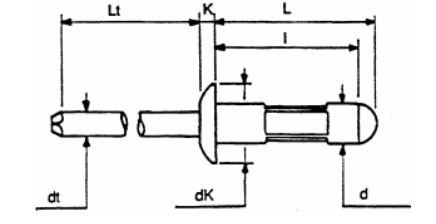

GESIPA ALUMINUM RIVETS

GESIPA rod-breaking rivets replace AVEX aluminum rivets, meeting a wide range of needs in terms of multi-clamping, rapid installation and consistent, reliable performance. GESIPA rivets replace AVEX in the construction of Colomban aircraft.

The characteristics of a GESIPA rivet are :

- Versatility
- Multi-tightening
- Stem locking after installation
- Pull-out resistance (tested and identical to AVEX)
- Aluminum or steel body
- Steel stem

Head	Diameter of the head	Clamping range
Flat	6,7	0,8 - 4,8
Countersunk	5,5	2,4 - 6,3

References	Dimensions
31868	Flat head ø 3.2 x 8 mm
31868-11	Flat head ø 3,2 x 8 mm
31869	120° countersunk ø 3.2 x 9.5 mm
31950-10	Flat head ø 4 x 10 mm (crimp 0.5 - 6.5)
31950-13	Flat head ø 4 x 13 mm (crimp 3.5 - 9.5)

POP rivet AD4012 4x12 (10 pieces)

(Code: 30230)

1.91 €

Aluminum rivets

ALUMINUM RIVETS

POP GESIPA RIVETS

GESIPA ALUMINUM RIVETS

POP rivet AD4012 4x12 (10 pieces)

POP rivet AD4808 4.8x8 (10 pieces)

POP rivet AD3208 3.2x8 (10 pieces)

POP rivet AD4810 4.8x10 (10 pieces)

POP rivet AD3210 3.2x10 (10 pieces)

POP rivet AD4812 4.8x12 (10 pieces)

POP rivet AD4008 4x8 (10 pieces)

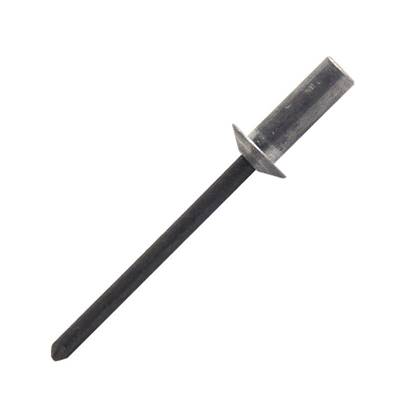

POP rivet AD3206 3.2x6 (10 pieces)

POP rivet AK3207 3.2x7 (10 pieces)

POP rivet AK3209 3.2x9 (10 pieces)

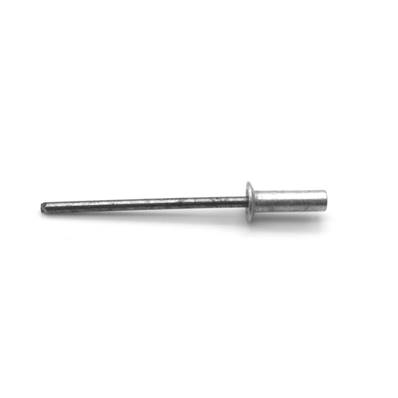

POP rivet AK48 TF 3.2x11 (10 pieces

POP rivet AK3212 3.2x12 (10 pieces)

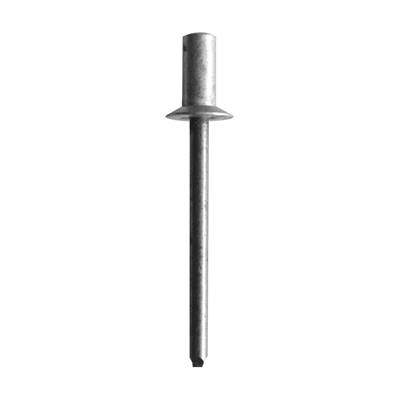

POP rivet AK54 4x7.9
