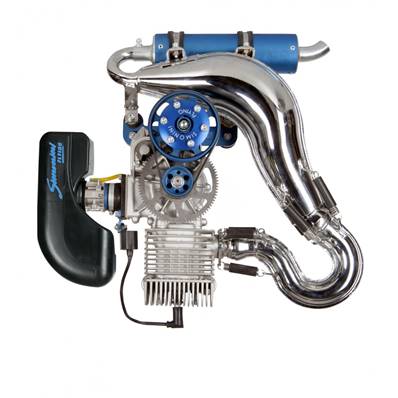

| (Code: 76003) Engine SIMONINI Mini 2 Plus, full including : the strap reducer Poly V with 250W electric starter, the WALBRO WB 37 carburetor and air filter, the exhaust pipe and 12V charge regulator. Type 2T single cylinder, air cooling system. Rotating direction counterclockwise seen from the side propeller cylindered 202 CC. Alloy cylinder treated with Nikasil. Speed x bore 58 mm x 66,4 mm. Compression ratio: 10,50 / 1 Performance 25 CV on 7500 lap/min. Lubrication fuel/oil 3% mixture. Fuel Euro 95 starter. IDM transducer. Carburetor with WALBRO WB 37 air filter. Electric ignition: Yes. Belt reduction Poly V 1/ 2,34 or 1/ 2,226 or 1/230 or 1/310. Full weight: 16 kg
|

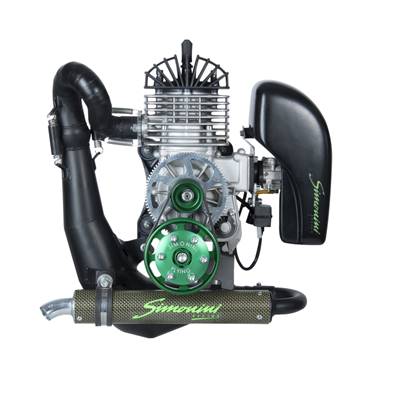

| (Code: 76005-EVO)   The last one of the Simonini range, the MINI2 EVO is more powerful than the MINI2 Plus for the same weight, it allows taking off a two-seater with more facility. Standardly delivered with the electric starter, exhaust pipe with noise killer, Walbro WB 37 carburetor, air filter, a reducer and 2 silent bloc kits (1 for the engine and 1 for the noise killer).Reloading the battery is possible (alternator). Type 2T single-cylinder, air cooling system, rotating direction counterclockwise seen on the side propeller. Cylindered 231 CC. Cylinder made with alloy treated with Nikasil. Speed x bore 60 mm x 70 mm. Compression ratio 10 / 1, performance 33 CV on 8000 lap/min. Lubrication: fuel / oil 3% mixture. Consumption: nearly 4l/h according to the power. Euro 95 fuel. Starter: IDM transducer Carburetor with air filter: Walbro WB37. Ignition: Electric. Exhaust pipe: yes. Reduction: Poly V belt. Possible reduction: 1:230 – 1:234 – 1:240 – 1:31 – Thrust: 90 kg with two-bladed propeller 130 cm – Full weight: 17 kg
|

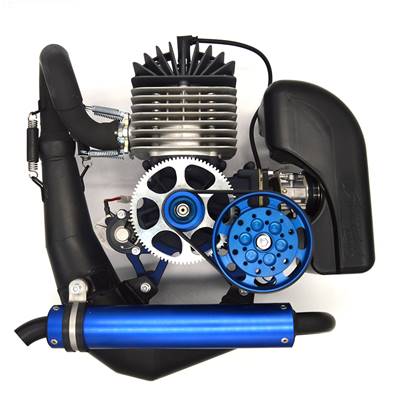

| (Code: 76005-H)   The last one of the Simonini range, the MINI2 EVO is more powerful than the MINI2 Plus for the same weight, it allows taking off a two-seater with more facility. Standardly delivered with the electric starter, exhaust pipe with noise killer, Walbro WB 37 carburetor, air filter, a reducer and 2 silent bloc kits (1 for the engine and 1 for the noise killer).Reloading the battery is possible (alternator). Type 2T single-cylinder, air cooling system, rotating direction counterclockwise seen on the side propeller. Cylindered 231 CC. Cylinder made with alloy treated with Nikasil. Speed x bore 60 mm x 70 mm. Compression ratio 10 / 1, performance 33 CV on 8000 lap/min. Lubrication: fuel / oil 3% mixture. Consumption: nearly 4l/h according to the power. Euro 95 fuel. Starter: IDM transducer Carburetor with air filter: Walbro WB37. Ignition: Electric. Exhaust pipe: yes. Reduction: Poly V belt. Possible reduction: 1:230 – 1:234 – 1:240 – 1:31 – Thrust: 90 kg with two-bladed propeller 130 cm – Full weight: 17 kg
|

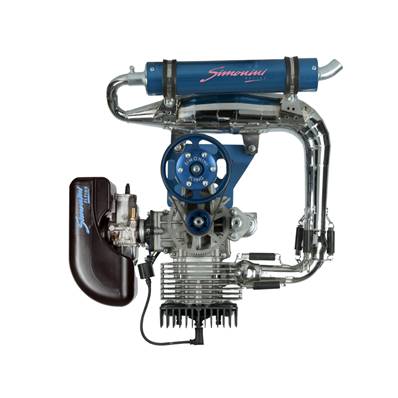

| (Code: 76012) MINI3 Simonini engine, including an exhaust pipe, the BING 36 carburetor, the air filter, the electric starter, and the 1/276 reducer. Type 2T, single cylinder, air cooling system. Rotating direction: counterclockwise seen from the propeller side. Cylindered 270 CC. Cylinder made with alloy treated with Nikasil. Speed x bore: 65 mm x 72,8 mm. Compression ratio: 10,50/1. Performance: 33 CV on 7000 lap/min. Lubrication. Fuel / oil 3% mixture, Euro 95 fuel. IDM transductor starter. Carburetor with Bing 36 air filter. Electric starter 12 V – 400w. Exhaust: Yes. Poly V 1/ 2,76 or 1/ 2,49 or 1/ 2,57 belt reducer. Full weight: 18 kg, packaged weight: 35 kg.
|

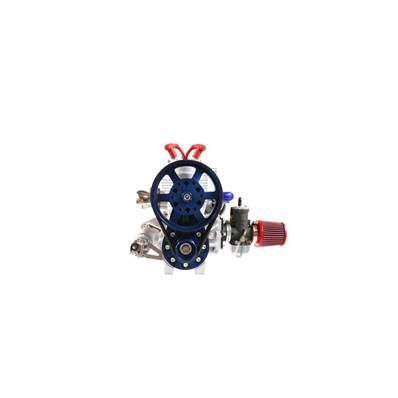

| (Code: 76013-SUPER) Victor 1 Super Simonini engine, including : the exhaust pipe, the carburetor, the air filter, the electric starter, and the reducer 1/ 1,268 or 1,284 or 1,30. Power: 44CV on 6200 lap/min. Type 2T single cylinder. Water cooling system. Rotating direction: counterclockwise seen from the propeller side. Cylindered 362 CC. Cylinder made with alloy treated with Nikasil. Speed x bore 72 mm x 80 mm. Compression ratio 9,50/1. Performance: 48CV on 6200 lap/min. Lubrication. Fuel/2% oil mixture, 95 Euro fuel. Double starter Ducati, carburetor with Bing 36 air filter. Electric starter 12V – 400W. Exhaust: Yes. Poly V 1/ 2,84 or 1/ 2,68 or 1/ 3,0 belt reducer. Full weight: 32 kg
|
| (Code: 76016) Mini 4 Plus Simonini engine including : the Poly V belt reducer with electric starter, the WALBRO WB 37 carburetor, the air filter and the exhaust pipe. Type 2T single-cylinder, air cooling system, rotating direction: counterclockwise seen from the propeller side. Cylindered 164 CC. Cylinder made with alloy treated with Nikasil. Speed x bore: 54,5 mm x 62 mm. Compression ratio: 11/1. Performance: 20 CV on 7200 lap/min. Lubrication: Fuel/3% oil mixture. Fuel: 95 Euro. Starter: IMD transductor. Carburetor with WALBRO WB37 air filter. Electric starter. Exhaust: Yes. Poly V 1/ 2,248 or 1/ 2,70 or 1/ 2,98. Full weight: 12kg
|
| | |
|
