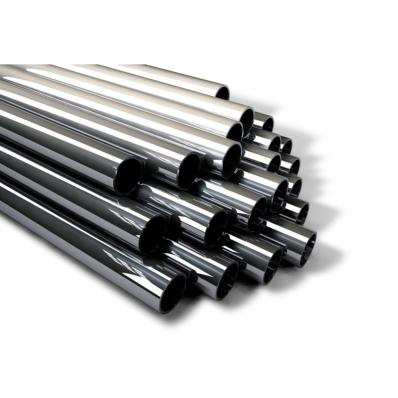

Steel pipes TU37

TUBES ACIER TU 37

References	ø Exterior	ø Interior	Thickness	Section mm2	Inertness mm4
51399	8	6	1	22	137
51400	10	8	1	28	290
51428	10	6	2	50	427
51401	12	10	1	35	527
51426	12	8	2	63	816
51402	14	12	1	41	867
51403	14	8	3	104	1684
51431	14	10	2	/	/
51404	16	14	1	47	1331
51432	16	13	1,5	68	1815
51405	18	16	1	53	1935
51406	18	15	1,5	78	2667
51427	18	14	2	100	3266
51408	20	18	1	60	2700
51420	20	17	1,5	87	3752
51421	20	14	3	160	5965

References	ø Exterior	ø Interior	Thickness	Section mm2	Inertness mm4
51422	20	10	5	236	7359
51410	22	20	1	66	3643
51433	22	18	2	126	6346
51411	25	23	1	75	5435
51412	25	22	1,5	111	7672
51413	25	21	2	144	9623
51414	25	20	2,5	177	11315
51415	25	19	3	207	12771
51416	28	26	1	85	7736
51417	28	25	1,5	125	10992
51418	30	28	1	91	9584
51423	30	25	2,5	216	20576
51419	32	29	1,5	232	25385
51424	35	33	1	107	15440
51429	40	35	2,5	294	51976

Quality alloy tube, seamless to NFA 49310 and cold drawn. The tolerance of the measurements makes the tubes not sliding.
The breaking load resistance is 42 kg / mm² minimum, it can be up to 45 kg / mm² depending on the tube dimensions and thickness.

These tubes are very suitable for welding. They can replace in certain cases the chromium / molybdenum steel or the 4130, by a slight surplus of weight with equal resistance, but at a much lower price or for the realization of prototype at lower cost.

↓ CARACTÉRISTIQUES TECHNIQUES ↓

Alliage : TU 37 BQ2 → ÉquivalentST 37

Charge de rupture : 420 N / mm² minimum

Limite élastique : 340 N / mm² minimum

Allongement : 23 %

Steel tube ST 37 - 8 x 1 mm

(Code: 51399)

24.37 €

Steel tube ST 37 - 8 x 1 mm - sold by meter
