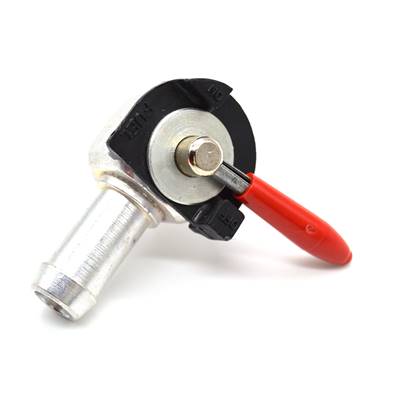

(Code: 70213-90) Tank valve bulkhead assembly. The rubber can be solded separately (Ref 70317)
|

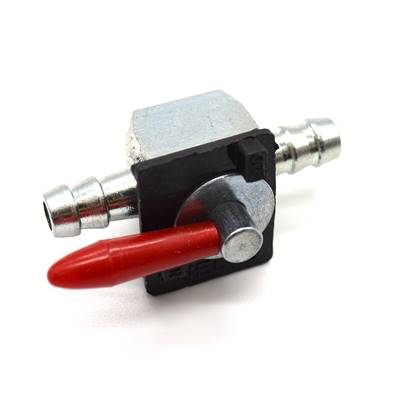

| (Code: 70223) Steel valve to settle between lines, very useful, in order to isolate tanks. 6 mm diameter, output interior diameter 5 mm. Weight: 45 gr
|

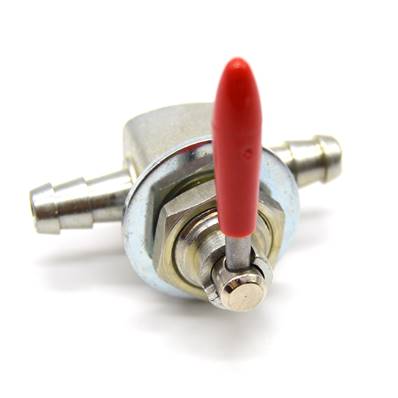

| (Code: 70224-0) Steel valve to settle between lines, very useful in order to isolate tanks. Can be fixed on walls. Fixation diameter: 14 mm. Diameter: 7mm - Output interior diameter: 5 mm – Weight: 62 gr
|
|

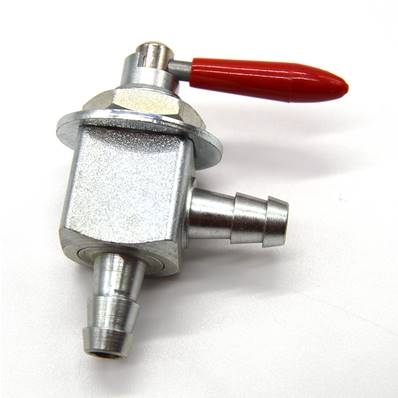

(Code: 70224-90) Steel valve to settle between lines, very useful in order to isolate tanks. Can be fixed on walls. Fixation diameter: 14 mm. Diameter: 7mm - Output interior diameter: 5 mm – Weight: 62 gr
|

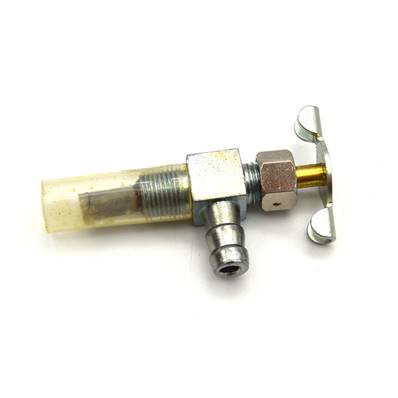

| (Code: 70227) Steel valve with filter to settle on the tank, very useful to isolate tanks. 1/ net and 6 mm output. Weight: 45 gr
|

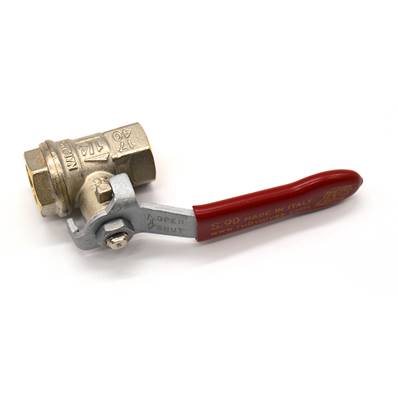

| (Code: 70239-2) Fuel valve 2 ways 1/4'
|
|

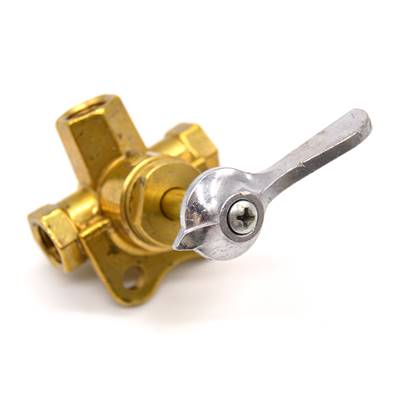

(Code: 70239-3) Fuel valve 3 ways 1/4' - Right, left and central position
|

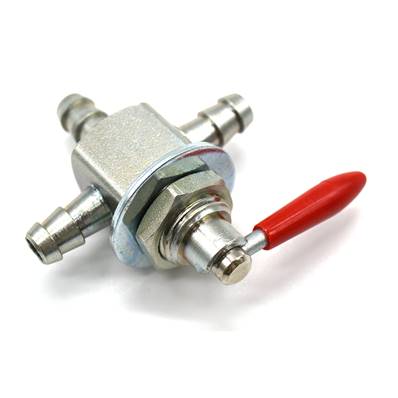

| (Code: 70243) Three ways valve, allow to connect 2 tanks and to choose one or the other, or to close both of them by putting the handle on the middle position. This valve can be mounted on a wall (14 mm diameter fixation drilling). Diameter is 6 mm and the output interior diameter is 5 mm. Weight: 65 gr – 3 ways – 3 positions (right, left, closed)
|

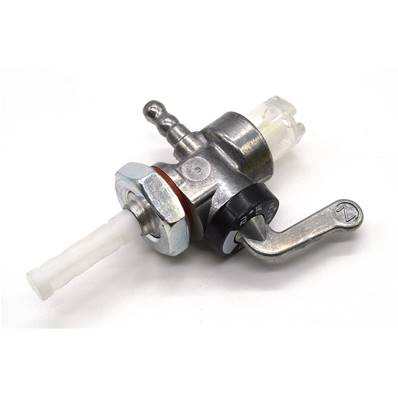

| (Code: 70269) Metal valve with filter on the tank to clean on the tank, really useful to isolate tanks. Net 14 x 1.5 mm and 6 mm output. Weight: 43 gr
|
|

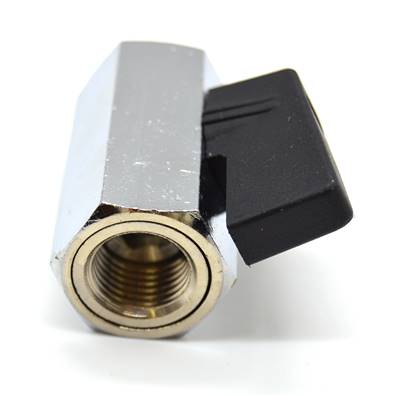

(Code: 70272) Nickel-plated brass valve to settle on line, ¼ female output allow to settle ¼’’ tips on a 8, 10, 12 or 14 mm tube, interior or not. You’ll find those tips on the page fuel circuits’ connectors. Weight: 93 gr
|
| (Code: 70289) Fuel 3 ways valve – 90 x 90 mm. Output diam 8 mm – Drilling diameter : 67 mm – Height under sheets: 70 mm – Weight: 190 g.
|

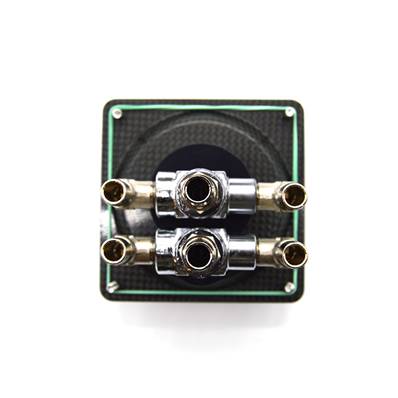

| (Code: 70289-I) Fuel 3 ways valve - 90 x 90 mm - For Rotax 912 iS motor
|
|

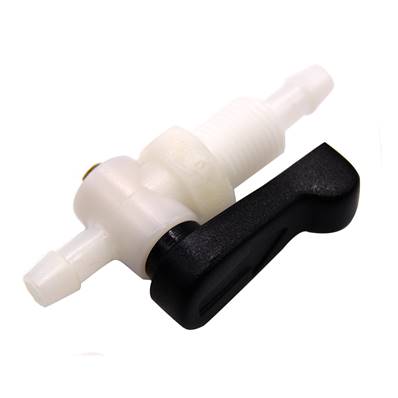

(Code: 70316) Plastic line valve 5 mm and 6 mm shoulder
|

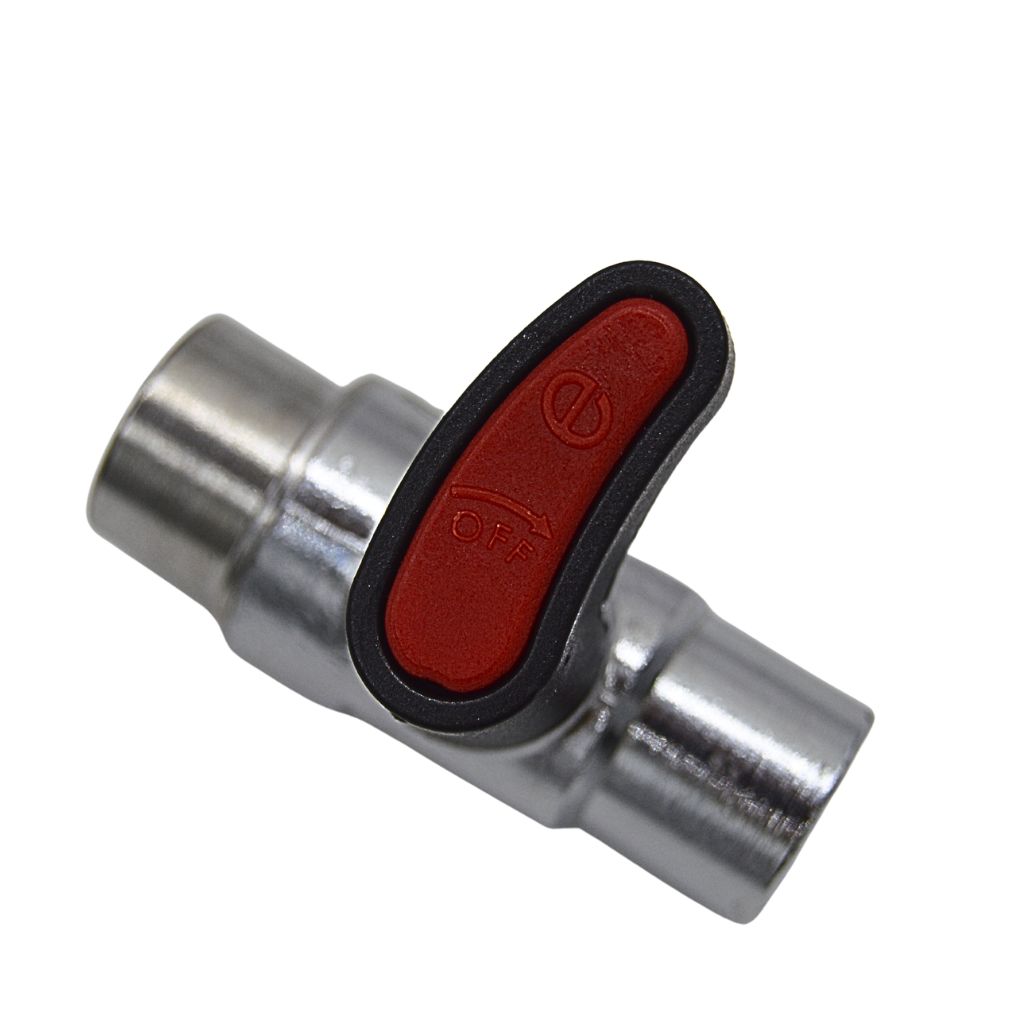

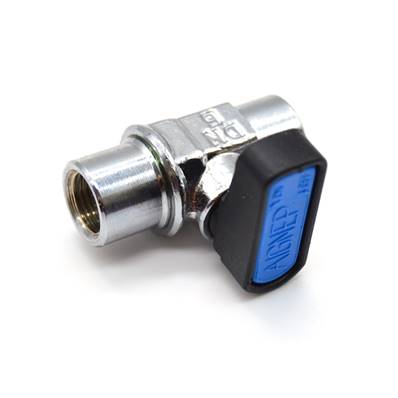

| (Code: 71205) Nickel plated brass valve to put on line, 1/8 female outputs allow to settle 1/8’’ tips for 6, 8, 10 mm tube. You’ll find those tips on page connectors fuel circuits. Weight: 74 gr
|

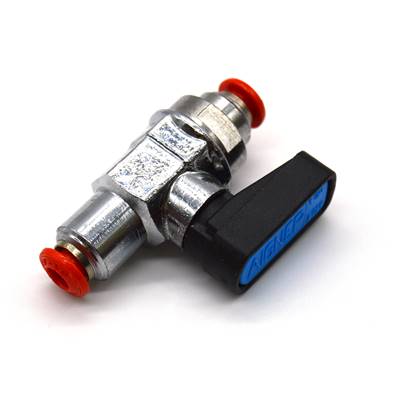

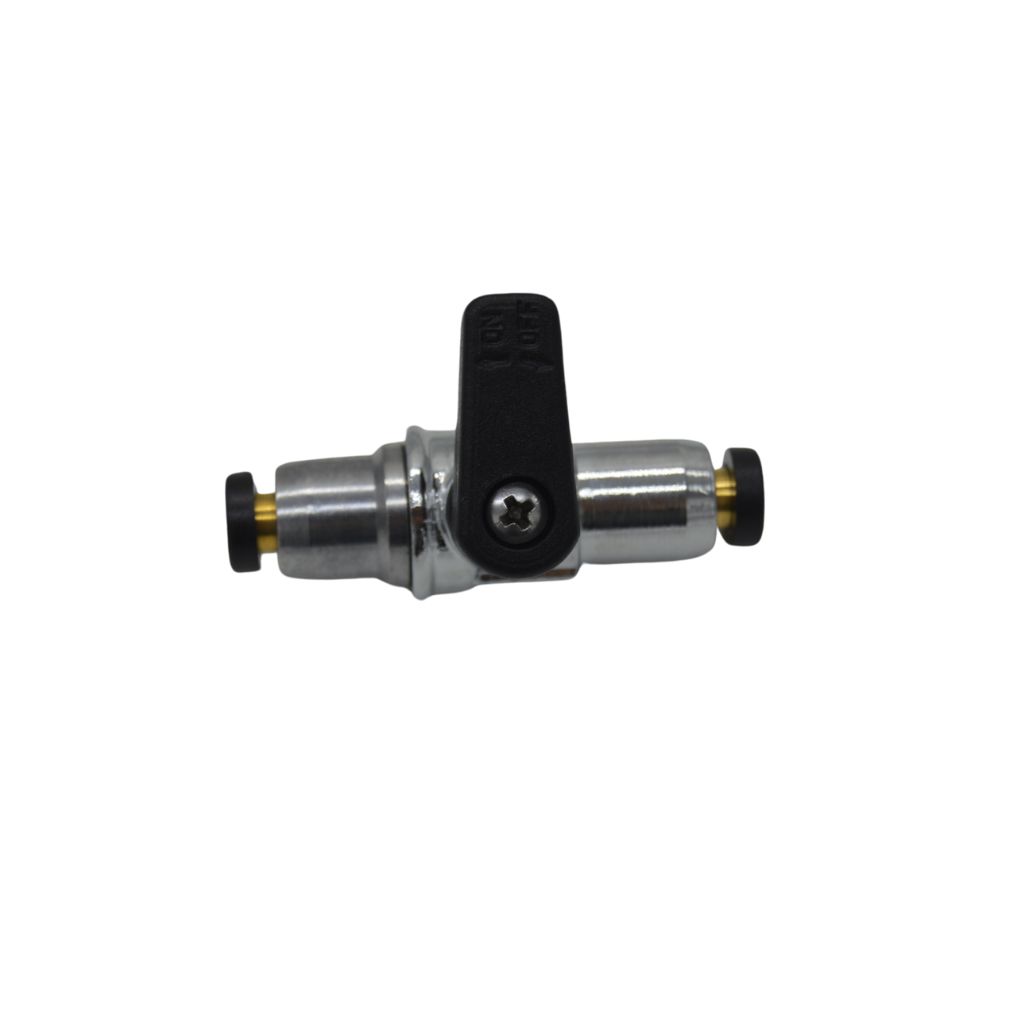

| (Code: 71206-4) Nickel plated brass valve to settle in line, female outputs for Rilsan 4 mm tube. Weight: 39 gr
|
|
(Code: 71206-6) Nickel plated brass valve to settle in line, female outputs for Rilsan 6 mm tube. Weight: 39 gr
|

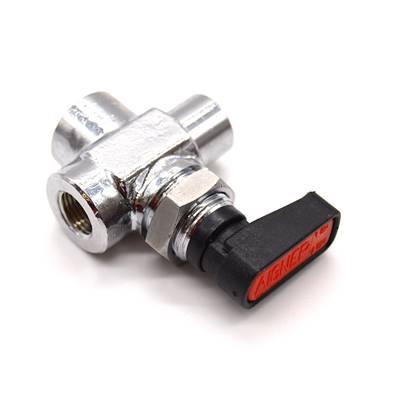

| (Code: 71207) 3 ways steel valve, allows to connect 2 tanks, to choose one or the other or close both putting the handle in the middle position. This valve can be mounted on a wall, fixation diam 14 mm. 1/8’’ outputs allowing to screw 6, 8 or 10 mm (sold separately) Highness: 50 mm Width: 35 mm
|
| |
